Product Name: FBI FAP30 Digital Portable Fingerprint Scanner for PC and Mobile Phone
Description:
FRT9300 is dual Fingerprint Scanner for PC ,mobile and tablet, with infrared optical sensor are designed to acquire not only flat single fingers but also two fingerprint images simultaneously, and USB interface for communication with Windows,Android operation system. Portable Fingerprint Scanner FRT9300‘s large optical capture area can meet most of the application needs, it can be used in wide variety of identity authentication system,voter registration, social statistics, telecom sim card registration and polls system.
INJES FRT9300 Digital Fingerprint Scanner adopt the most advance world-wide fingerprint collection algorithm,its image quality can meet international FBI FAP30 standards. Also, it owns the well-adapted ability to fit in various conditions with high recognition rate, whenever fingers are dry, wet or light textured. It is really an irreplaceable good choice for data registration and collection projects.
Features:
．Infrared optical sensor
．640*640 pixel large image size
．38*38 mm big fingerprint sensor size
．Meet FBI FAP30 standards
．No fingerprint residue
．Support source code language Java, C++ etc.
．Optional Micro USB port for Android Integration
．SDK customization on basis of clients’ requirements
．Compatible with Windows, Linux , Android OS
Specifications:
|
Fingerprint Sensor
|
Infrared Optical Sensor
|
|
Interface
|
Standard USB 2.0, optional Micro USB
|
|
Image Resolution
|
500DPI
|
|
Sensor Size
|
38*38mm
|
|
Image quality
|
Meet FBI FAP30 CJIS-RS-0010 IAFIS Image quality specification Appendix F
|
|
Image Size
|
640*640 PIXEL
|
|
Image Format
|
RAW,WSQ
|
|
Image Size
|
640*640 PIXEL
|
|
Compatible OS
|
Windows, Linux , Android
|
|
Gray scale
|
8 bit, 256
|
|
Gray level
|
255-255
|
|
Operating Humidity
|
0-95%
|
|
Operating Voltage
|
3.7-6.5VDC 100mA
|
|
Illumination
|
≤300lx
|
|
Gross Weight
|
0.6KG
|

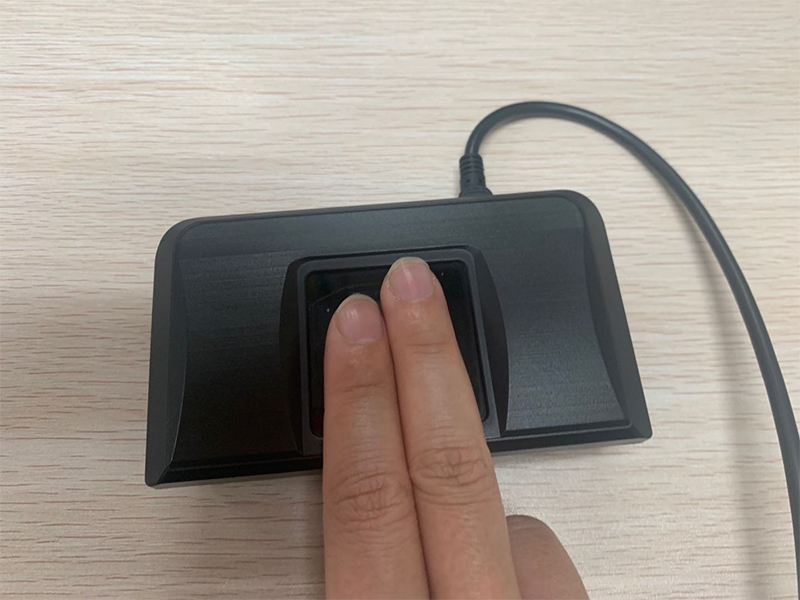

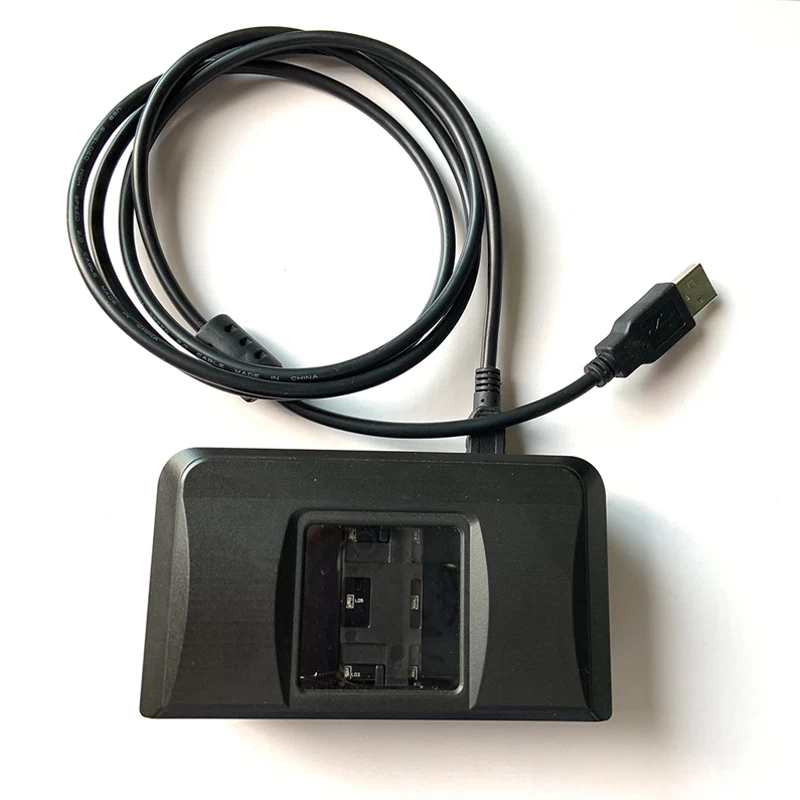

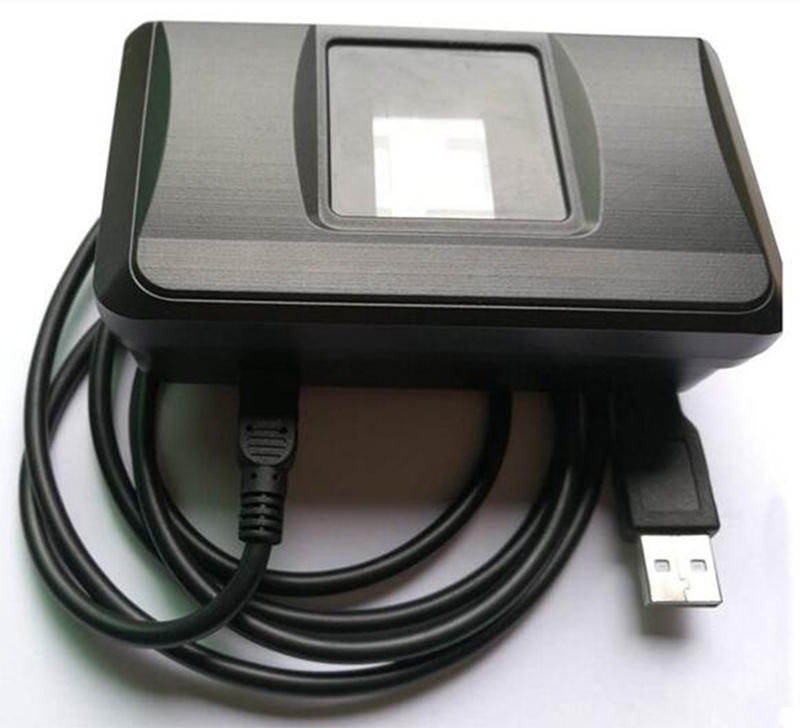

Details:
