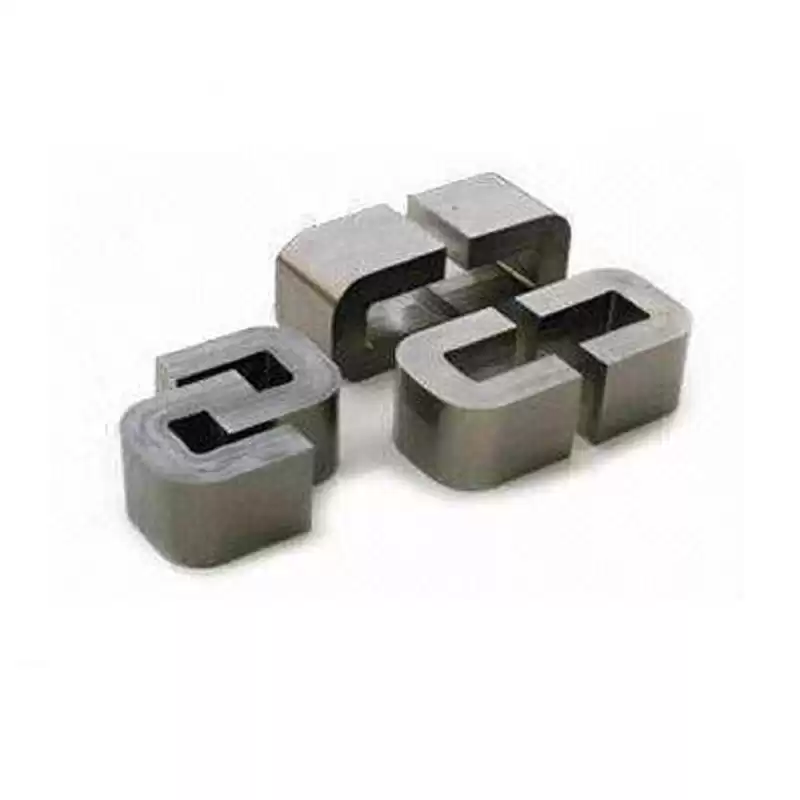

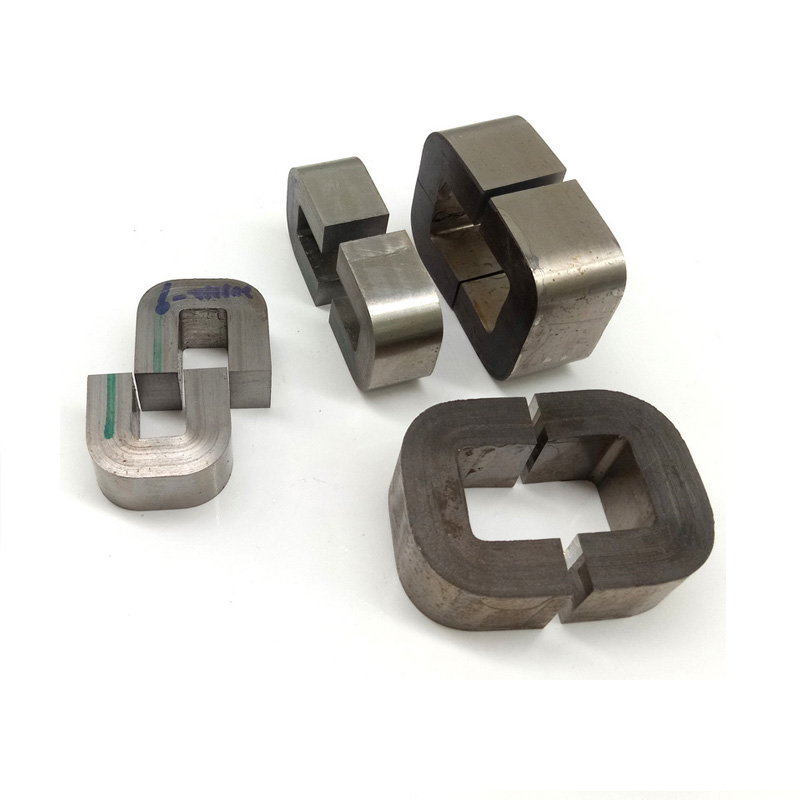

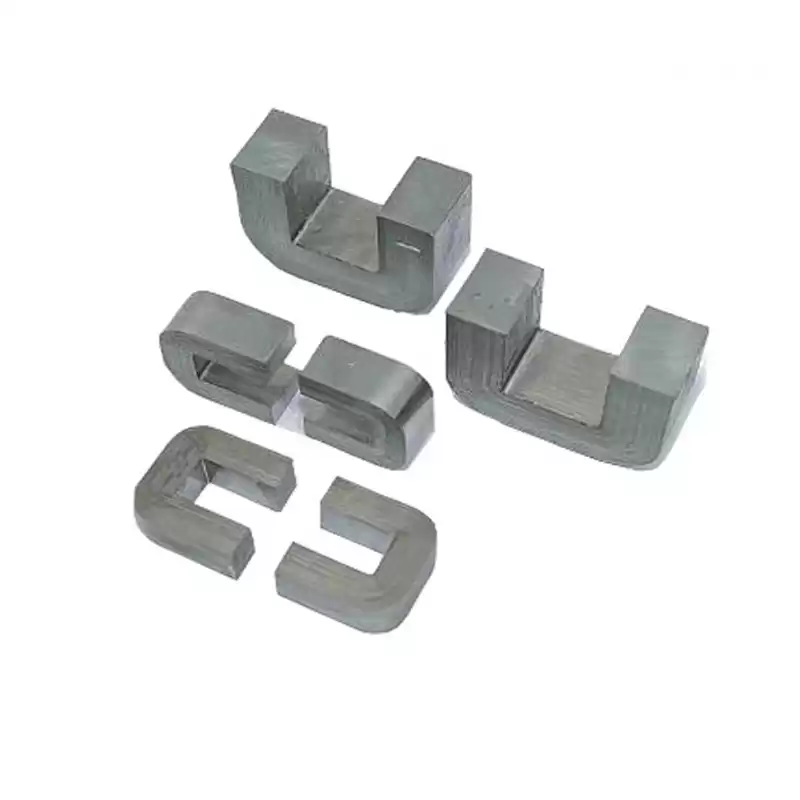

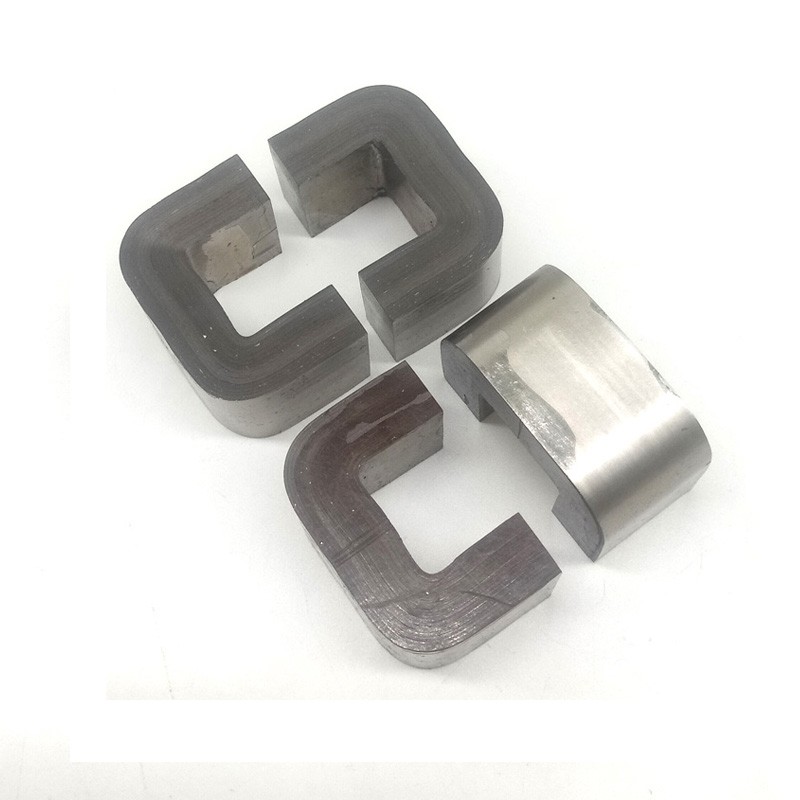

Key Properties:
-
High Saturation Flux Density - 1.56 T
-
Low Profile - enables weight and volume reductions of up to 50%
-
Low Temperature Rise - enabling smaller compact designs,working temperature -55°C~130°C.
-
Low Core Loss - resulting from micro-thin amorphous ribbon (20-30µm)
|
Loss Test
|
|
Magnetical Induction Density
|
B=0.037T
|
|
Frequency
|
f=16KHz
|
|
Test Equipment
|
2010SA AC Soft Magnetic Tester
|
|
Iron Loss
|
pFe “≤ 1.2 W/kg
|
|

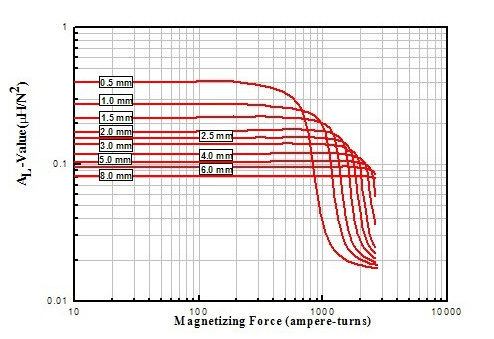

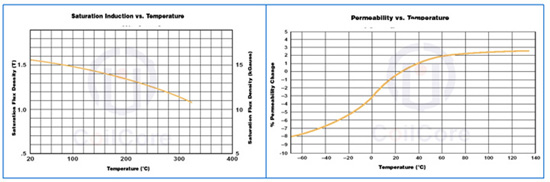

AL Test
|
|
|
|
Note:
|
|
1. Test of Iron loss and AL according to GB/T 19346-2003
|
|
2. Different permeability & inductance values can be gained by adjust air gap.
|
Product Specification:
Standard AMCC series covering from AMCC4 to AMCC1000, detailed List Download here.
Main Application:
-
UPS and SMPS Power Factor Correction Chokes
-
UPS Harmonic Filter Inductors
-
High-Power Outdoor Industrial Ballasts
-
Welding Power Supplies
-
High-Speed Rail Power Systems
-
Choke coil for DC/DC converter
-
Normal mode choke coil
-
Choke coil for adapter and battery charger
-
PFC choke coil
