Fe-base nanocrystalline alloy ribbon 1K107

Fe-base nanocrystalline alloy ribbon（main composition of Fe,Cu,Nb,Si,B）has low loss, high permeability. The excellent performance for current transformer,EMC/EMI,Invent transformer and so on.

Facebook Twitter Pinterest LinkedIn 分享

1.Alloys and the Specification

Fe-base nanocrystalline alloy ribbon（mainly composed of Fe、Cu、Nb、Si、B）is very low loss with high permeability. It provides excellent performance for current transformer、EMC/EMI、Invent transformer and so on.

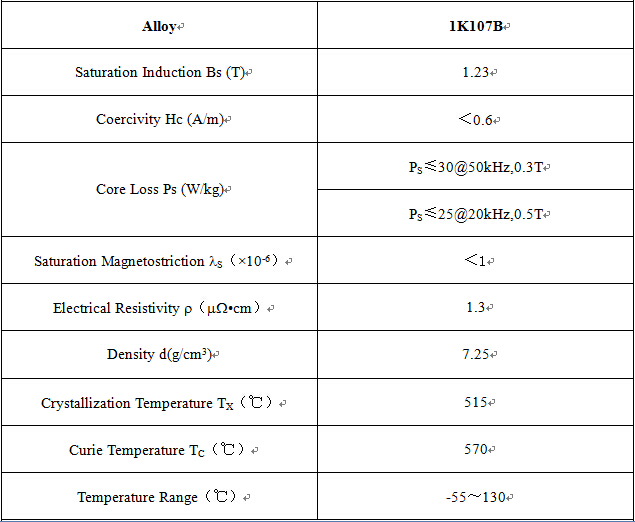

2.General Properties and Characteristics


3. Ribbon Dimensions and Lamination Factor

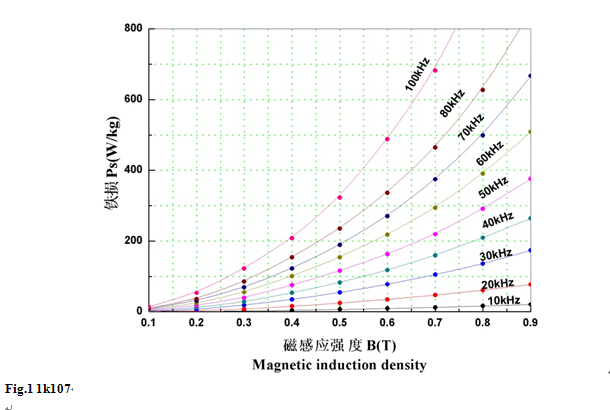

4.Typical Characteristic

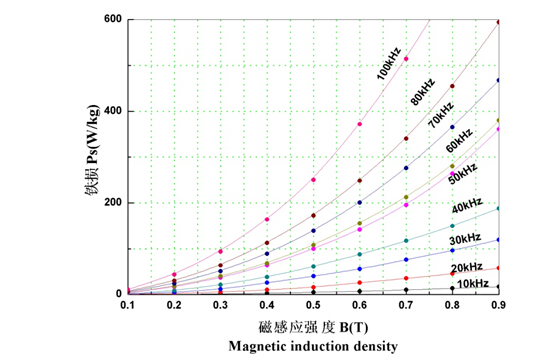

Fig.2 1k107B
