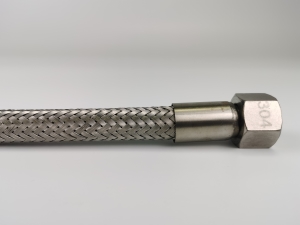

Feature Braided Flexible Metal Hose with threaded

Both ends of the flexible metal hose is connected with inside scrw thread, the connection mode is plane(type A), horn(type C) and sphere(type D).

Customized with buyer's specific design, such as I.D, O.D, Lenth, Connects, Material, Printed Tag, Package, etc.

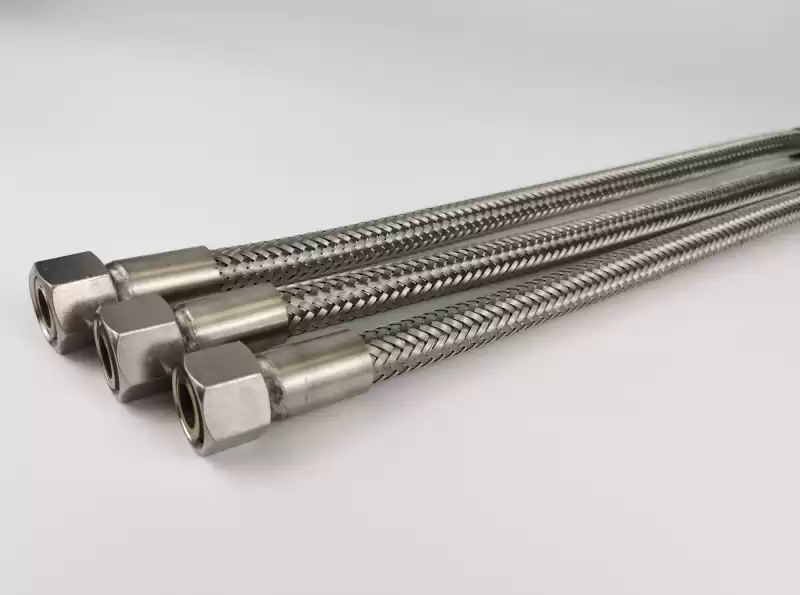

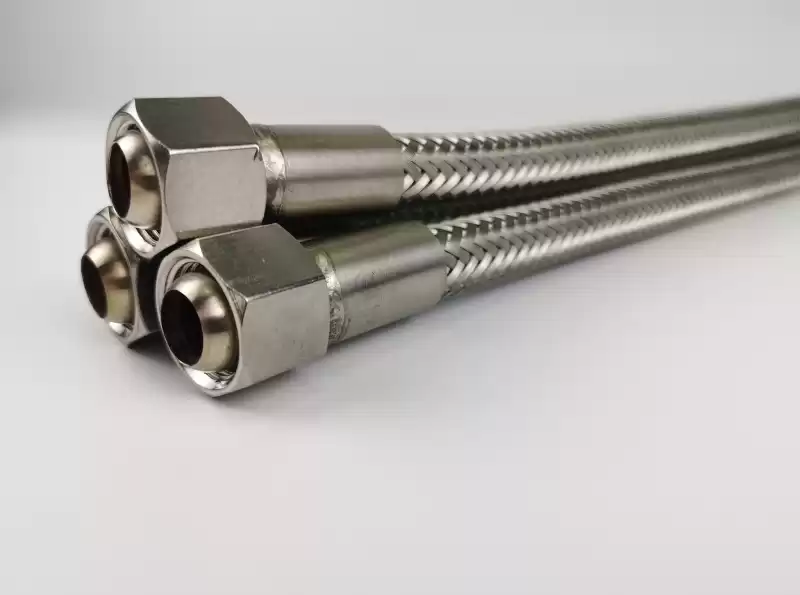

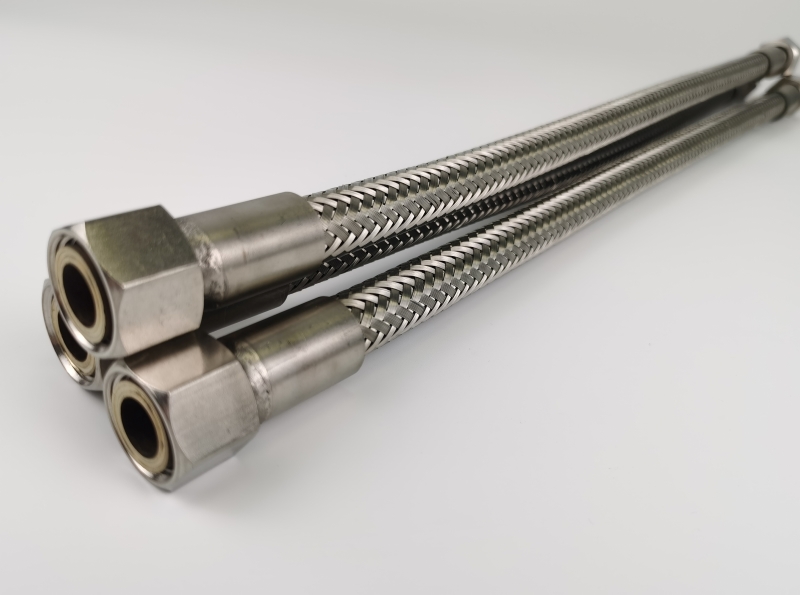

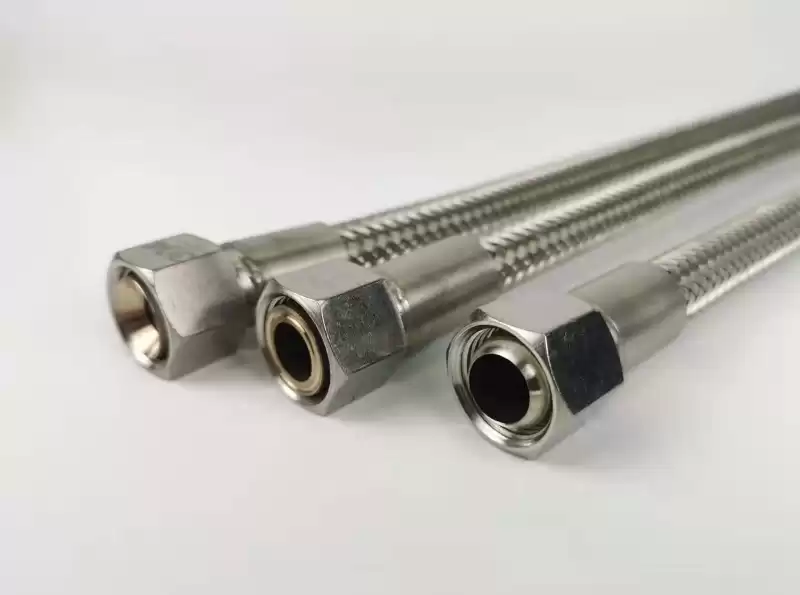

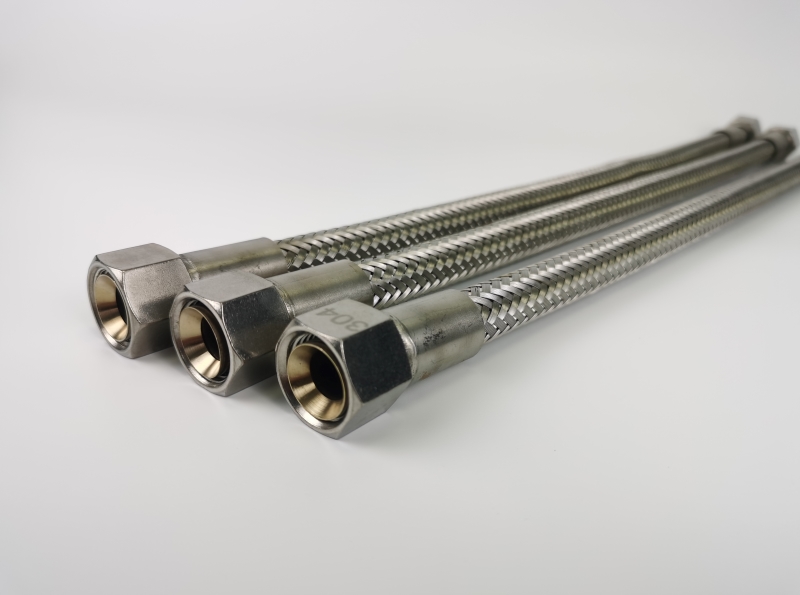

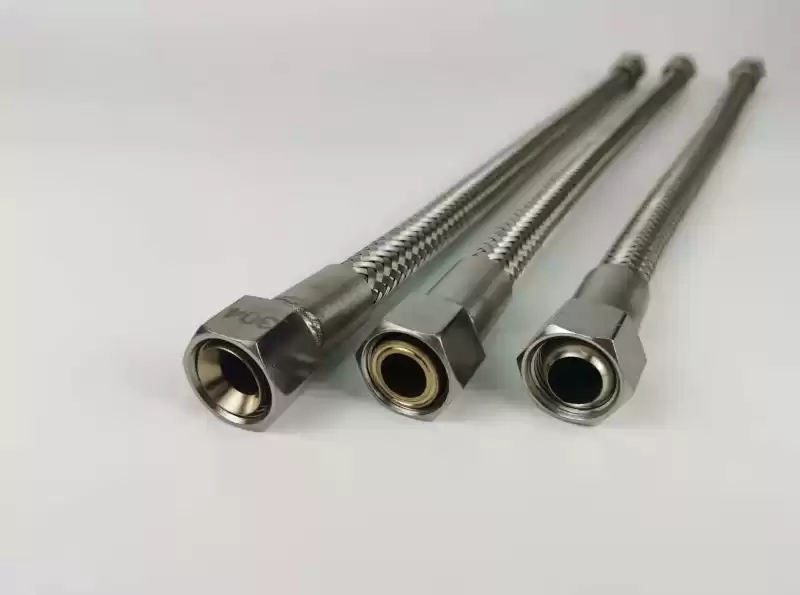

Braided Flexible Metal Hose with threaded


Braided Flexible metal hoses (also known as jacketed hoses) are indispensable flexibility hoses in industrial pipelines, with excellent flexible, corrosion resistance, high and low temperature resistance, acid and alkali resistance, majoy used in avariety of gas transmission, infusioon pipeline system and length, temperature, position and Angle czompensation system as a compensation element, sealing element, connection element and shock absorption element.

It is mainly composed of corrugated bellows, braided layers and joints. Its inner tube is a thin wall stainless steel bellows with spiral or annular waveform, bellows outer braided layers, are made of stainless steel wire or steel belt according to certain parameters woven. The joints or flanges at both ends of the hose shall match the joints or flanges of the customer's piping.


Construction of Flexible Metal Hose Assemblies:


Inner Core: Corrugated Stainless Steel

  • Flexible metal hose materials are available in 304, 321 and 316L stainless steel

  • annular corrugated/ spiral corrugated option available upon requirement

  • Stainless steel bellows formed into corrugations parallel to one another

Outer Core: Braided Stainless Steel Layers

  • Braided Flexible Metal Hose with single or double braided layers

  • The material of the layers are generally the same as that of the corrugated bellows, included 304, 321 and 316L stainless steel

  • The braided layers plays the role of strengthening and shielding



Advantages:

1. Suitable for all kinds of complex, bad indoor and outdoor environment

2. In contact with water, no oxidation stains are formed, which optically resemble corrosion

3. Qualified superior sealability

4. High pressure and high temperature, high temperature and low temperature resistant, corrosion resistant.


Feature's industrial flexible metal hose maintain the high quality of standard products, delivery on-time and non-standard custom long-term steady supply reliable qualified and stable supplier.

All proesses Certificated by ISO9001, all products 100% qualified before shipping.

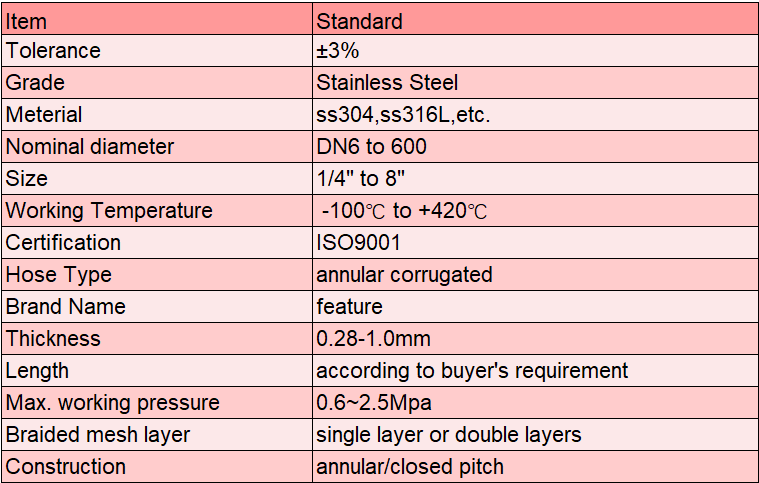

Product Standards:

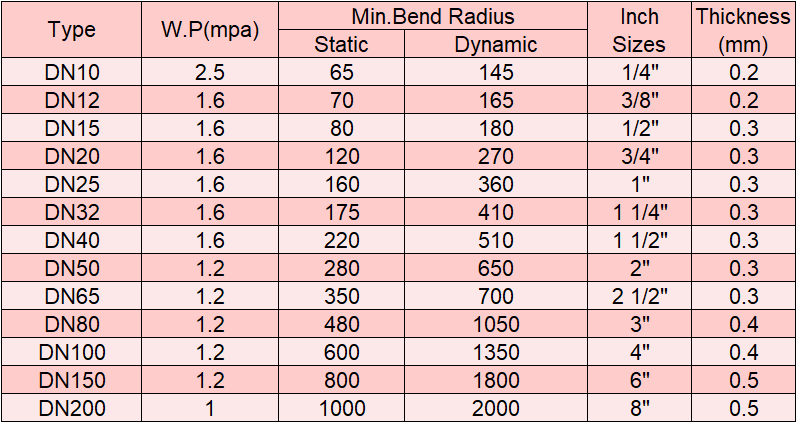

Flexible Metal Hose Performance Parameters As Below:



Custom Service

1.Costomized with specific design, such as I.D, O.D, Lenth, Connects, Material, Printed Tag, Package, etc.

2.OEM/ODM service can provide what you wanted and custom design printed to your specification.

3.Purchas a free sample order for test quality before place on full order.
