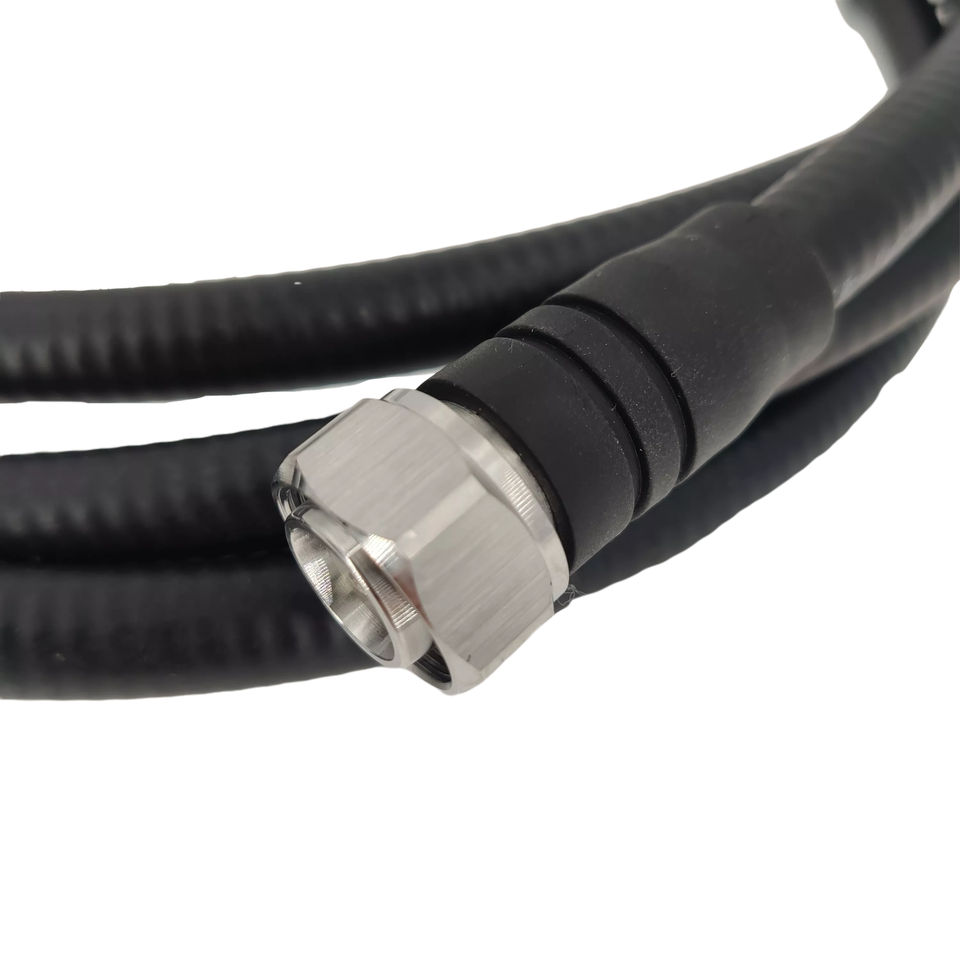

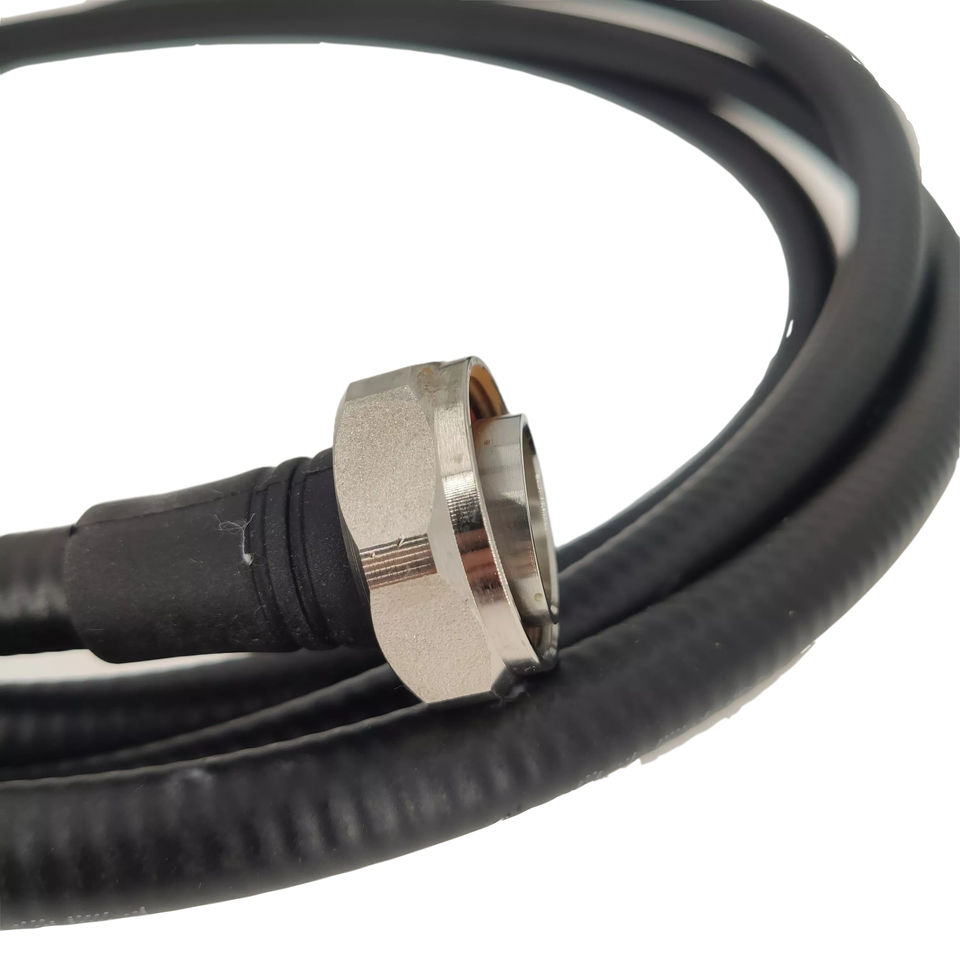

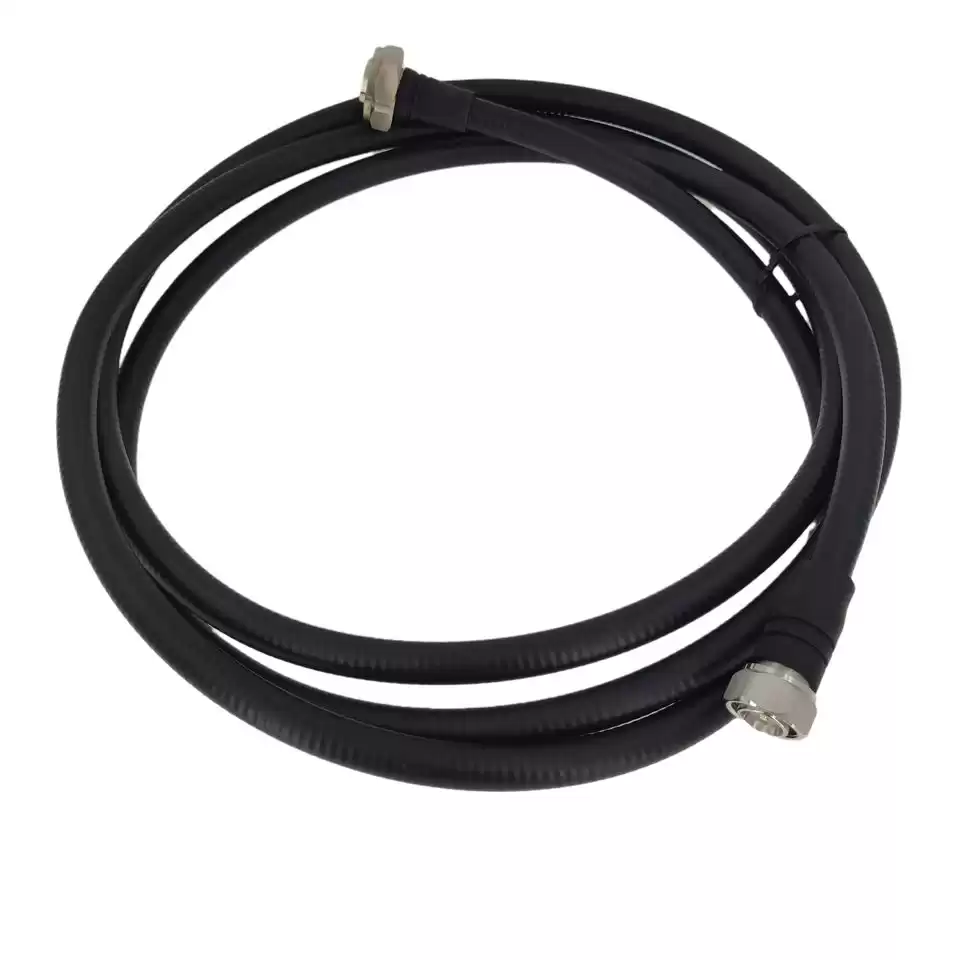

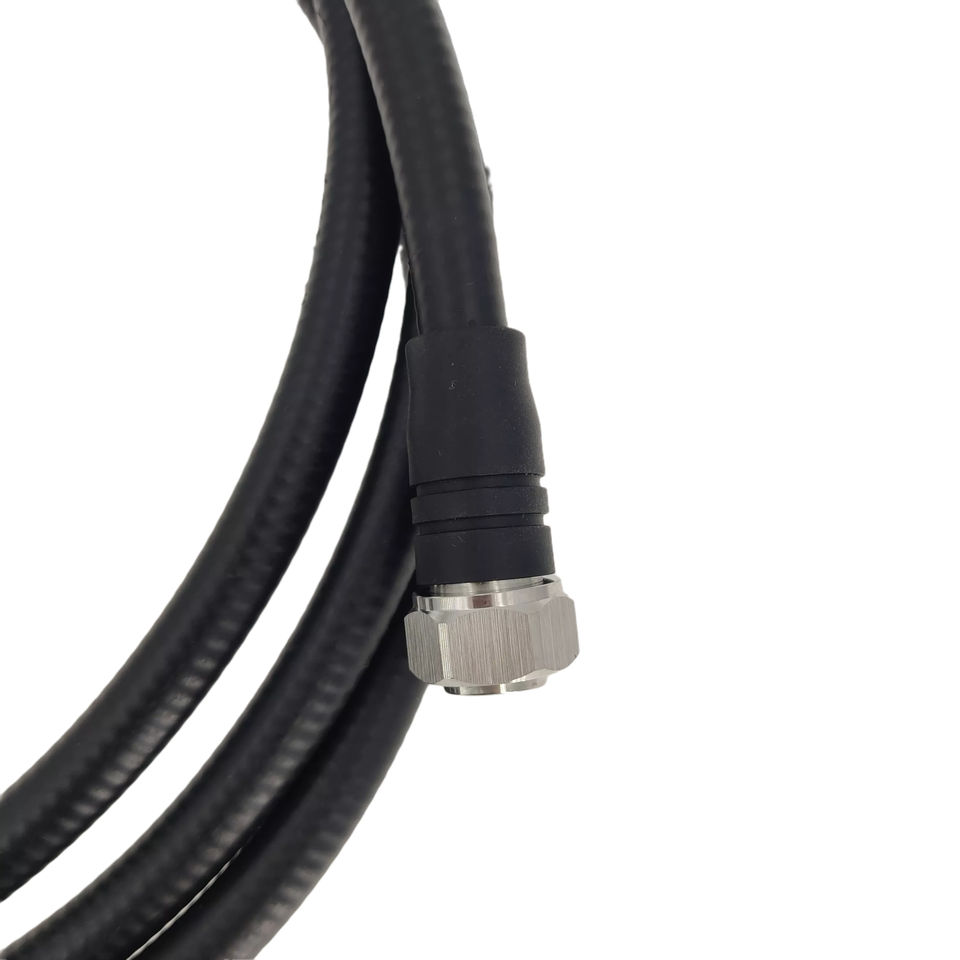

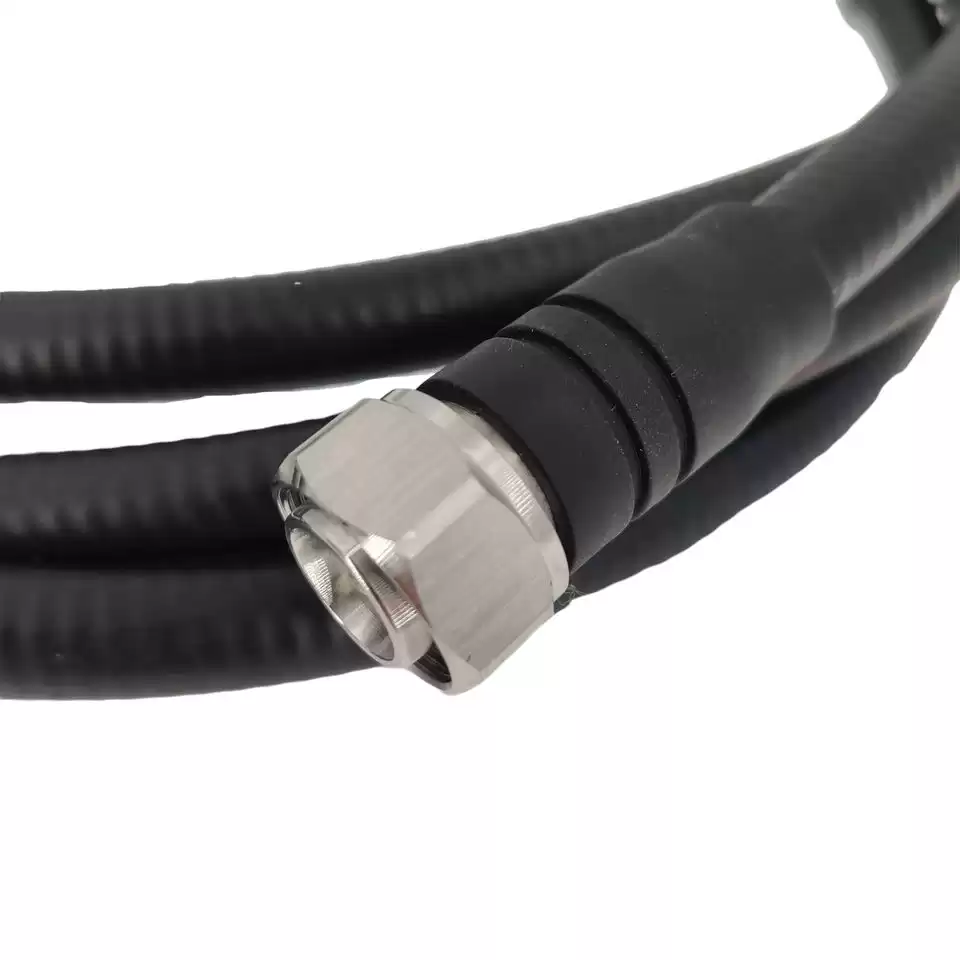

Feeder Cable Low PIM 2 Meters 1/2 Superflex 2M Jumper Cable with MINI DIN 4.3/10 Male to 7/16 Plug
Product Description
|
Product Name
|
Jumper Cable / Cable Assembly
|
|
Part number
|
CA-12SF-NMNM-2000
|
|
Impedance
|
50Ω
|
|
Connector
|
1.25
|
|
Cable
|
N-male to N-male
|
|
Frequency
|
DC-3GHz
|
|
Return loss
|
23dB
|
|
Insertion loss
|
0.6dB@3GHz
|
|
PIM
|
-160dBc@2×20W
|
|
Power handling
|
500W
|
|
DC breakdown voltage
|
2500V RMS
|
|
Length
|
2 meters
|
|
Packing
|
1pcs/bag
|
|
Operating temperature range
|
-30°C to +70°C
|
|
Storage temperature range
|
-40°C to +85°C
|
|
Relative humidity
|
5%- 95%
|
|
Barometric pressure
|
55KPa -106KPa
|
|
Weight
|
0.5kg
|
1 RF coaxial connector:
1.1 Material and Plating
Inner conductor: brass, plated with silver, Plating thickness: ≥0.003mm
Insulation dielectric: PTFE
Outer conductor: brass, plated with ternary alloy, Plating thickness≥0.002mm
1.2 Electrical & Mechanic Feature
Characteristics impedance: 50Ω
Frequency range: DC-3GHz
Dielectric strength: ≥2500V
Contact resistance: inner conductor≤1.0mΩ, Outer conductor≤0.4mΩ
Insulator resistance: ≥5000MΩ (500V DC)
VSWR: ≤1.15 (DC-3GHz)
PIM: ≤-155dBc@2x43dBm
Connector durability: ≥500 cycles
2 RF coaxial cable: 1/2” Super Flexible RF Cable
2.1 Material
Inner conductor: aluminum wire covered with copper (φ3.60mm)
Insulation dielectric: polyethylene foam (φ8.90mm)
Outer conductor: corrugated copper tube (φ12.20mm)
Product Details
Our Advantages
We have 1/2 Superflex 2M Jumper Cable for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
1/2 Superflex 2M Jumper Cable , like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
1/2 Superflex 2M Jumper Cable represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
