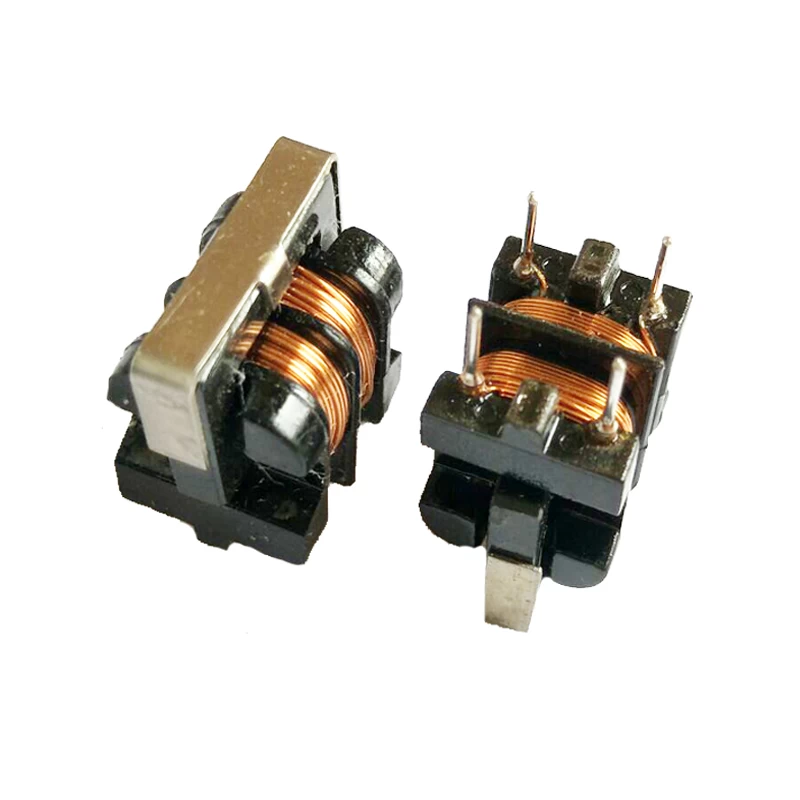

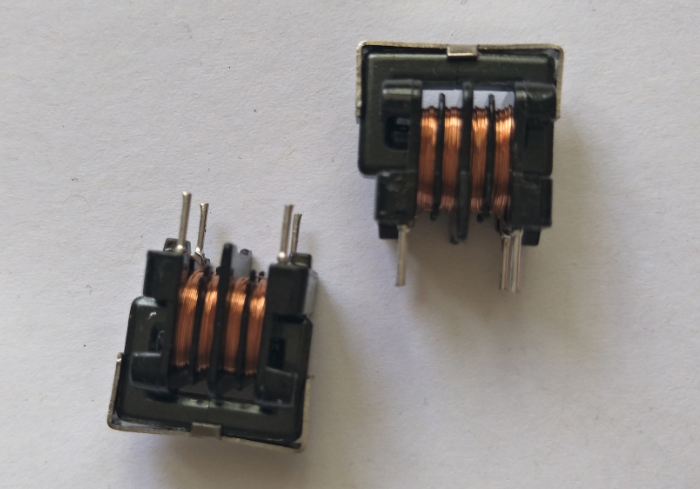

Ferrite Common Mode Choke Coils UU10 Filter Inductor

UU10 common mode filter inductor has light weight, wide frequency range, high reliability, eaasy to round, low profile in vertical core layout. Used for high frequency transformers.



UU10.5 common mode choke coils filter inductor has many applications, such as switching power supplies, communications equipments, household appliances, computers switching power supply, medical equipments, electronic components, lighting equipments. It has low cost,  light weight, wide frequency range, high reliability, easy to round, both a standard winding and a sectional winding for higher frequency noise is available.


UU10.5 line filter inductor mainly used in less demanding fields on the electromagnetic shielding power field. If you are looking for UU series common mode chokes, you can find it by different electrical parameters, such as inductance, rated current and DCR. We also can design as your requirements, you just offer us your specification or drawings.


Quick Details

Part No: MCTL10U Series Standard Winding

Brand name: MCT

Rated voltage:85~265VAC,50/60Hz

Custom made: Available

Insulation resistance:100MΩ @500VDC

Logo: Can be customized

Turns ratio:1:1±2%

Packing: Carton,can custom

Hi-pot: 2500VAC/1mA/60Sec

Certification: ISO9001,ROHS,CE

Testing frequency:1KHz/0.25V

OEM: Available

Operating temperature:-40°C~+105°C

Shipping: Air, Ship, etc

Operating frequency: 20 kHz-500 kHz

MOQ: Any quantity

Storage temperature: -25°C +85°C

Lead time: 25 days after payment


Part Information

Product Name: Ferrite Common Mode Choke Coils UU10 Filter Inductor

Applications: Switching power supply, Lighting equipment, Data transmission, Medical application equipment, Home appliance.
Packing Details: PP packing belt+Outer packing hard paper carton+inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.


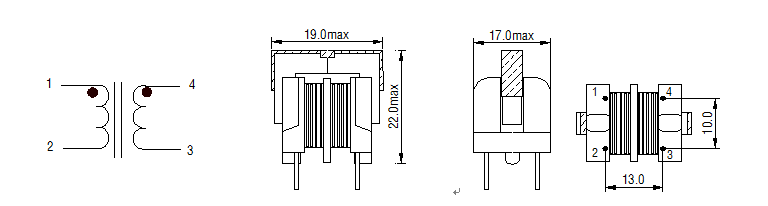

Product Specification

MCT Part No.

Inductance(mH) min

DC Resistance(Ω)max

Rated Current(A)

MCTL10U043A025

43.0

7.0

0.25

MCTL10U030A030

30.0

4.5

0.3

MCTL10U020A035

20.0

3.0

0.35

MCTL10U015A040

15.0

2.5

0.4

MCTL10U010A050

10.0

1.6

0.5

MCTL10U007A060

7.4

1.2

0.6

MCTL10U005A070

5.0

0.8

0.7

MCTL10U003A080

3.5

0.55

0.8

MCTL10U003A090

3.0

0.45

0.9

MCTL10U002A100

2.2

0.38

1.0

MCTL10U001A120

1.8

0.27

1.2

MCTL10U001A130

1.5

0.21

1.3

MCTL10U001A150

1.0

0.16

1.5


UU10 Line Filter Common Mode Choke Inductor

Different appreance is also customied designed by our engineers!

If you have any questions, please contact us or leaving your comments, we will give you fast reply.
