Hefei Mycoil Technology Co., LTD is professional drum core inductors manufacturer. All products we produced were double tested, also with advanced manufacturing process, we have our own quality control department, strict quality control links.
Quick Details
|
Place of Origin: Hefei,China(Mainland)
|
|
Custom Made: Available
|
|
Brand Name: MCT
|
|
PN: DIP Drum core inductor DR0406 series
|
|
Windings: Can be designed
|
|
Shipping: Air,Ship,etc
|
|
Certification: ISO9001,ROHS,CE
|
|
Packing: Carton,can custom
|
|
OEM: Available
|
|
Lead Time: 25 days after payment
|
|
Logo: Can be customized
|
|
MOQ: Any quantity
|
Part Information

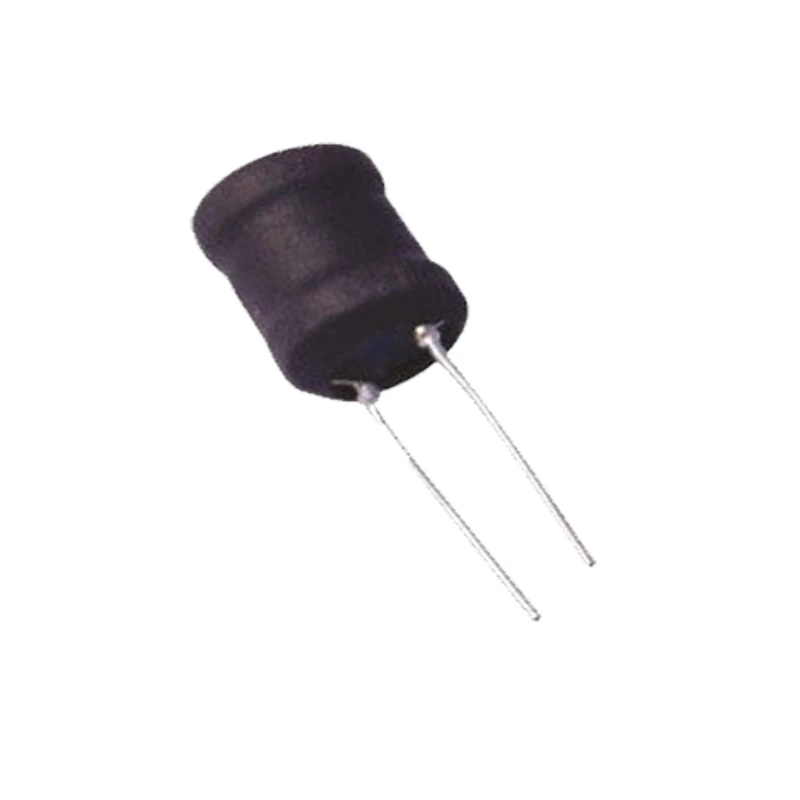

Product Name: Ferrite Core DIP Radial Leaded Power Filter Drum Coil Inductor DR0406
Applications: DC-DC converter, OA equipment, notebook computer, small size communication equipment, digital camera.
Advantages: low cost, high reliability, low DC resistance, high saturation current
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray (for long-term distance by air or sea transportation, protect the drum coil inductors in safe way)
Product Specification
|
Part Number
|
Inductance
|
L Test Condition
|
Min.Self-
resonant Frequency
|
MAX.DC
Resistance
|
Max.Rated
Current
|
|
Units
|
uH
|
Hz,V
|
MHZ
|
Ω
|
mA
|
|
Symbol
|
LOA
|
-
|
S.R.F
|
DCR
|
Ir
|
|
MCTD0406-391K
|
390±10%
|
1K,0.25
|
796 KHZ
|
2.7
|
220
|
|
MCTD0406-471K
|
470±10%
|
1K,0.25
|
796 KHZ
|
3.6
|
200
|
|
MCTD0406-561K
|
560±10%
|
1K,0.25
|
796 KHZ
|
4.2
|
190
|
|
MCTD0406-681K
|
680±10%
|
1K,0.25
|
796 KHZ
|
4.6
|
170
|
|
MCTD0406-821K
|
820±10%
|
1K,0.25
|
796 KHZ
|
5.7
|
155
|
|
MCTD0406-102K
|
1000±10%
|
1K,0.25
|
252 KHZ
|
6.7
|
150
|
|
MCTD0406-122K
|
1200±10%
|
1K,0.25
|
252 KHZ
|
8.2
|
140
|
|
MCTD0406-152K
|
1500±10%
|
1K,0.25
|
252 KHZ
|
13
|
120
|
|
MCTD0406-182K
|
1800±10%
|
1K,0.25
|
252 KHZ
|
15
|
110
|
|
MCTD0406-222K
|
2200±10%
|
1K,0.25
|
252 KHZ
|
17
|
100
|
|
MCTD0406-272K
|
2700±10%
|
1K,0.25
|
252 KHZ
|
19
|
90
|
|
MCTD0406-332K
|
3300±10%
|
1K,0.25
|
252 KHZ
|
26
|
83
|
|
MCTD0406-392K
|
3900±10%
|
1K,0.25
|
252 KHZ
|
30
|
76
|
|
MCTD0406-472K
|
4700±10%
|
1K,0.25
|
252 KHZ
|
45
|
70
|
|
MCTD0406-562K
|
5600±10%
|
1K,0.25
|
252 KHZ
|
48
|
62
|
|
MCTD0406-682K
|
6800±10%
|
1K,0.25
|
252 KHZ
|
56
|
56
|
|
MCTD0406-822K
|
8200±10%
|
1K,0.25
|
252 KHZ
|
62
|
52
|
|
MCTD0406-103K
|
10000±10%
|
1K,0.25
|
79.6 KHZ
|
72
|
47
|
|
MCTD0406-153K
|
15000±10%
|
1K,0.25
|
79.6 KHZ
|
120
|
35
|
|
MCTD0406-223K
|
22000±10%
|
1K,0.25
|
79.6 KHZ
|
160
|
24
|
|
MCTD0406-253K
|
25000±10%
|
1K,0.25
|
79.6 KHZ
|
180
|
20
|
|
Part Number
|
Inductance
|
L Test Condition
|
Min.Self-
resonant Frequency
|
MAX.DC
Resistance
|
Max.Rated
Current
|
|
Units
|
uH
|
Hz,V
|
MHZ
|
Ω
|
mA
|
|
Symbol
|
LOA
|
-
|
S.R.F
|
DCR
|
Ir
|
|
MCTD0406-391K
|
390±10%
|
1K,0.25
|
796 KHZ
|
2.7
|
220
|
|
MCTD0406-471K
|
470±10%
|
1K,0.25
|
796 KHZ
|
3.6
|
200
|
|
MCTD0406-561K
|
560±10%
|
1K,0.25
|
796 KHZ
|
4.2
|
190
|
|
MCTD0406-681K
|
680±10%
|
1K,0.25
|
796 KHZ
|
4.6
|
170
|
|
MCTD0406-821K
|
820±10%
|
1K,0.25
|
796 KHZ
|
5.7
|
155
|
|
MCTD0406-102K
|
1000±10%
|
1K,0.25
|
252 KHZ
|
6.7
|
150
|
|
MCTD0406-122K
|
1200±10%
|
1K,0.25
|
252 KHZ
|
8.2
|
140
|
|
MCTD0406-152K
|
1500±10%
|
1K,0.25
|
252 KHZ
|
13
|
120
|
|
MCTD0406-182K
|
1800±10%
|
1K,0.25
|
252 KHZ
|
15
|
110
|
|
MCTD0406-222K
|
2200±10%
|
1K,0.25
|
252 KHZ
|
17
|
100
|
|
MCTD0406-272K
|
2700±10%
|
1K,0.25
|
252 KHZ
|
19
|
90
|
|
MCTD0406-332K
|
3300±10%
|
1K,0.25
|
252 KHZ
|
26
|
83
|
|
MCTD0406-392K
|
3900±10%
|
1K,0.25
|
252 KHZ
|
30
|
76
|
|
MCTD0406-472K
|
4700±10%
|
1K,0.25
|
252 KHZ
|
45
|
70
|
|
MCTD0406-562K
|
5600±10%
|
1K,0.25
|
252 KHZ
|
48
|
62
|
|
MCTD0406-682K
|
6800±10%
|
1K,0.25
|
252 KHZ
|
56
|
56
|
|
MCTD0406-822K
|
8200±10%
|
1K,0.25
|
252 KHZ
|
62
|
52
|
|
MCTD0406-103K
|
10000±10%
|
1K,0.25
|
79.6 KHZ
|
72
|
47
|
|
MCTD0406-153K
|
15000±10%
|
1K,0.25
|
79.6 KHZ
|
120
|
35
|
|
MCTD0406-223K
|
22000±10%
|
1K,0.25
|
79.6 KHZ
|
160
|
24
|
|
MCTD0406-253K
|
25000±10%
|
1K,0.25
|
79.6 KHZ
|
180
|
20
|
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
