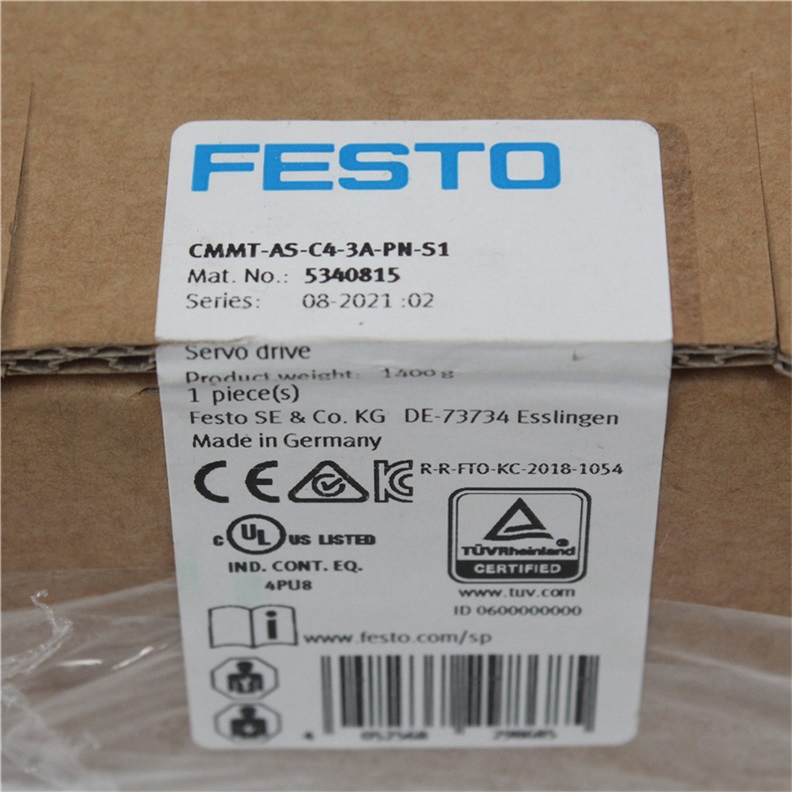

FESTO CMMT-AS-C4-3A-PN-S1 Driver

Technical Data

• Type of mountingMounting plate, attached with screws
• Mounting positionFree convection Vertical
• Product weight1400 g
• DisplayGreen/yellow/red LED
• Operator controlsOptional: CDSB operator unit
•
• Conforms to standardEN 61800-3 EN 61800-5-1 EN 61800-5-2 EN ISO 13849-1
• Based on standardEN 50581 EN 60204-1 EN 61508-1 EN 61508-2 EN 61508-3 EN 61508-4 EN 61508-5 EN 61508-6 EN 61508-7 EN 61800-2 EN 62061
• ApprovalRCM trademark German Technical Control Board (TÜV) c UL us listed (OL)
• KC markKC-EMV
• CE mark (see declaration of conformity)To EU EMC Directive To EC Machinery Directive In accordance with EU RoHS Directive
• CE marking (see declaration of conformity)To UK instructions for EMC To UK regulations for machines To UK RoHS instructions
• Certificate issuing authorityGerman Technical Control Board (TÜV) Rheinland 01/205/5640.00/18 TÜV Rheinland UK Ltd. 01/205U/5640.00/22 UL E331130
• Storage temperature-25 °C ... 55 °C
• Ambient temperature0 °C ... 50 °C
• Note on ambient temperaturePower must be reduced by 3% per °C at ambient temperatures above 40°C.
• UL ambient temperature0 °C ... 40 °C
• Relative air humidity5 - 90% Non-condensing
• Max. installation height2000 m
• Note on max. installation heightFrom 1000 m: power reduction by 1% per 100 m.
• Degree of protectionIP20
• Protection classI
• Overvoltage categoryIII
• Pollution degree2
• Immunity to surge6 kV
• Note on materialsRoHS-compliant
• LABS (PWIS) conformityVDMA24364 zone III
• Phases of nominal operating voltageSingle-phase
• Nominal operating voltage AC230 V
• Permissible voltage fluctuations-20 % / +15 %
• Input voltage range AC100 V ... 230 V
• Mains frequency48 Hz ... 62 Hz
• Nominal current, load supply5.6 A
• Peak current load power supply16.8 A
• Active PFCno
• Mains filterIntegrated
• System voltage to EN 61800-5-1300 V
• Max. short circuit current rating of the mains100 kA
• Mains typesTT TN IT
• Nominal voltage load voltage DC320 V
• Permissible range for load power supply-20%/+15%
• Max. intermediate circuit voltage DC395 V
• Brake resistor, integrated100 Ohm
• Pulse power, brake resistance1.6 kVA
• Pulse energy for braking resistor230 Ws
• Nominal power braking resistor (IEC)23 W
• Brake resistor, external67 Ohm ... 100 Ohm
• Max. continuous output of the external braking resistor (IEC)350 W
• Nominal voltage for logic power supply DC24 V
• Permissible range for logic voltage± 20 %
• Current consumption of logic power supply without clamping brake0.5 A
• Current consumption for logic supply with parking brake1.5 A
• Max. current consumption, logic power supply with clamping brake and I/O2.3 A
• Output voltage class AC3x (0 – input) V
• Nominal current per phase, effective4 A
• Peak current per phase, effective12 A
• Max. peak current duration2 s
• Controller nominal output700 VA
• Maximum output2000 VA
• Output frequency0 Hz ... 599 Hz
• Max. length of motor cable without external mains filter25 m
• Max. output current of holding brake1 A
• Max. voltage drop from logic supply to brake output0.8 V
•
