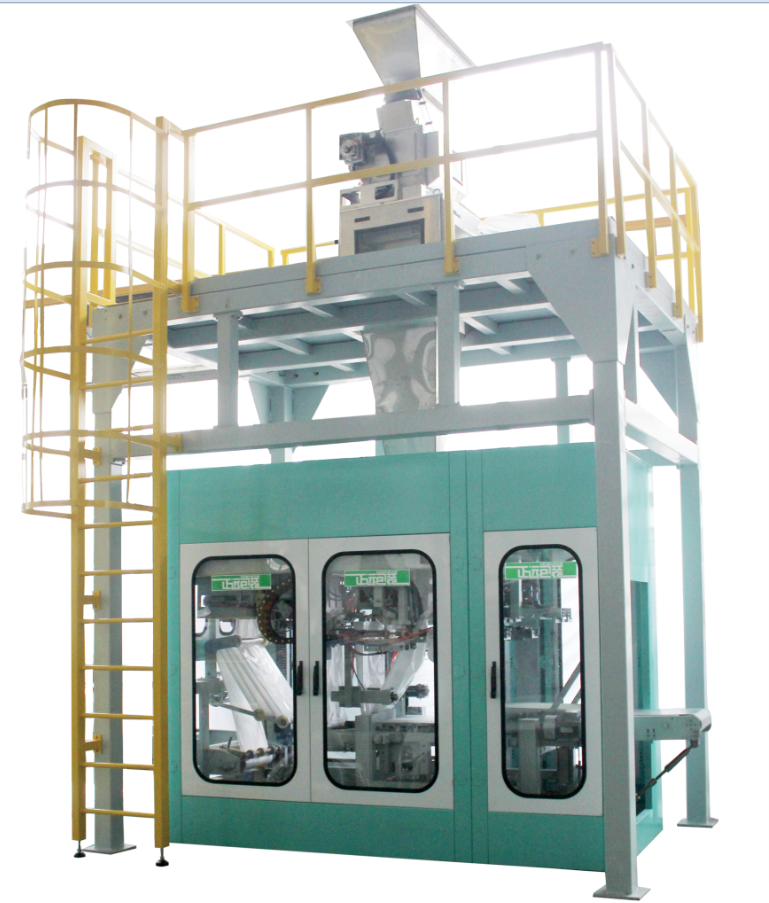

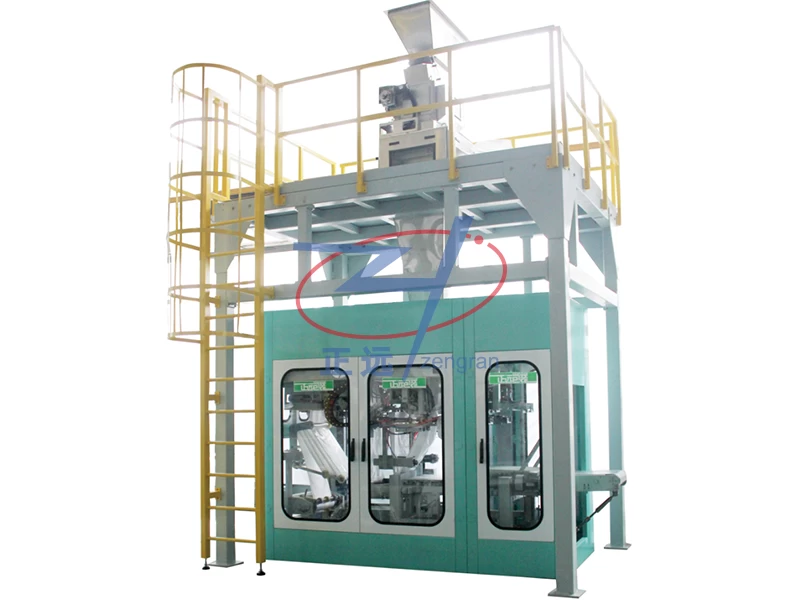

FFS Heavy duty film packing machine

FFS: Form → Filling → Sealing. FFS heavy-duty film packaging machine is our newly developed product for packaging of petrochemical, plastic particles, feed and other industries.The FFS film tube is fed into the filling machine, the bag is base-sealed and cut, formed and filled, and then top sealed. For palletised goods, the modern FFS system is growing and offers cost saving by high output in automatic filling. It is a flexible system with high print quality.



FFS Automatic Heavy-duty packaging machine

FFS Automatic Heavy-duty packaging machine



Introduction:

FFS: Form → Filling → Sealing. FFS heavy-duty film packaging machine is our newly developed product for packaging of petrochemical, plastic particles, feed and other industries.The FFS film tube is fed into the filling machine, the bag is base-sealed and cut, formed and filled, and then top sealed. For palletised goods, the modern FFS system is growing and offers cost saving by high output in automatic filling. It is a flexible system with high print quality.


Specifications

1.

Operating voltage

AC380V±5%, 50Hz

2.

Packaging speed

10 - 20 bags/min

3.

Packaging weight

25 kg/bag, (PP particles)

4.

Max. power

15kW

5.

Film roll requirements

M type PE heavy-duty edge-folded roll     film,melt index>0.2,film thickness:140-200um±4%, edge   folded depth:80mm±3mm,   film dimension range:(650-950)x400x180 mm,reel outer dia:1500mm,reel inner dia:150mm+/-5mm

6.

Operating air pressure

≥6kgf/cm2

7.

Air consumption

≤2~3m3/min

8.

Noise margin

≤80 dB

9.

Max. packaging speed

10 bags/min

10.

Bag size

L(650-850)*W(400-410)*D(120-160)

11.

Bag-making material

PE film


Application:

 FFS heavy-duty film packaging machine application
