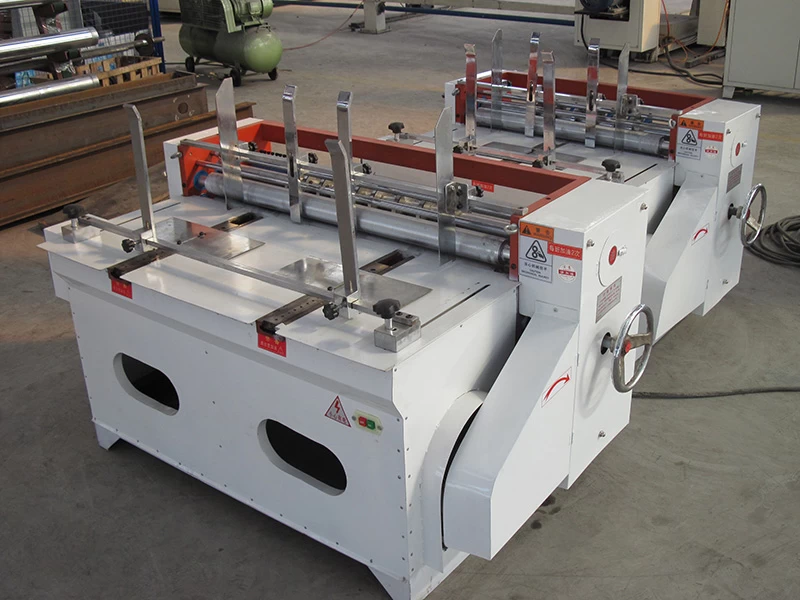

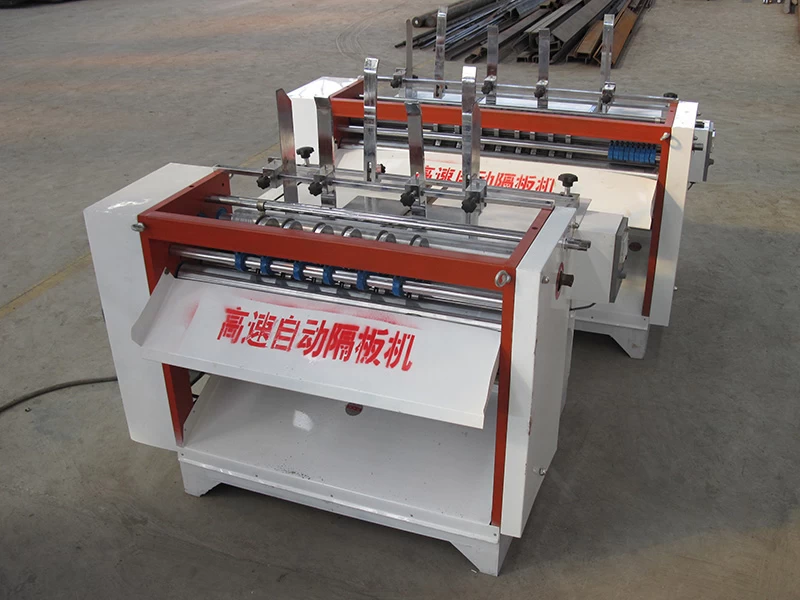

Product Name:FG Automatic Rotary Partition Fprming Machine
Features：
Model
FG automatic rotary partition forming machine is suitable for making the partition
dividers in the cartons for liquors, beverages, medicines, fruits, electrical
appliances and glass vessels etc, and it can be also used to make simple and
small boxes, an ideal equipment for carton factories in commercial production
of all kinds dividers of all types of dimensions and simple and small sized
cassette boxes as well.
|
Model
|
FG-550
|
FG-780
|
FG-1000
|
|
Max
Board Dimension (mm)
|
550×300
|
780×300
|
1000×415
|
|
Board
Transverse Feeding Width (mm)
|
130—550
|
140—780
|
160—1000
|
|
Board
Longitudinal Feeding Width (mm)
|
100—300
|
120—300
|
120—415
|
|
Board
Thickness (mm)
|
2—5
|
2—5
|
2—6
|
|
Slotting Quantity
|
1—6
|
1—6
|
1—9
|
|
Min
slotting gap (mm)
|
40
|
40
|
40
|
|
Working
Velocity (P/h)
|
4800
|
4800
|
4800
|
|
Motor
Power (Kw)
|
0.55
|
0.75
|
0.75
|
The product specification is subject to amend without any notice in case of technical requirements
