Fiber Adapter SC UPC APC Simplex Duplex SM Multimode OM3 OM4 OM5
Fiber

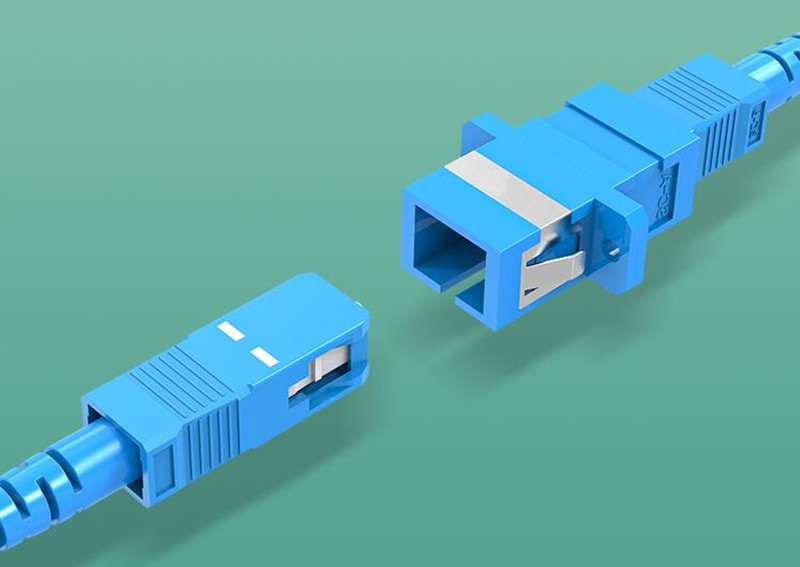

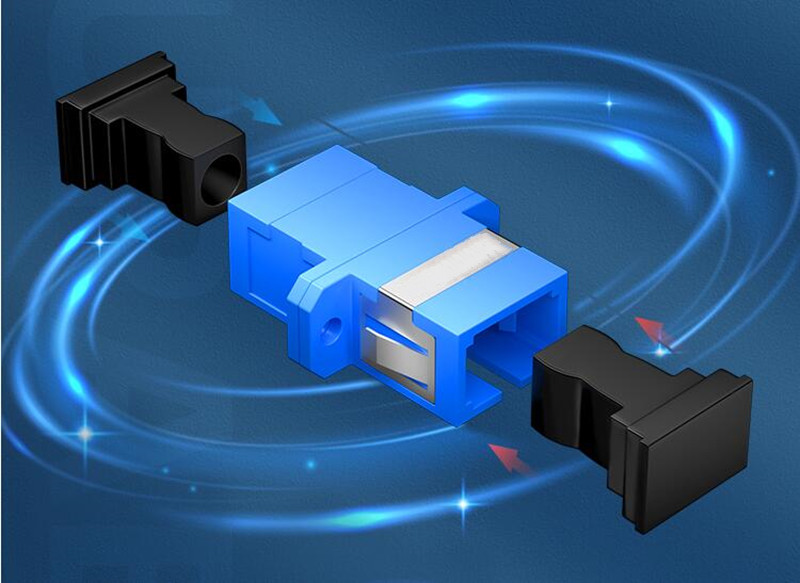

Adapter SC features providing the connection between SC
Patchcord with SC patchcord, SC adapters can be with plastic or metal housing,

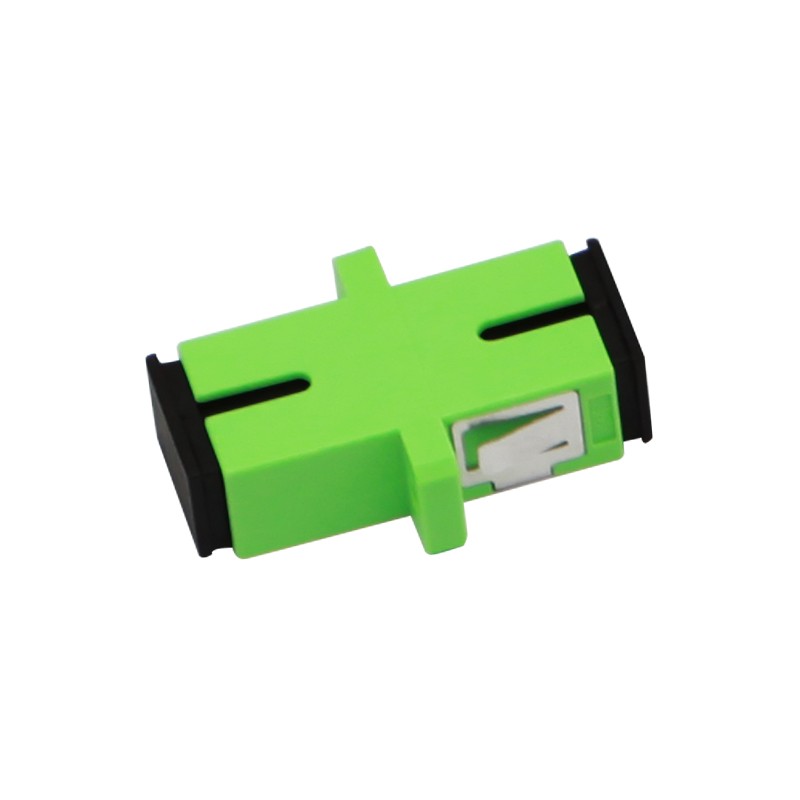

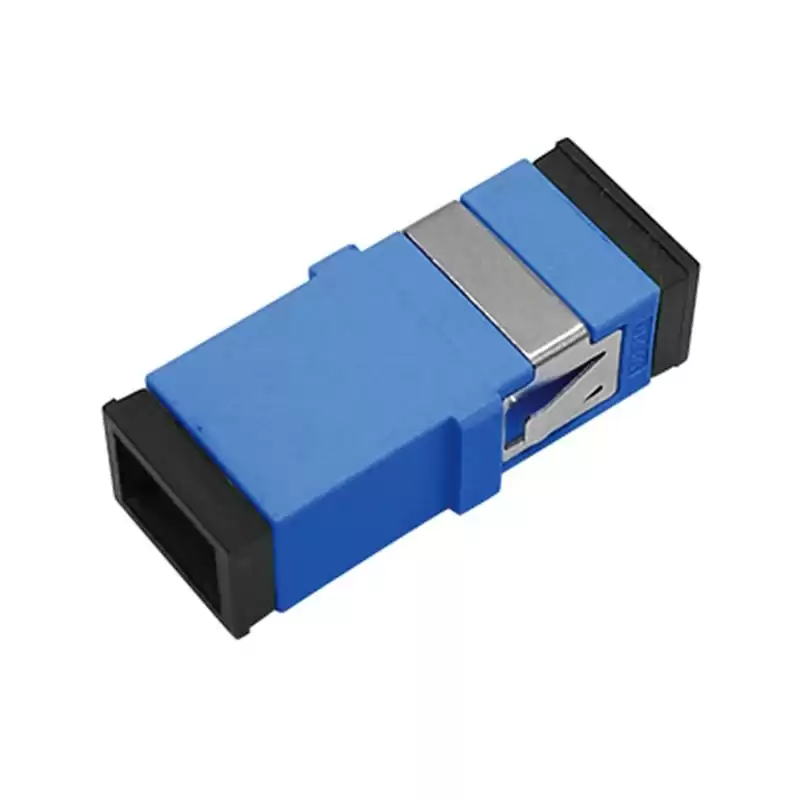

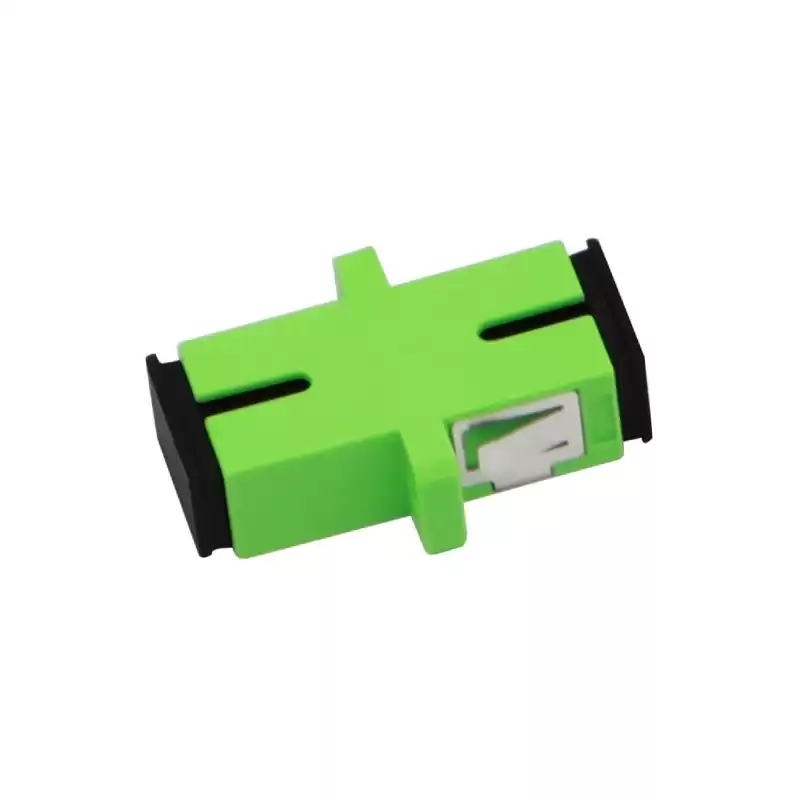

there are different colors for plastic housing: blue for single mode UPC, green

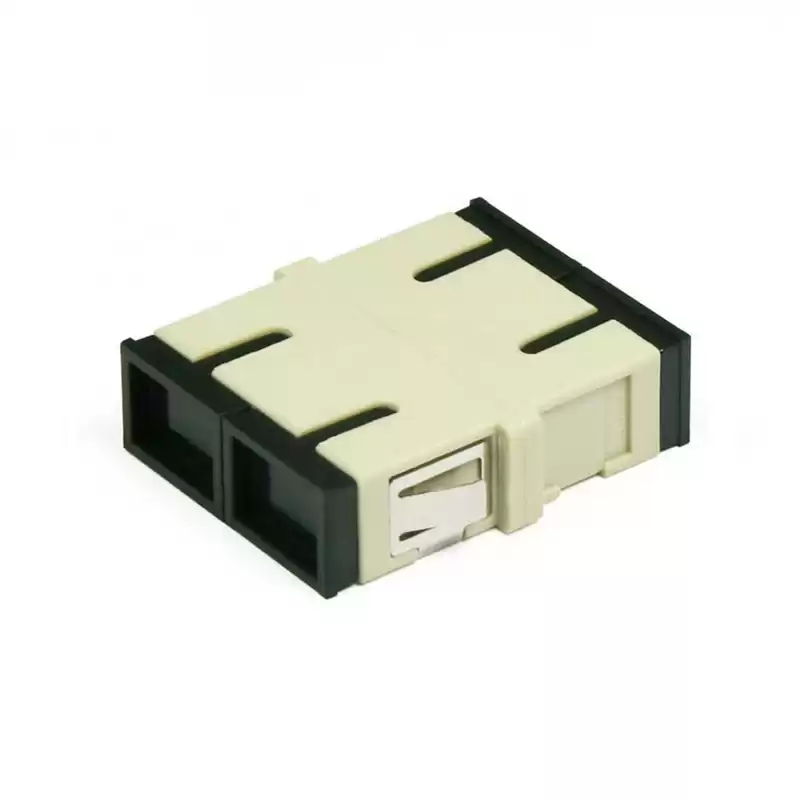

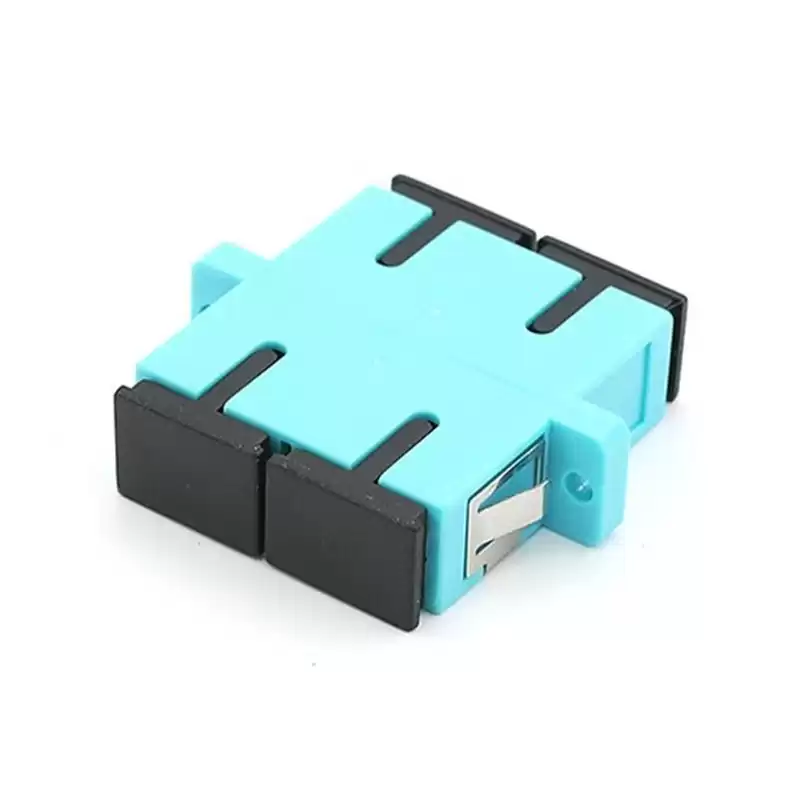

for single mode APC,beige for multimode PC,aqua for multimode OM3,magenta for
multimode OM4 and lime green for multimode OM5. They can be with or without
flange in simplex or duplex.Please reach us for details.
Application:
LAN
Fiber Optic
Transmission System
CATV Network
Telecommunication
Instruments
Feature:
Compact design
Low insertion loss
Durability(Recycles):500
High Reliability
and Stability
Package:
25pcs per blister box,then put into a carton box.
Specification:
Parameter
|
Unit
|
SM-UPC
|
SM-APC
|
MM
|
Insertion Loss (Typical)
|
dB
|
≤0.2
|
≤0.2
|
≤0.2
|
Return Loss
|
≥50
|
≥60
|
≥35
|
Exchangeability
|
≤0.2
|
Repeatability
|
≤0.2
|
Durability
|
Times
|
>1000
|
Plug and unplug force(g/f)
|
G
|
200-600
|
Operating Temperature
|
°C
|
-40~75
|
Storage Temperature
|
-40~85
|
