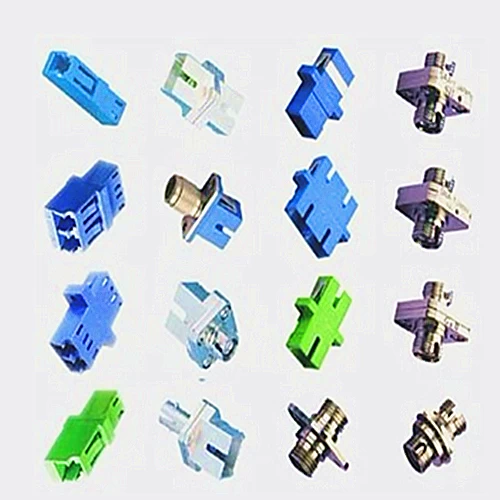

Fiber Adapter

SC, FC, ST, LC, MU, MTRJ, MPO, MTP, E2000  both in single mode and multimode, simplex and duplex types

Facebook Twitter Pinterest LinkedIn 分享

Features:

Low insertion loss,high return loss
High-precision alignment
Accord with the standard of the Telcordia ,ANSI,TIA/EIA,NTT,JIS
Compact design
Optional for the Shell material or sleeve material
Compatible with NTT-SC standard

Applications:

CATV system,Telecommunications network,Test equipment,Metro,LANs,Data processing network


Specifications:

IL:less than 0.20dB
Durability:less than 0.20dB,pluggable number  >1000
Operating Temperature:--40~+55°C

Adapter Order information


Adapter Order Information

Connector-1

Polishing

Color

Material

Sleeve material

Channels

Remark

LC

PC

Blue

Plastic

Zirconia ceramic

Simplex

Dust cap color

FC,SC

PC,UPC

Blue

Plastic

Zirconia ceramic

Simplex

Black

LC,ST

APC

Beige

Metal

Phosphor bronze

Duplex

Red

MU,MTRJ

Green

Blue

E2000

Beige

Green
