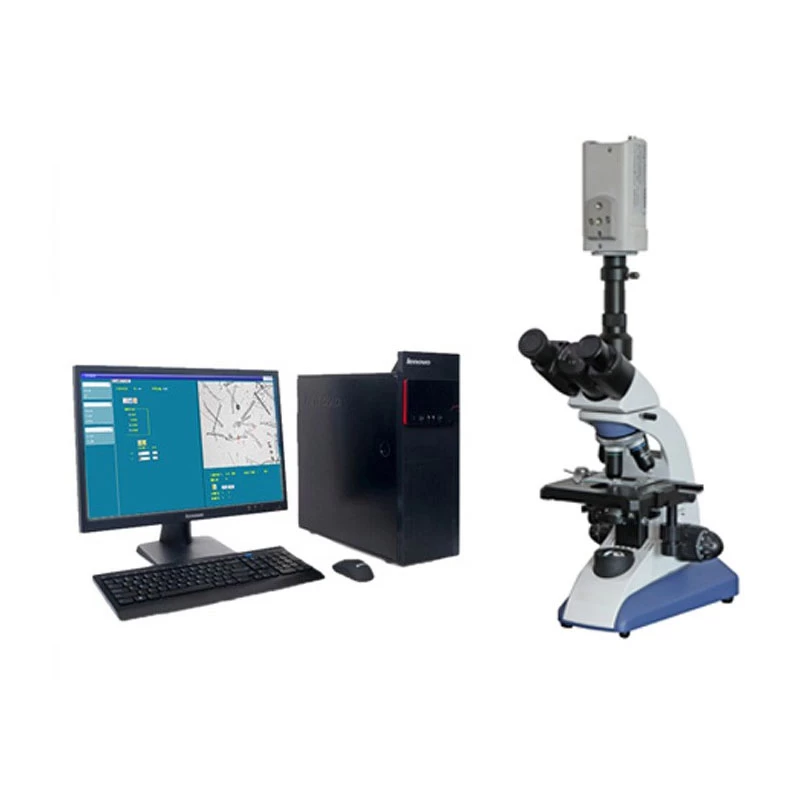

AR05-Fiber Content Analyzer
Application Of Fiber Content Analyzer
Fiber Content Analyzer is mainly used for measuring various fiber diameters, cross-section analysis, and content of textile ingredients.
Feature Of Fiber Content Analyzer
-
It is used to observe the cross-sectional morphology of various types of chemical fibers, shaped fibers and hollow fibers and measure the cross-sectional area.
-
Test the abnormality of profile fibre.
-
The fiber content of various blended products can be obtained through the analysis of the single fiber transverse morphology and area measurement in the blended product.
-
Use professional analysis software and output the data and reports through EXCEL, and provide standard reports.
Standards Of Fiber Content Analyzer
GB/T 10685, FZ/T 30003, SN/T 0756, AATCC 20A
Key Specification Of Fiber Content Analyzer
|
Model
|
AR05 Fiber
Content Analyzer
|
|
Working
mode
|
Manual
measurement,
automatic
measurement,
multi-point
measurement,
automatic
statistical analysis, report printing, photo printing
|
|
Measuring
range
|
0-200um
|
|
Measurement
accuracy
|
0.1um
|
|
Power
supply
|
AC220V 50Hz
100W
|
|
Dimensions
|
1200×500×600mm
|
|
Weight
|
25kg
|
Accessories Of Fiber Content Analyzer
|
Standard
Accessories
|
Computer
|
1pc
|
|
Industrial
camera
|
1pc
|
|
Microscope
|
1pc
|
|
Printer
|
1pc
|
