20-350mm Tube and pipe Laser Cutting Machine for cutting structural beams ,profiles and regular pipe and tubes.
|
Model
|
Laser
|
Tube length
|
Cutting range
|
Application
|
|
F6015GE
|
1KW-2KW
|
6 Meters
|
20-150mm
|
SS CS brass, aluminium pipe and tube
|
|
F6020GE
|
1KW-2KW
|
6 Meters
|
10-200mm
|
SS CS brass, aluminium pipe and tube ,U
beam. L beam..
|
|
F6035GE
|
1KW-3KW
|
6 Meters
|
20-350mm
|
SS CS brass, aluminium pipe and tube ,U
beam. L beam..
|
|
Cyptube/ProTube
control.WSX or Precitec cutting head.auto materials feeding and finished
parts collection….
|
F6035E has bigger chucks than the other two. It is more suitable for some big tube cutting application. heavy duty large metal tube cutting applications. The fiber laser processing large diameter pipes and structural beams are becoming popular .F6035 is built for fabricating purpose : laser cutting of large diameter tubes and structural beams in steel, aluminum or brass. Some applications are for the production of sections for agricultural and industrial vehicles.
Baisheng is a professional Laser cut metal
tube supplier in China.
Laser cutting tube is a highly productive and
flexible method of tube processing which is now finding applications in all
industries.
Laser tube cutting machines are designed both to cut hole
profiles and end profiles (mitres or cod mouths) on round, square, oval,
triangular and other special section tubes.

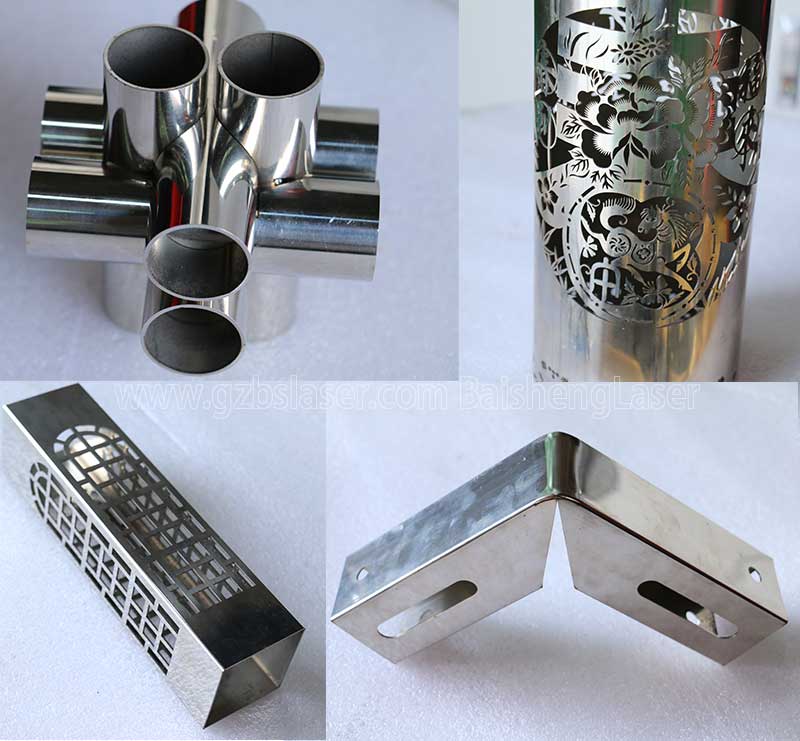

Accurate laser cutting of
highly complex shapes within the tube is possible...
The F6035 Laser Tube offers the
following:
· Max raw material length – 6m
· Max outside dia. – 350mm ,square tube 20-245mm diameter.
· 5,00kg capacity automatic bundle loader
· 90/45 degree tilting laser head
Jaw clamping works with pneumatic drive with adjustable pressure.the profile rotation axis and profile axis are servo
motor driven.the front chuck can hold materials between 20-350mm precisely in the center axis with double design supported roller jaws up to 8 pieces.
The advanced servo drive follow-up supports system are the supporting elements that are place in order to prevent collapse and oscillation of materials druing cutting regardless of different diameter and shape of pipes.
bale profiles or pipe materials can be loaded onto machine by an automatic loading system.Part loading and unloading never interrupts the cutting process because these operations are carried out in the background.
Tube laser
cutting eliminates all traditional marking out, sawing, drilling, deburring and
shaping operations carried out with conventional tube processing.Traditional fixed costs of punches, clamps, tools and jigs are also eliminated.
The tube laser
machines are CNC controlled and programmed offline by 3D CADCAM software.
With full automatic loading of tube raw material lengths up to 6 metres,automatic processing and automatic offload, the process offers very high productivity.China-made tube laser is more cost-effective .At present ,large amount such tube lasers are used in fabricators' job shops.
Economic professional China-made tube laser machine will use cyptube control software with its own nesting software,WSX cutting head....
