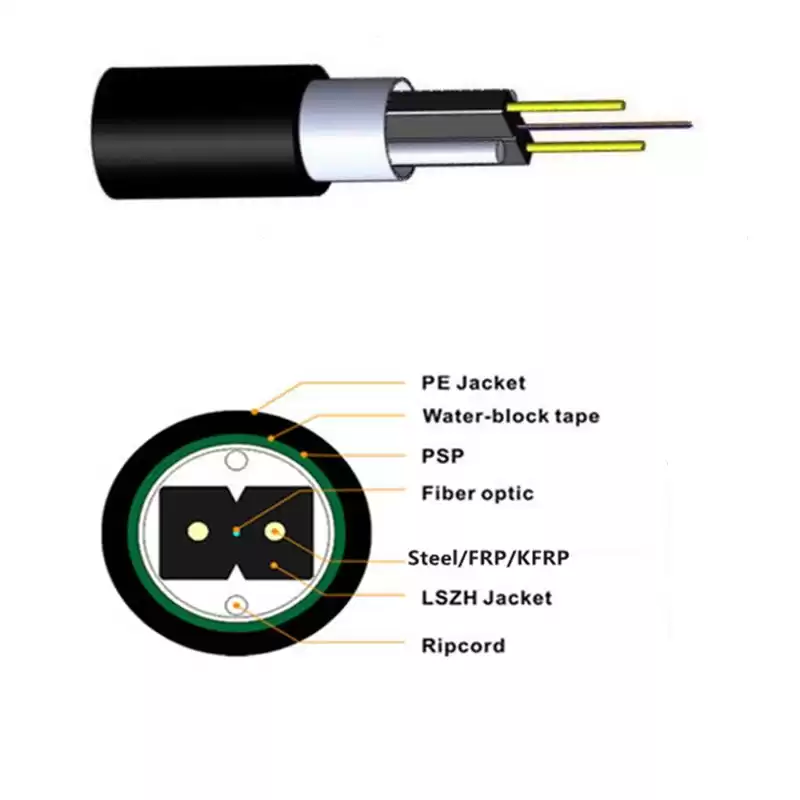

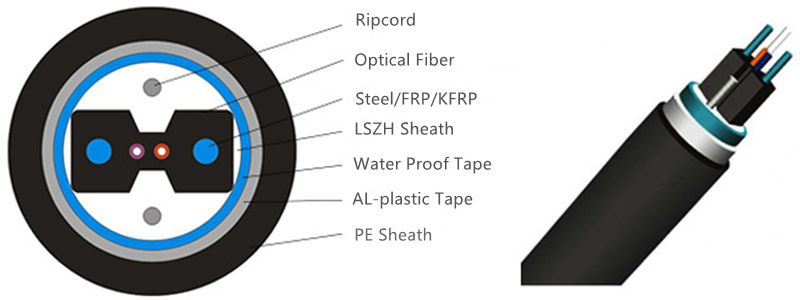

Fiber Optical Ftth Pipeline Drop Cable
FTTH (Fiber to the Home) is the final form of the development of optical access networks. The fiber access network is divided into FTTH (fiber to the home), FTTB (fiber to the building), FTTP (fiber to the premises) and FTTC (fiber to the roadside) based on the location of the optical network unit. The optical fiber cable access networks mainly use PON (Passive Optical Network) technology, which uses splitters to distribute optical signals and provide services to multiple users at the same time.SZOPT provides indoor/outdoor/pipeline FTTH drop cables in different models,please reach us for details.
Application:
Indoor FTTH;
For patch cords and pigtails;
For communication equipment.
Feature:
Good mechanical and environmental characteristics;
Flame retardant characteristics;
Cable jacket options:PVC,LSZH
Strength Member options:Steel,FRP,KFRP.
Package:

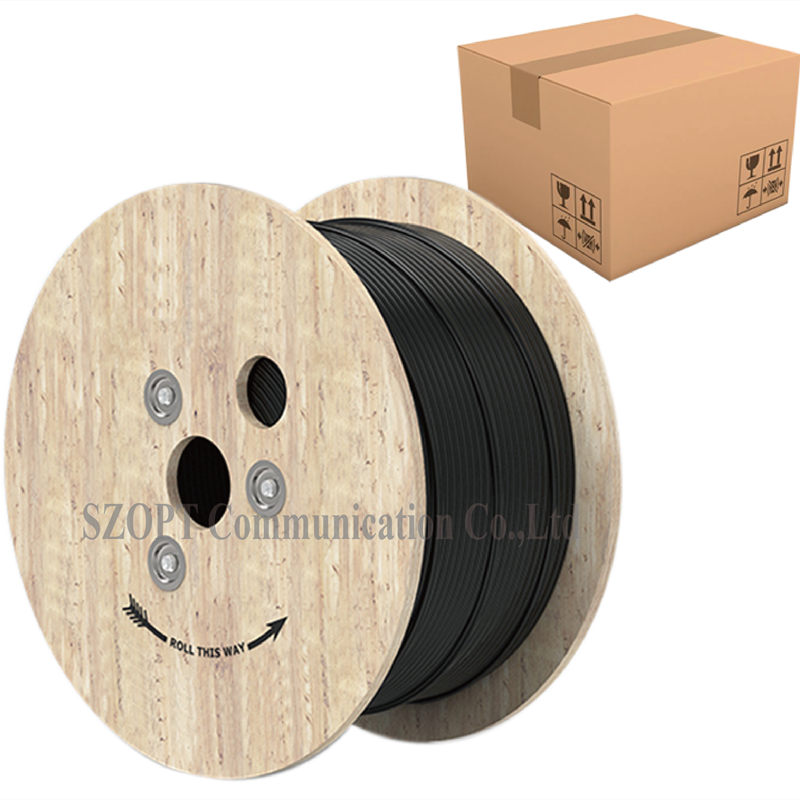

1km/2km/3km per roll or custom,then put into a carton box.
Mechanical
Characteristics:
|
Tensile Strength
|
Long Term
|
300N
|
|
Short Term
|
600N
|
|
Crush Resistance
|
Long Term
|
1000N/100mm
|
|
Short Term
|
2200N/100mm
|
|
Bending Radius
|
Dynamic
|
20D
|
|
Static
|
10D
|
Optical Characteristics:
|
|
|
G652D
|
G657A1
|
G657A2
|
G.655
|
62.5/125
|
50/125
|
|
Attenuation
(+20℃)
|
@850nm
|
|
|
|
|
≤3.5dB/km
|
|
@1300nm
|
|
|
|
|
≤1.5dB/km
|
|
@1310nm
|
≤0.45dB/km
|
|
|
|
@1550nm
|
≤0.30dB/km
|
≤0.45dB/km
|
|
|
|
Bandwidth
（Class A）
|
@850
|
|
|
|
|
≥200MHZ·km
|
≥500MHZ·km
|
|
@1300
|
|
|
|
|
≥600MHZ·km
|
≥1000MHZ·km
|
|
Numerical Aperture
|
|
|
|
|
|
0.275±0.015NA
|
0.200±0.015NA
|
|
Cut-off Wavelength
|
|
≤1260nm
|
≤1480nm
|
|
|
