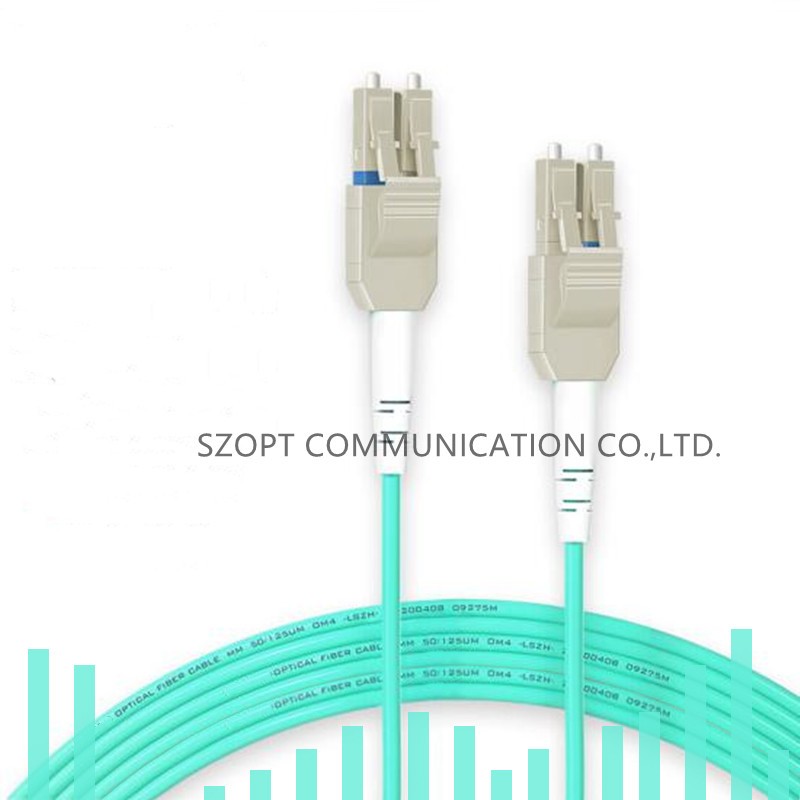

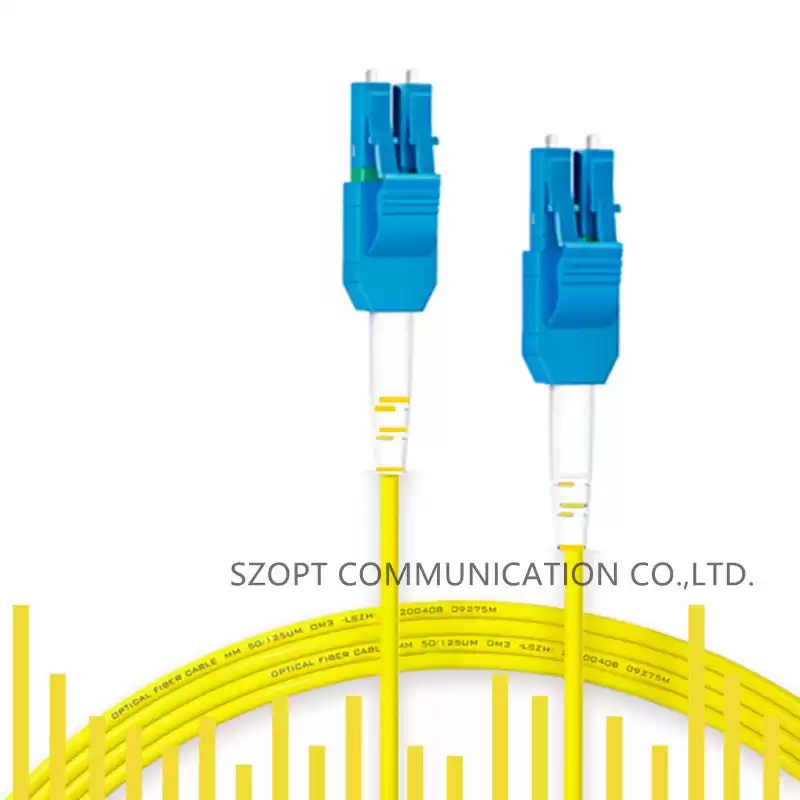

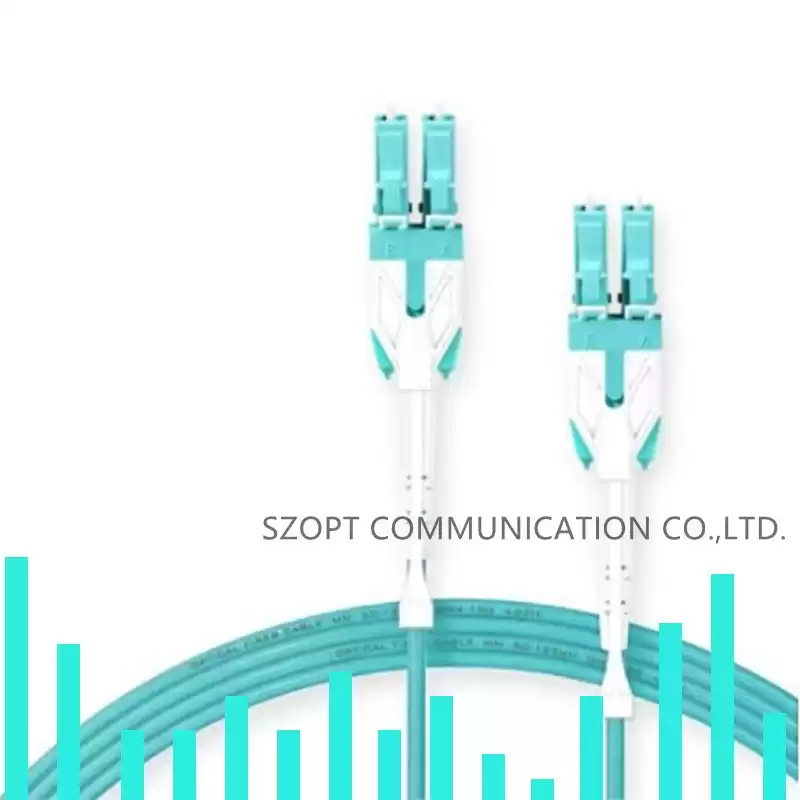

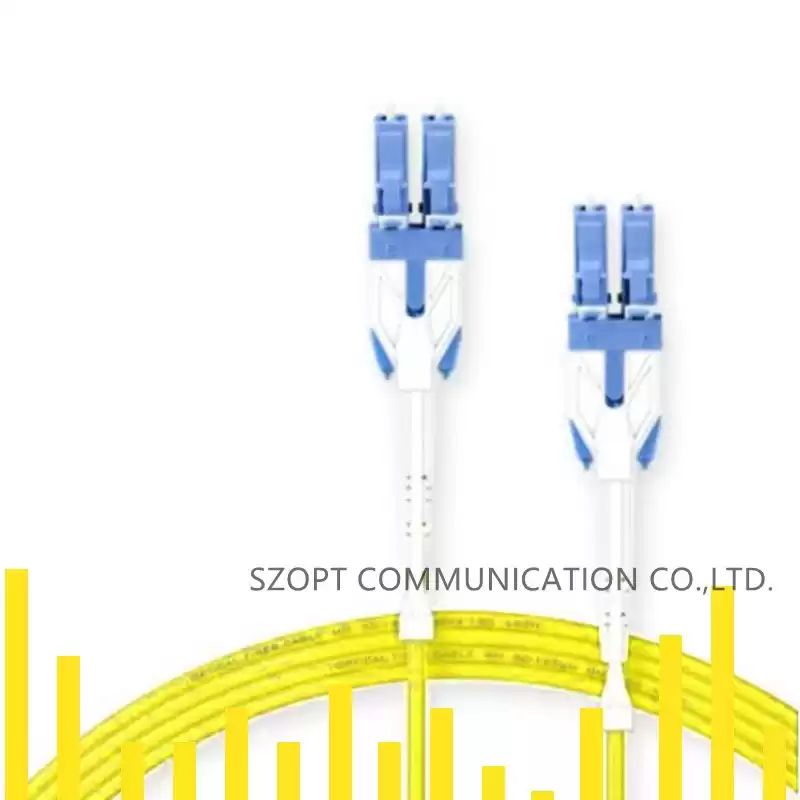

Fiber Patch Cords LC-LC Uniboot with w/o Tab Singlemode Multimode

Fiber Optical Patch Cord LC-LC has LC/UPC connectors on both ends,with PVC,LSZH,OFNP jacket in yellow(SM);orange(OM1/OM2),aqua(OM3), magenta(OM4),lime green(OM5) or custom,the cable diameter is 3.0mm,2.8mm,2.4mm,2.0mm,1.8mm,1.6mm,1.2mm,0.9mm,etc.

Facebook Twitter Pinterest LinkedIn 分享

Fiber Patch Cords LC-LC Uniboot with w/o Tab Singlemode Multimode


Fiber patchcord LC-LC SM/OM1/OM2/OM3/OM4/OM5 Duplex is a patch cord that has fiber connectors LC/UPC on both ends. General use of these yellow,orange,aqua,magenta,lime green or custom color cable assemblies includes the interconnection of fiber cable systems and optics-to-electronic equipment.

Zirconia Ferrule



Fiber Optic Connectors LC


Polishing Station

Test of Fiber Patch Cords

Fiber Patch Cords Workshop

Fiber Patch Cord Appliance

Goods Ready to Ship

Application:

Telecommunication System

Testing Equipment

CATV System

LAN System


Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom diameter cable available



Package:

Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.


Specification:

Connector Type

Performance Data

Connector

Polishing Mode

IL(dB)

RL(dB)

SC/LC/FC/ST/MU/E2000

SM

UPC

≤0.3

≥50

APC

≤0.3

≥60

MM

PC

≤0.3

≥35

MTRJ

SM

PC

  ≤0.5

≥50

MM

PC

≤0.5

≥35
