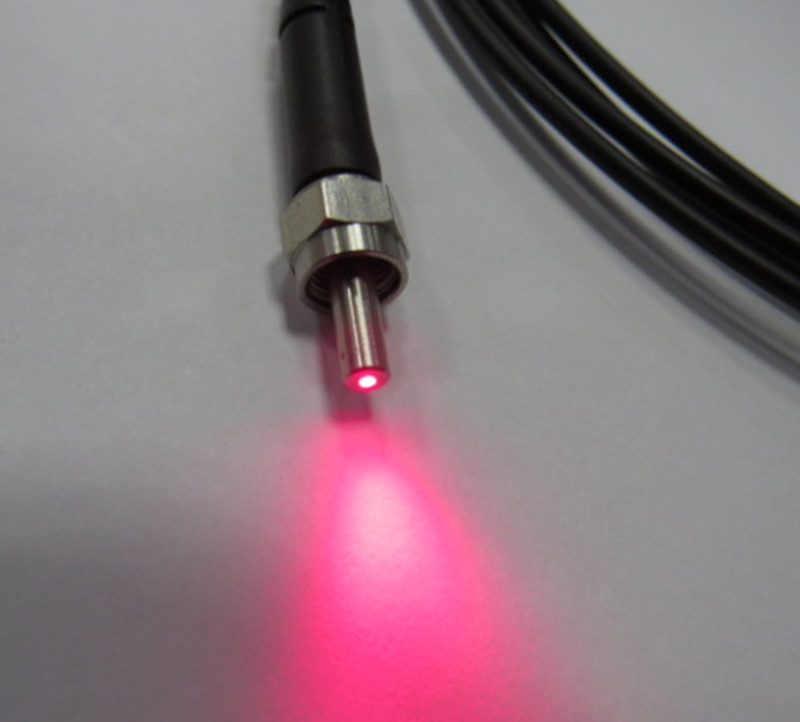

Fiber Patch Cords SMA-SMA Simplex Duplex Singlemode Multimode
Fiber patchcord SMA-SMA SM/OM1/OM2/OM3/OM4/OM5 Duplex is a patch cord that has fiber connectors SMA on both ends. General use of these yellow,orange,aqua,magenta,lime green or custom color cable assemblies includes the interconnection of fiber cable systems and optics-to-electronic equipment.
Application:
Telecommunication System
Testing Equipment
CATV System
LAN System
Feature:
Low Insertion Loss
High Return Loss
High Reliability and Stability
0.9mm,2.0mm,3.0mm or custom diameter cable available
Package:
Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.
Specification:
|
Connector Type
|
Performance Data
|
|
Connector
|
Polishing Mode
|
IL(dB)
|
RL(dB)
|
|
SC/LC/FC/ST/MU/E2000
|
SM
|
UPC
|
≤0.3
|
≥50
|
|
APC
|
≤0.3
|
≥60
|
|
MM
|
PC
|
≤0.3
|
≥35
|
|
MTRJ
|
SM
|
PC
|
≤0.5
|
≥50
|
|
MM
|
PC
|
≤0.5
|
≥35
|
