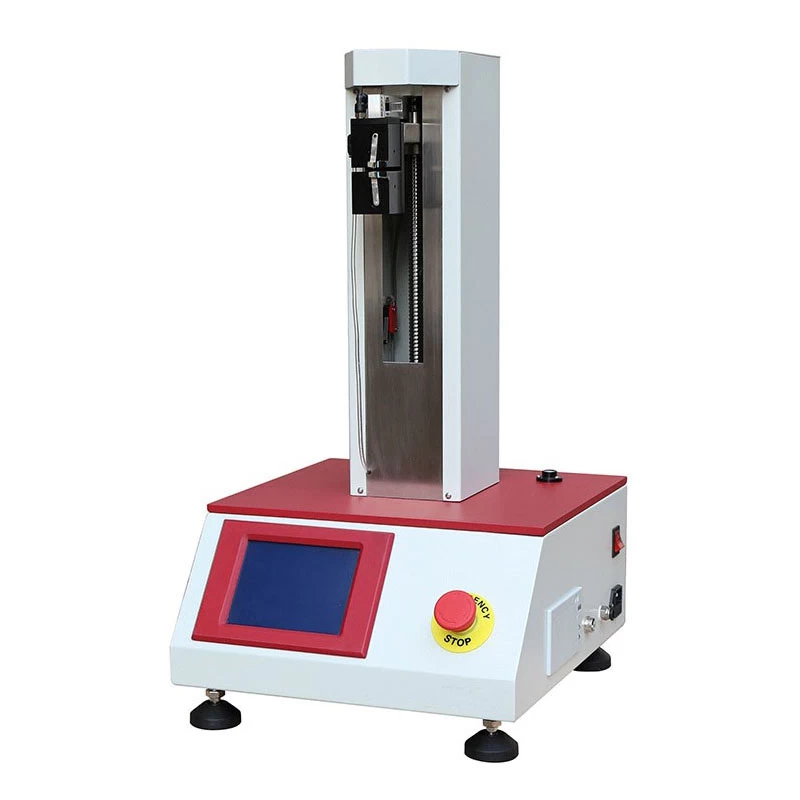

AR01-Fiber Tensile Strength Tester
Application Of Fiber Tensile Strength Tester
Fiber Tensile Strength Tester is used to measure the breaking strength, elongation at break, constant elongation load, constant load, creep and so on of natural fiber, chemical fiber, metal wire, hair, carbon fiber and so on.
Feature Of Fiber Tensile Strength Tester
-
The frequency of dynamic data acquisition is more than 200 times per second, objectively reflect the mechanical properties of the material.
-
Starting tensile value free setting.
-
Computer processes report, graphics, screen display or print output.
-
Built-in embedded printer, no additional printing device is required.
Standards Of Fiber Tensile Strength Tester
GB/T14337, 14344, 9997, 13835.5, ISO 5079, 11566, ASTM D 3822, BS 4029
Key Specification Of Fiber Tensile Strength Tester
|
Model
|
AR01 Fiber
Tensile Strength Tester
|
|
Display
model
|
LCD display,
can connect computer
|
|
Test
range
|
1000cN, (full range 1%～120% of full range)
|
|
Division
value
|
0.01cN
|
|
Test
accuracy
|
≤±0.05%F·S
|
|
Stroke
Space
|
≤200mm
|
|
Elongation
resolution
|
0.01mm
|
|
Min.
clamping distance
|
0.1mm
|
|
Unit
conversion
|
N, cN, Kgf, mm,
lb, in
|
|
Power
supply
|
AC220V,
50/60HZ
|
|
Dimension
|
50×40×60cm
|
|
Weight
|
25kg
|
