Film Applicator Automatic Laboratory Coating Machine
Product Specification
The film coating machine is mainly used for lithium battery electrode coating for coin cell assemble and pouch cell research.
|
Machine model
|
Automatic film coating machine
TOB-TM300
|
|
Source voltage
|
AC 110/220V, 50/60HZ
|
|
Power
|
200W
|
|
Coating speed
|
0-100mm/s, Adjustable
|
|
Advantages
|
With vacuum pump built-in,small size,save space,Adjustable width scraper film coating device, accuracy 0.01mm
|
|
Stroke length
|
0 - 300 mm adjustable by using Adjustable Position Switch
|
|
Platform
|
Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 410mm(L) * 200mm(W)*30mm(T)
|
|
Slicker adjustable range
|
0.01-3.5mm
|
|
Dimension (L*W*H)
|
550*310*330mm
|
|
Weight
|
About 50kg
|
|
Warranty
|
One Year limited warranty with lifetime support
|
1.Product Introduction: This product is widely used in a variety of coating research, such as ceramic film, crystal film, battery material film, special nano-film;
2.Standard configuration: with micrometer adjustable coating machine 100mm
3.Main feature:
① coating speed in the range of 0 ~ 100mm / s adjustable
② Vacuum aluminum plate, can quickly place or remove the substrate;
③ Between 0 ~ 300mm through the trip switch to adjust the trip
④ Small size, can save space
⑤ Exquisite appearance, sheet metal using three-dimensional geometric design, simple and beautiful
Service:
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.

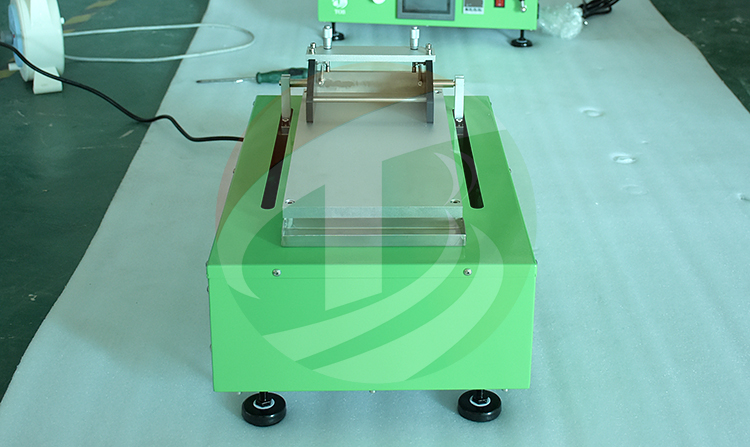

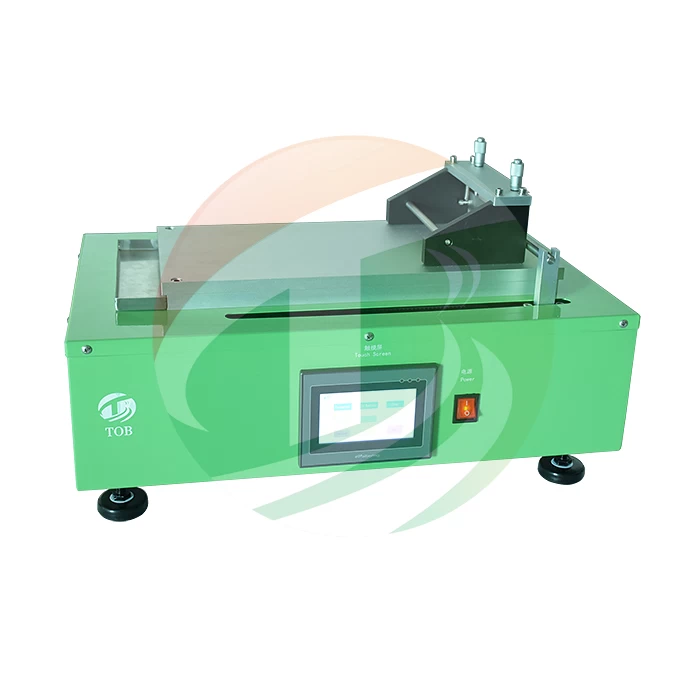

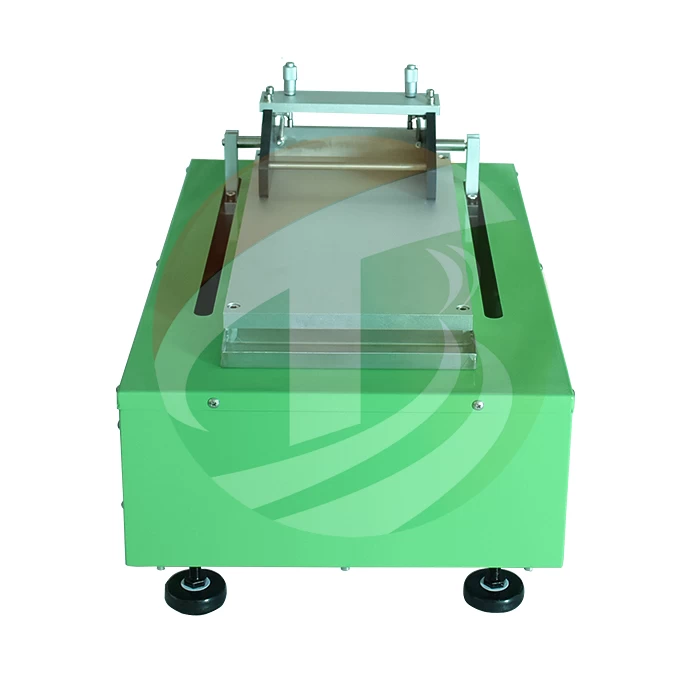

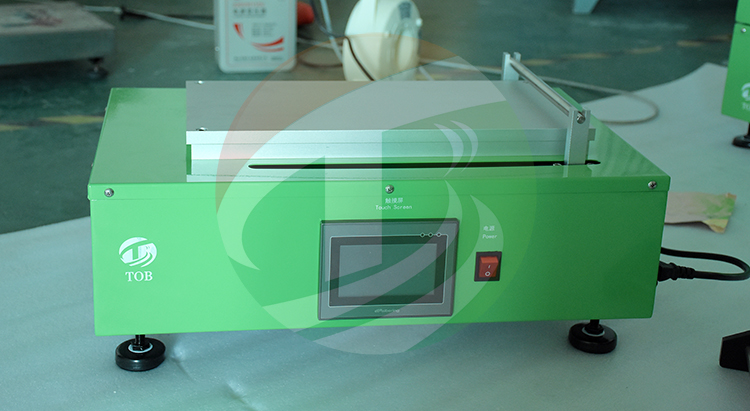

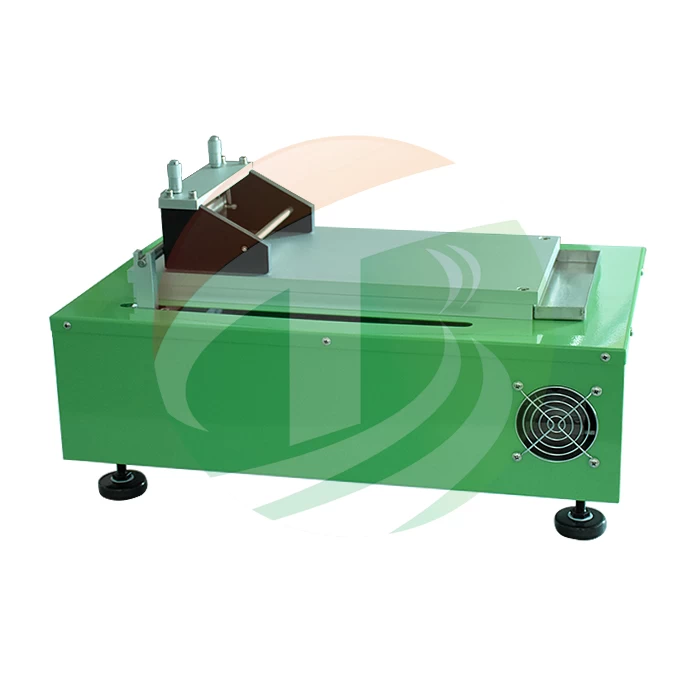

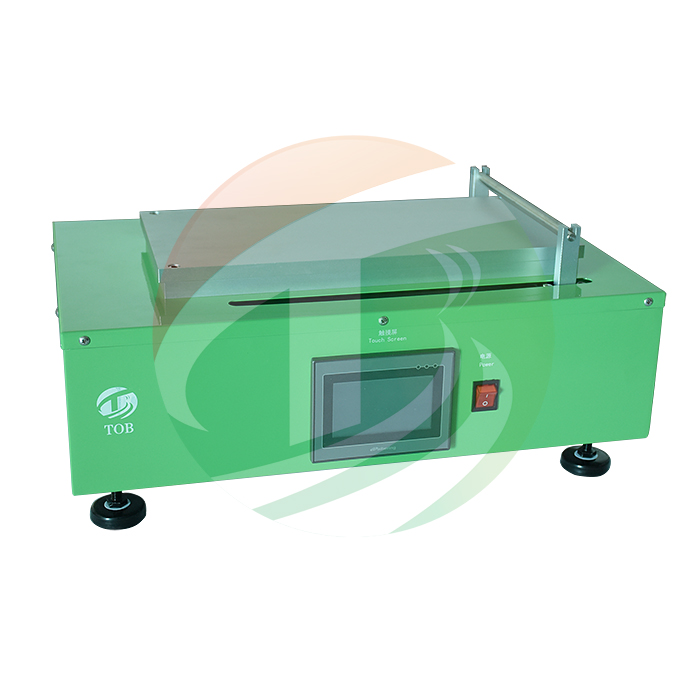

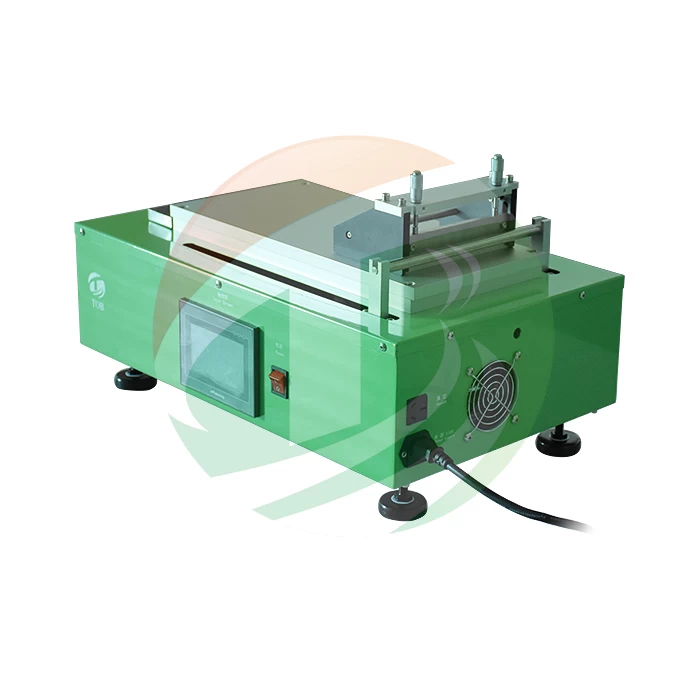

Product Image
Product Packing
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
