Touch Screen Compact Tape Casting Film Coating Machine with Dryer, Vacuum Pump & Adjustable Film Applicator
Specification
1 The TOB-VFC-150Film coating machinewith dryer is used for varies kinds of materials coating.
It is supplied with vacuum pump and heating system, having an precision heating temperature upto 200℃.
2 Thefilm coating machineis mainly used for lithium battery electrode coating for coin cell assemble and pouch cell research.
3 Thefilm coating machineis mainly used for lithium battery electrode coating for coin cell assemble and pouch cell research.
4 Build-in oil-less vacuum pump make the machine with small volume and less noise.
5 New designed Touch Screen control make the operating more easy and simple
|
Machine model
|
Automatic film coating machine with dryer
TOB-VFC-150
|
|
Source voltage
|
AC110V-240V, 50/60HZ
|
|
Power
|
650W
|
|
Coating speed
|
0-100mm/s, Step-less transmission Accuracy: 10mm/sec
|
|
Advantages
|
Supply with dry function, vacuum pump
|
|
Stroke length
|
10 - 250 mm adjustable by using Adjustable Position Switch
|
|
Platform
|
Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 300mm(L) * 200mm(W)*30mm(T)
|
|
Slicker width
|
0-150mm
|
|
Slicker adjustable
range
|
0.01-3.5mm
|
|
Heating dry system
|
RT-200°C, Digital temperature controller
|
|
Temperature control
accuracy
|
±1°C
|
|
Dimension
|
500*350*320mm
|
|
Weight
|
About 40kg
|
|
Package size
|
790*540*600mm
|
|
Package weight
|
65kg
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Remark
|
1 One oil-less vacuum pump is inset

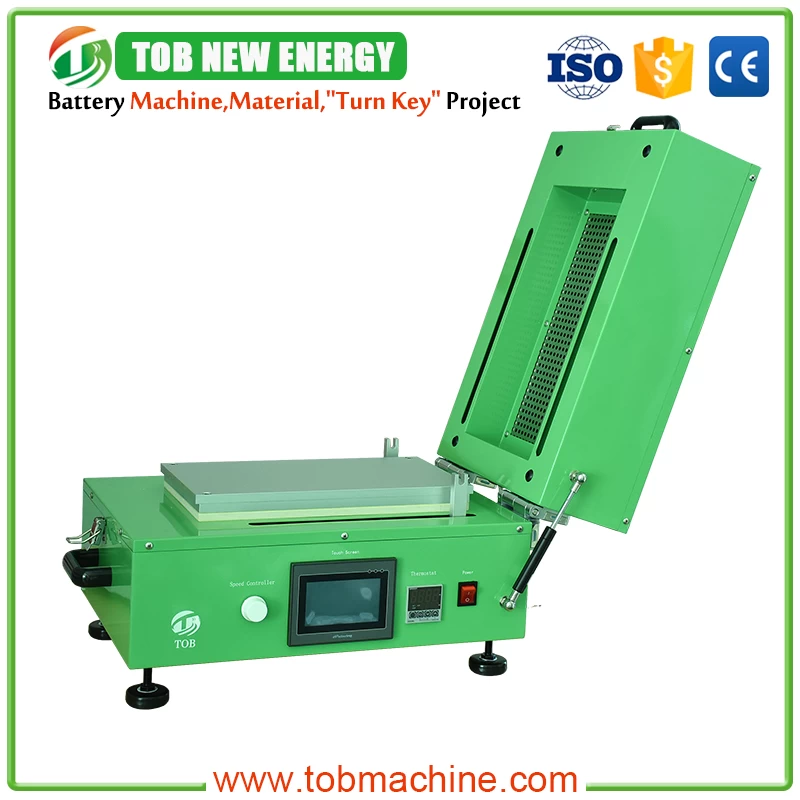

2 Heating system : Installed on the top cover
Built in digital temperature controller with accuracy of +/-1°C
Suspension support helps open cover easily and safely.
Max. Heating Rate:10°C/min
Max. Heating Temp.:200°C

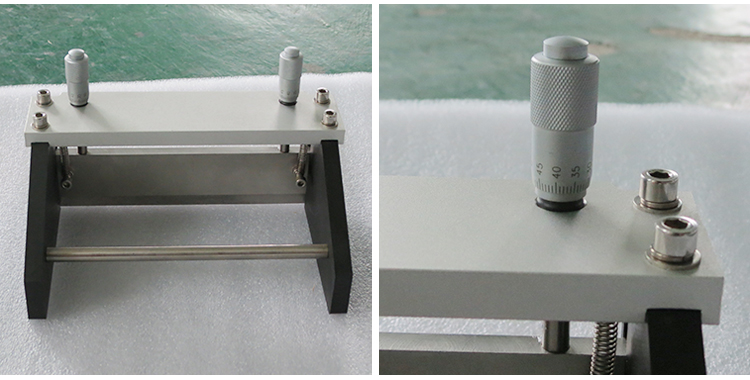

3 One 150mm width micrometer adjustable film applicator
Traverse Pusher is included for pushing the Film Applicator to ensure
the constant coating speed
|

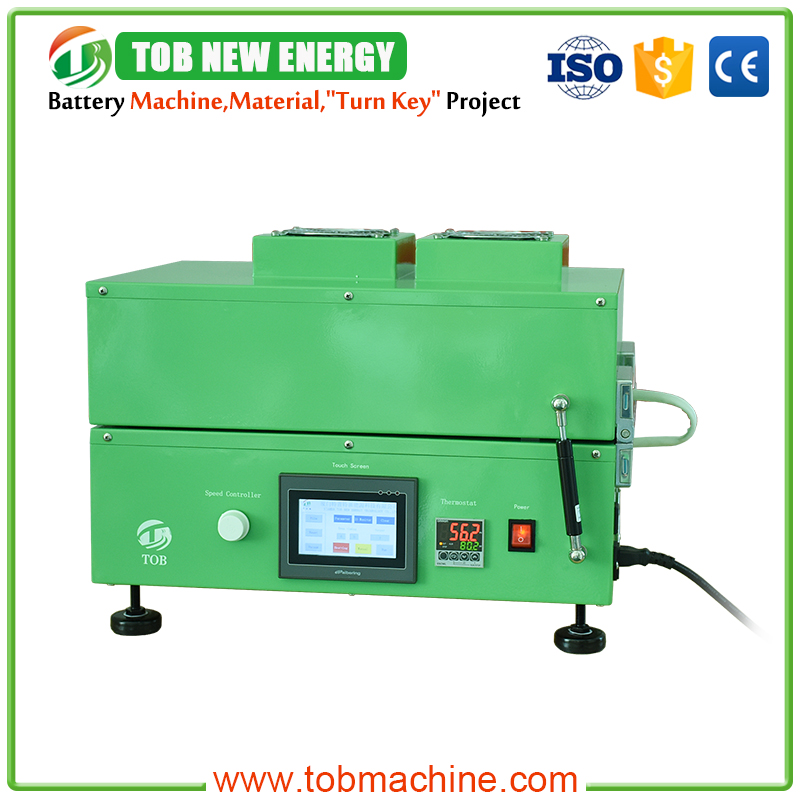

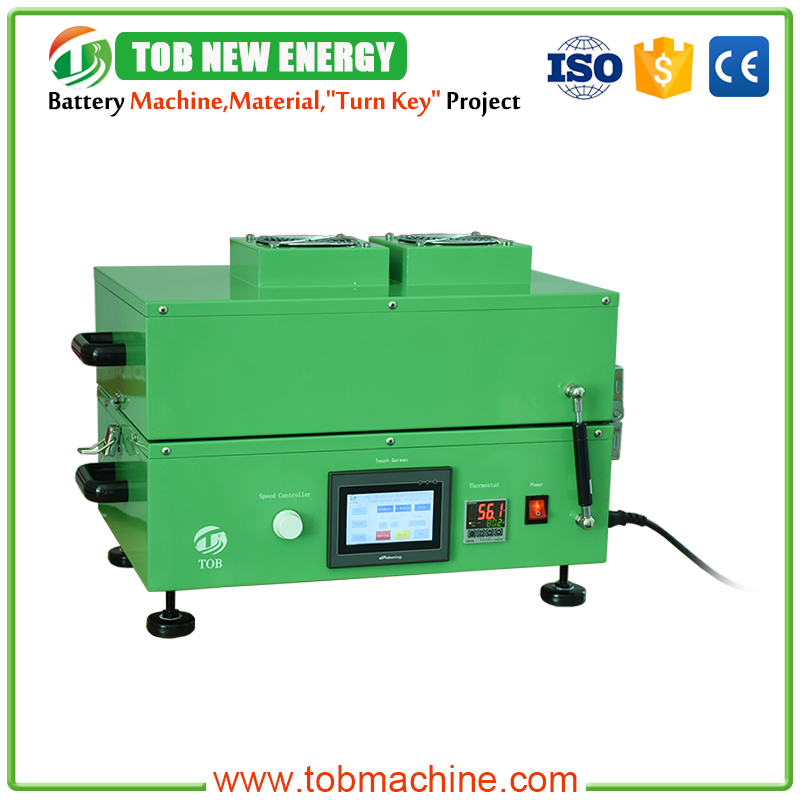

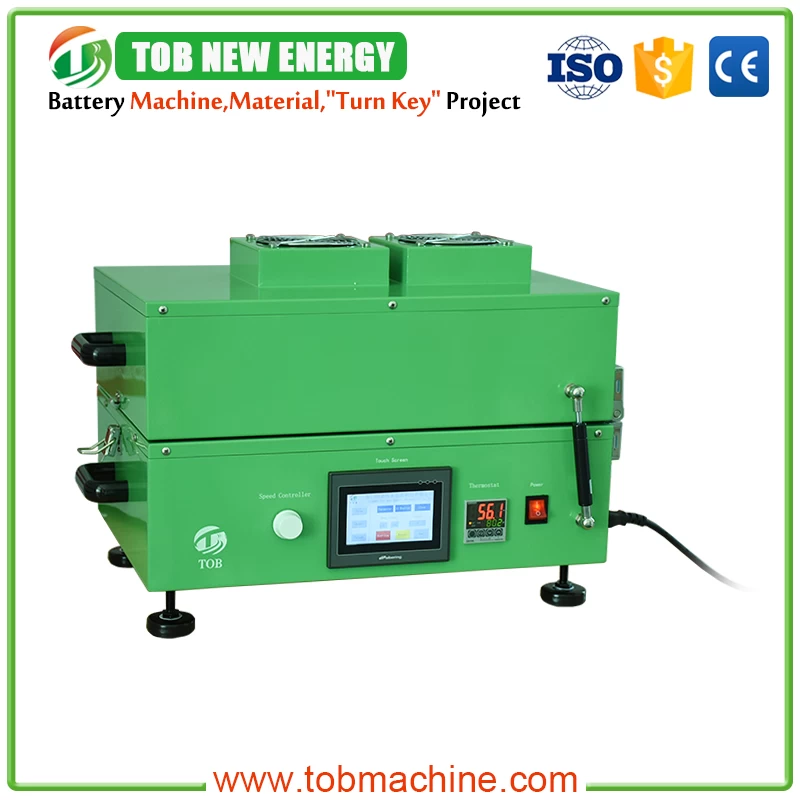

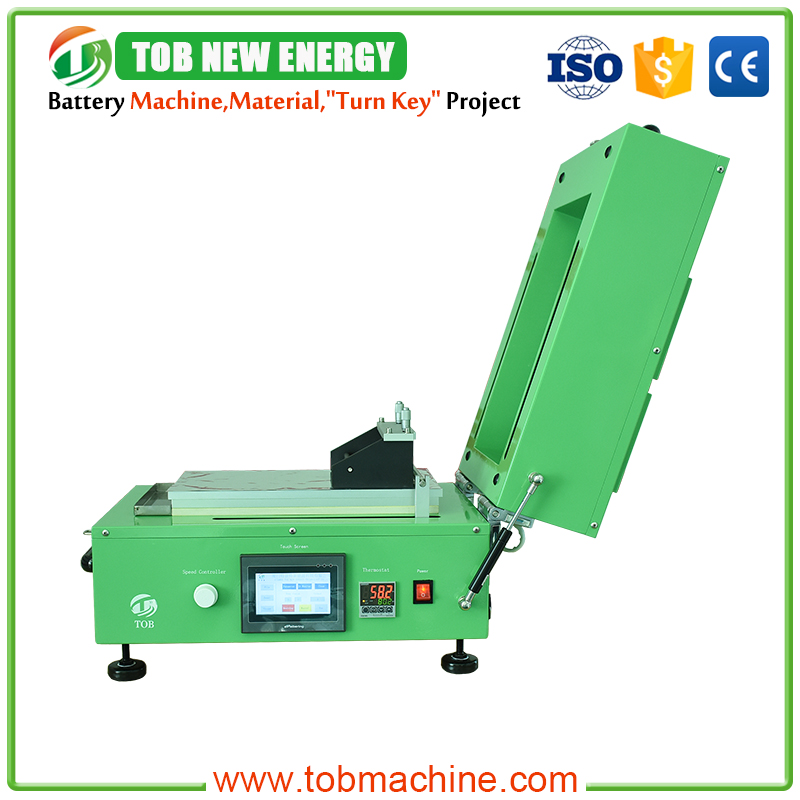

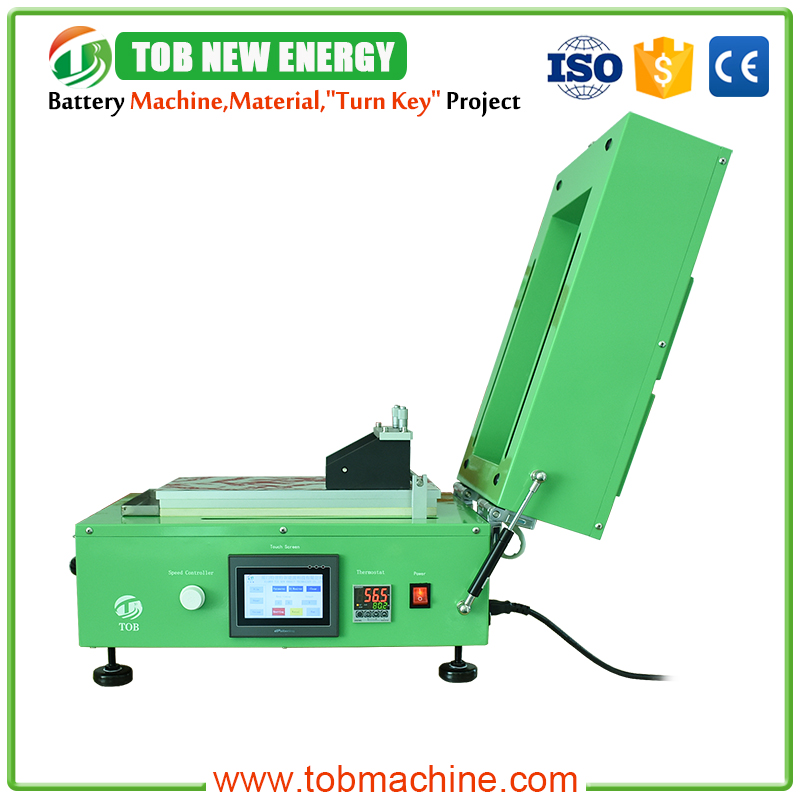

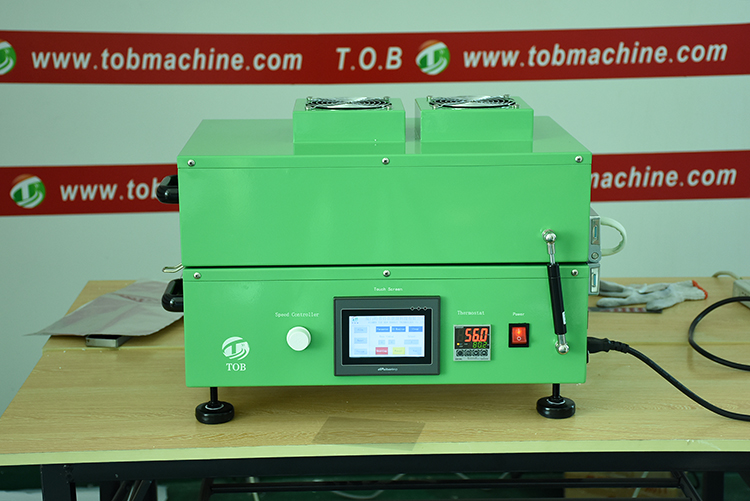

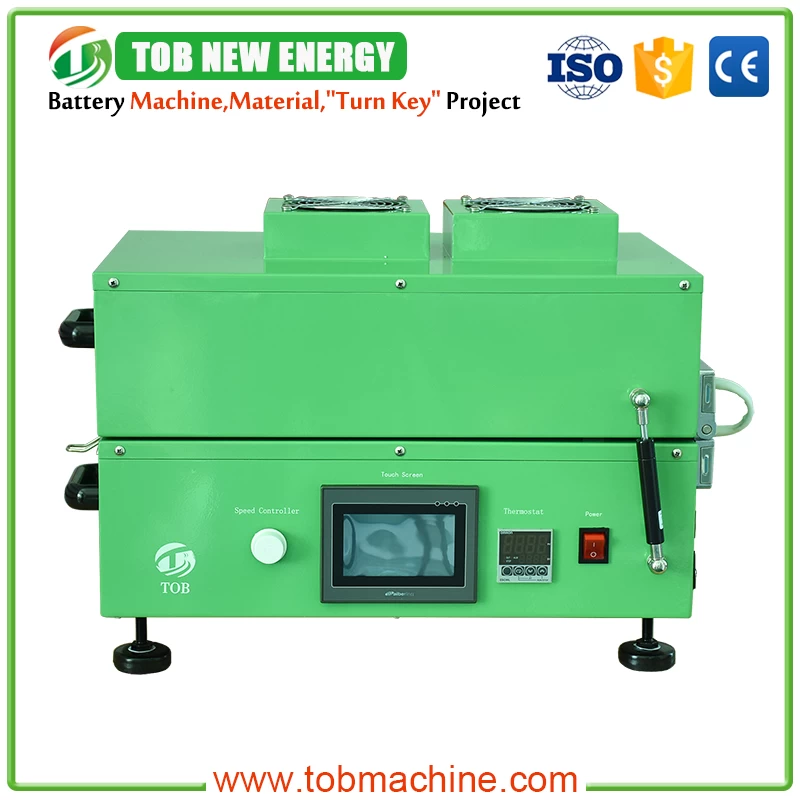

PRODUCT DISPLAY

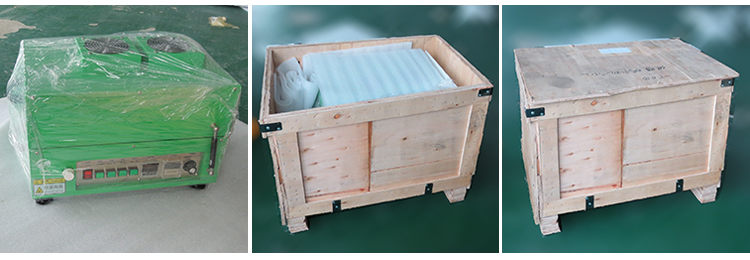

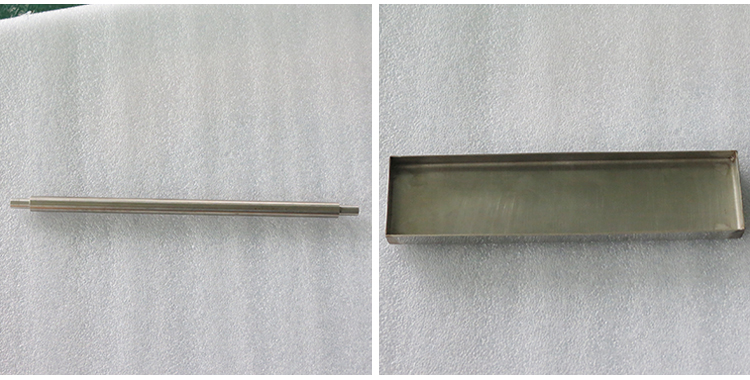

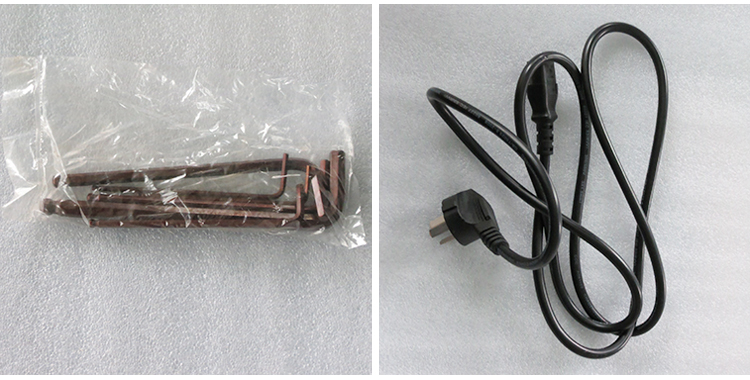

Package
