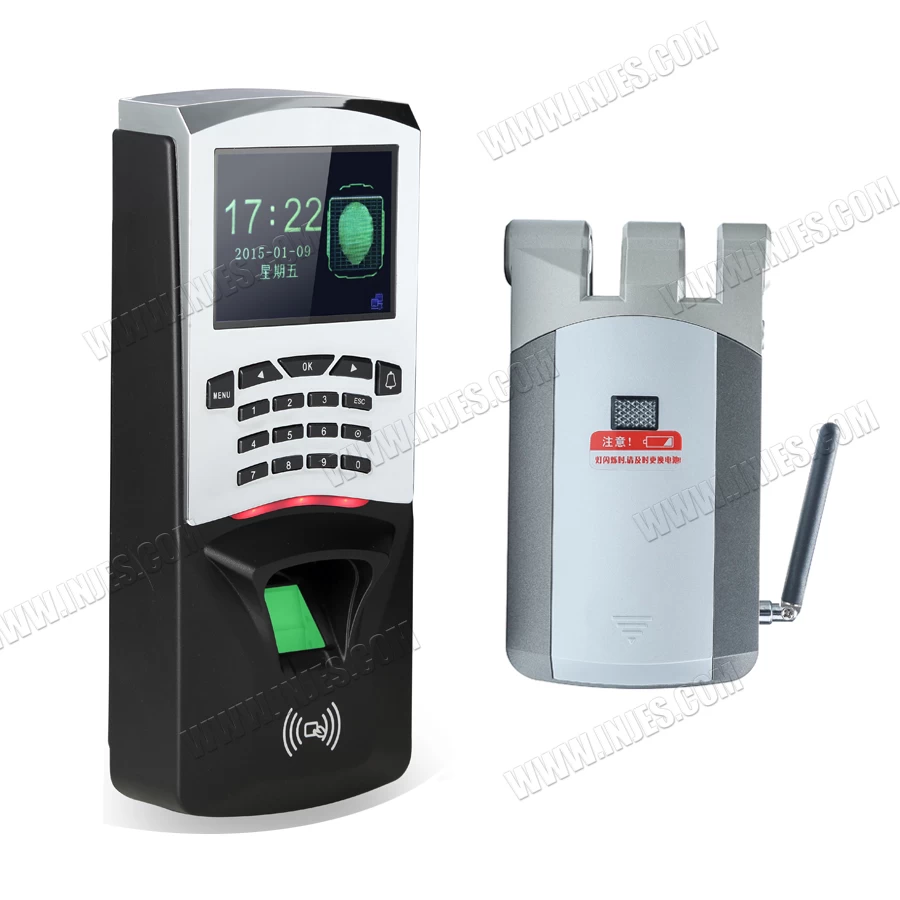

Product Name: Biometric Access Control System with Wiegand Door Lock Connection
Description:
MYM7 Biometric Access Control and Attendance Machine delivers security and convenience, and combine the use of cards, fingerprints, remote controller for wireless door lock. With help of Wireless Fingerprint Access Control System, clients no need to wiring or destroy the door frame any more, which save much money and time on door access control installation . It is new perfect choice for office building or government department .
Features:
．Multiple door opening method,fingerprint ,card ,pins ,remote
．Multi-languages menu display
．User friendly interface and keypad
．USB, RS485,TCP/IP ports for data transfer
．Fast paced CPU and Versatile firmware
．Wiegand 26/34 bit outputs for secure access control
．2.8 inch color screen for better clients experience
．No need wiring, easy installation
．Backup remote controller
．Free SDK for system integration and development
Specifications:
Fingerprint Capacity
|
1000 (Optional 3000)
|
Transaction Capacity
|
100,000
|
Hardware Platform
|
BIO307
|
Sensor
|
Scratch-proof Optical Sensor
|
Display
|
2.8 inch TFT Color LCD Screen
|
Communication
|
TCP/IP,USB-host, RS485
|
Standard Functions
|
Fingerprint, ID card,password,3rd party electric lock, door sensor,
exit button, alarm, Door Bell,Wiegand output
|
Optional Functions
|
MF card, Power supply,
|
FAR
|
0.0001%
|
FRR
|
0.01%
|
Speed
|
<1s
|
Verification mode
|
1:1,1:N
|
Power Supply
|
12V 3A
|
Operating Temperature
|
0 °C- 45 °C
|
Operating Humidity
|
20%-80%
|
Dimension
|
L190*W92*H33(mm)
|
Gross Weight
|
1.20 kg
|

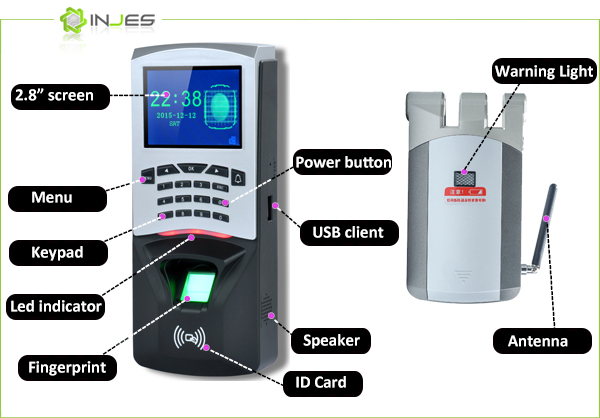

Introduction:

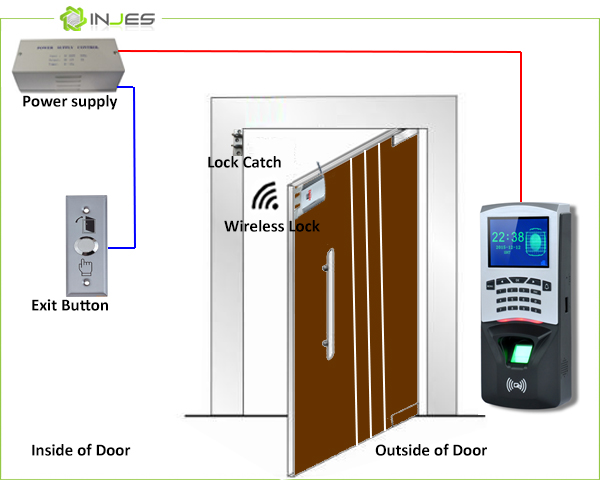

Configuration:

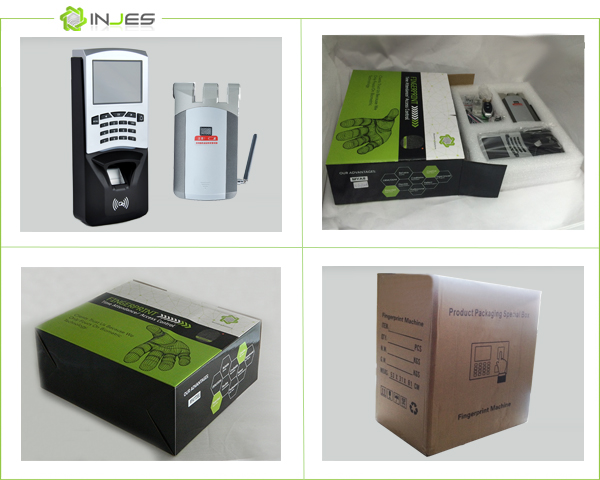

Package:
