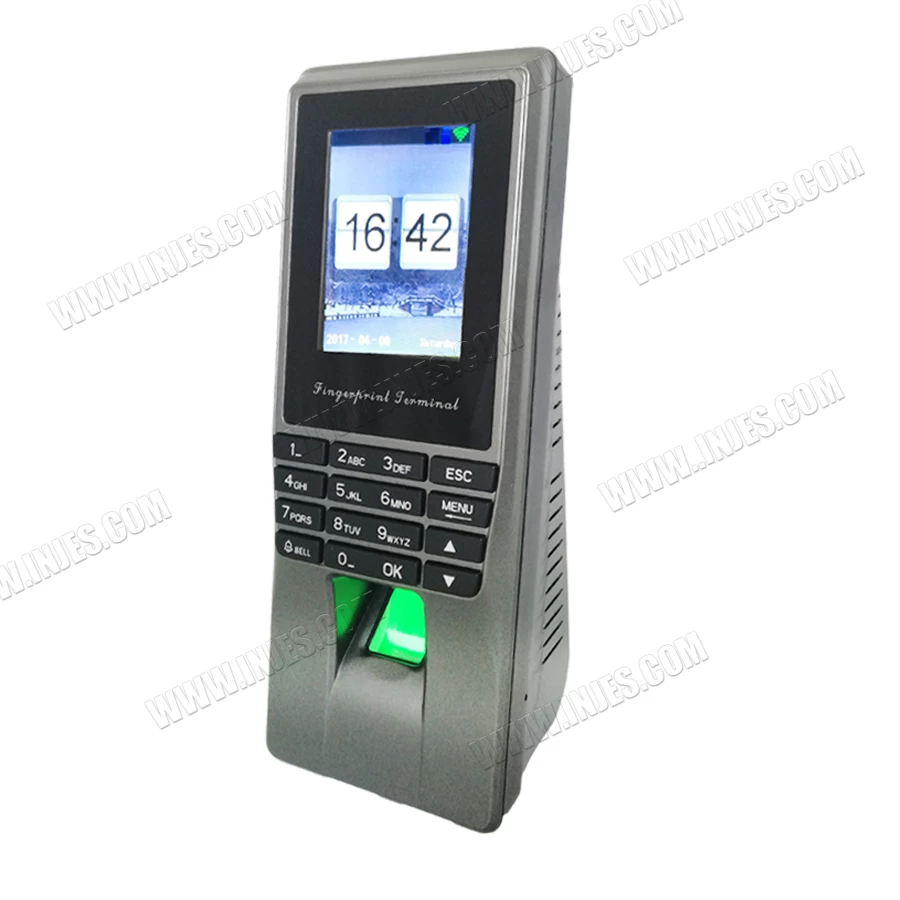

Product Name: Fingerprint Swipe Card Access Control Door Entry Systems for Building Security
Description:
The multi-function Web Based Fingerprint Swipe Card Access Control Door Entry Systems MYM8 unit combines the security of the INJES optical fingerprint recognition technologies with the power of a full blown, Linux based platform. With quick and accurate fingerprint verification, supports 1:1 and 1:N identification. And audible voice prompts guiding users during verification process.
INJES MYM8 Building Security Fingerprint Entry RFID Access Control System can store up to 3000 fingerprint templates and 20,000 transactions. The data can be backed up to a USB flash drive and can also be transferred to another reader in the absence of computer connectivity. As well, data sharing also can be achieved via INJESPRO 2.0 access control software.
Biometric Rfid Proximity Door Entry Access Control MYM8’s effective access management protects an enterprise by minimising the dangers and losses associated with unauthorised access. It also creates an environment in which more accurate payroll can be achieved.
Features:
．Standard Linux System
．Elegant Vertical shape design
．2.8 inch TFT colorfuly display
．Support WIFI function optional
．Support multi-languages firmware
．USB and TCP/IP ethernet communication
．With 3,000 fingerprint and 200,000 transactions
．Advanced access control Wiegand In, Out port
．Free SDK clients' software integration and development
．Accept firmware or software customization on basis of clients’ requirements
Specifications:
Fingerprint Capacity
|
3000 (Optional 5000)
|
Transaction Capacity
|
200,000
|
Hardware Platform
|
Atmel 9G25
|
Sensor
|
Scratch-proof Optical Sensor
|
Display
|
2.8 inch TFT Color LCD Screen
|
Communication
|
TCP/IP, USB Disk, WIFI (Optional)
|
Standard Functions
|
Fingerprint, ID card,password,3rd party electric lock, door sensor,
exit button, alarm, Door Bell, Wiegand input, Wiegand output
|
Optional Functions
|
MF card, Power supply,WIFI
|
FAR
|
0.0001%
|
FRR
|
0.01%
|
Speed
|
<1s
|
Verification mode
|
1:1,1:N
|
Power Supply
|
12V 3A
|
Operating Temperature
|
0 °C- 45 °C
|
Operating Humidity
|
20%-80%
|
Dimension
|
L198 *W78 *H62 (mm)
|
Gross Weight
|
1.2 KG
|

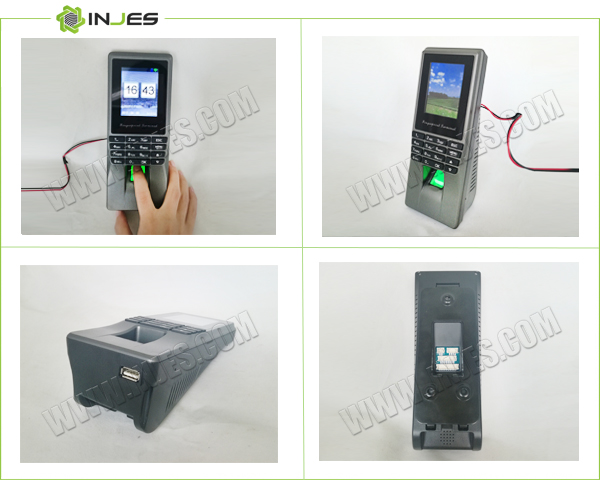

Introduction:

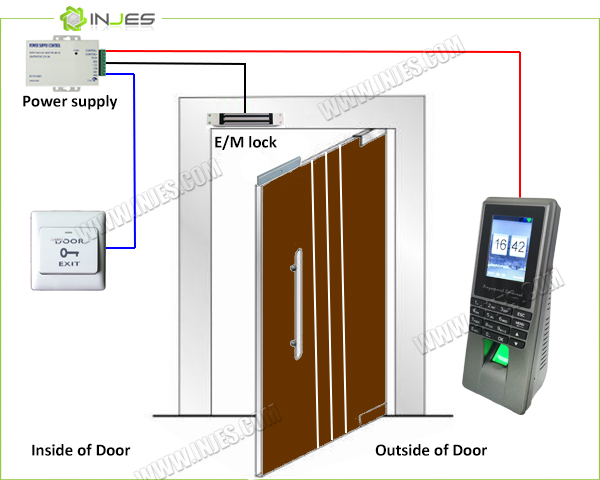

Configuration:

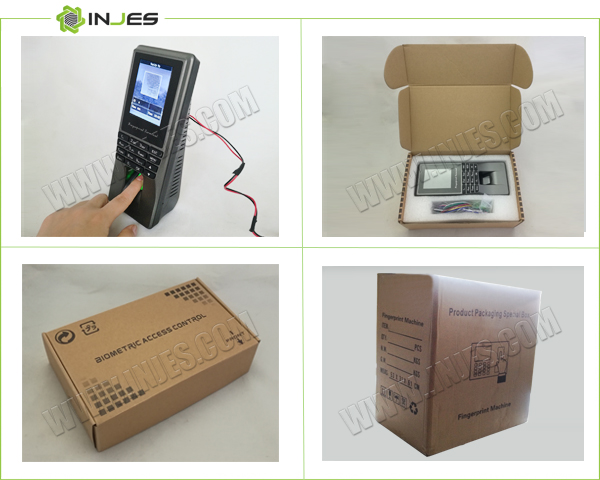

Package:
