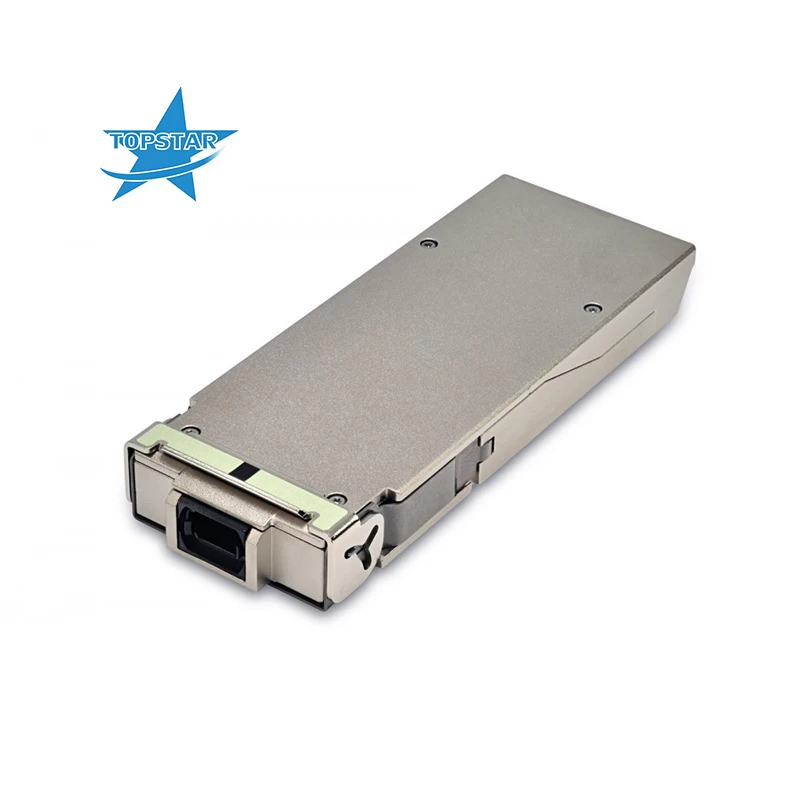

Product Description:
Distance:300 m
Data Rate (max):103.1 Gb/s
Protocol:100G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO (MTP24)
Wavelength:850nm Band
Product Feature:
Hot-pluggable CFP2 form factor
Supports 103.1 Gb/s aggregate bit rate
Power dissipation <4W
RoHS-6 compliant
Single 3.3V power supply
Maximum link length of 300m on OM3 Multimode Fiber (MMF)
Uncooled 10x 10Gb/s 850nm transmitter
10x SFI limiting electrical interface
Single MPO24 receptacle
MDIO management interface
Tx/Rx optical power monitoring functionality
Commercial case temperature range: 0°C to 70°C
