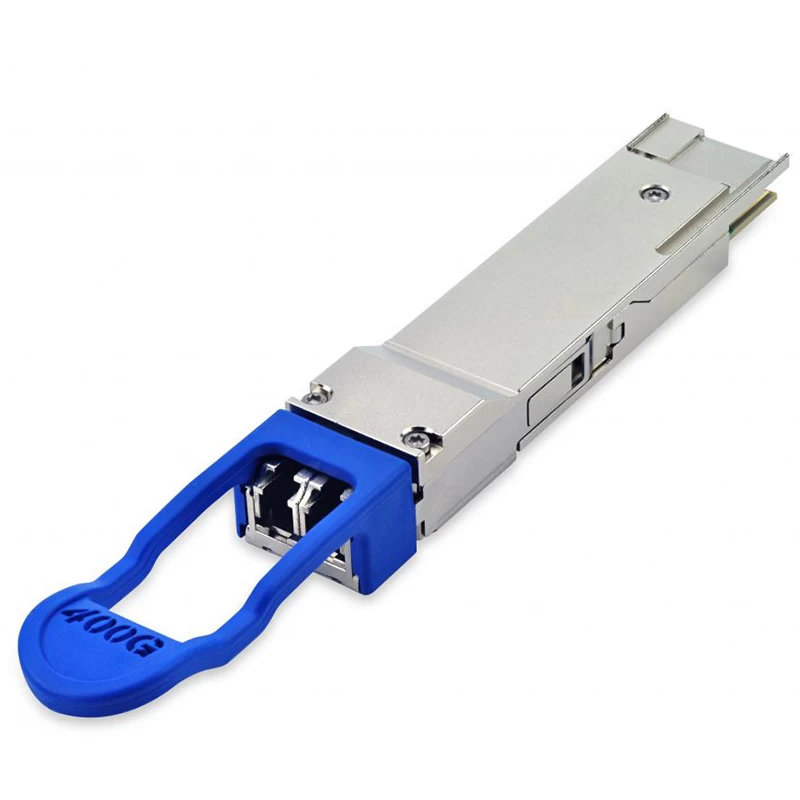

Finisar FTCD1323E1PCL 400GBASE-LR8 QSFP-DD Optical Transceiver

Form Factor:
QSFP-DD

Finisar’s FTCD1323E1PCL LR8 QSFP-DD transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the QSFP-DD MSA, QSFP28 MSA, IEEE P802.3bs and portions of IEEE P802.3bm. Digital diagnostic functions are available via the I2C interface, as specified by the MSA and Finisar Application Note AN-20xx.

  • Warranty1 Year
  • ConditionNew
  • Temperature0-70
  • Data Rate425 Gb/s
  • Distance10 km
  • Wavelength1310nm
  • Connector10 km
Facebook Twitter Pinterest LinkedIn 分享

Product Description:


Distance:10 km
Data Rate (max):425 Gb/s
Protocol:400G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:8x LWDM DFB Laser
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:1310nm Band

Product Feature:


Hot-pluggable QSFP-DD Type 2 form factor
Supports 425Gb/s aggregate bit rate
Power dissipation <13W
RoHS compliant
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
Aligned with IEEE 802.bs
8x50G PAM4 DFB-based LAN-WDM transmitter
8x50G PAM4 retimed 400GAUI-8 electrical interface
Duplex LC receptacles
I2C management interface
