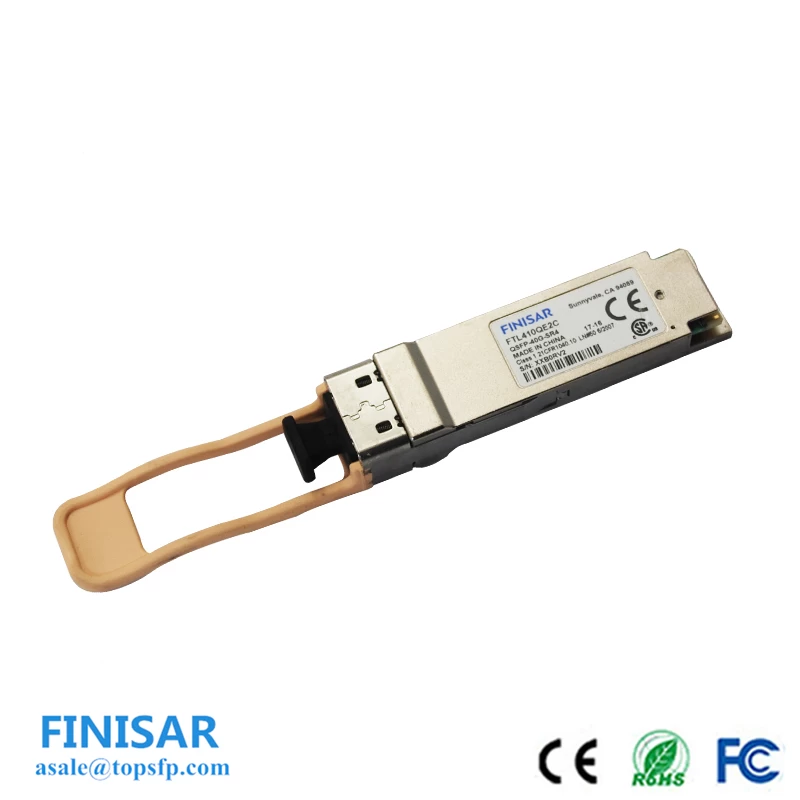

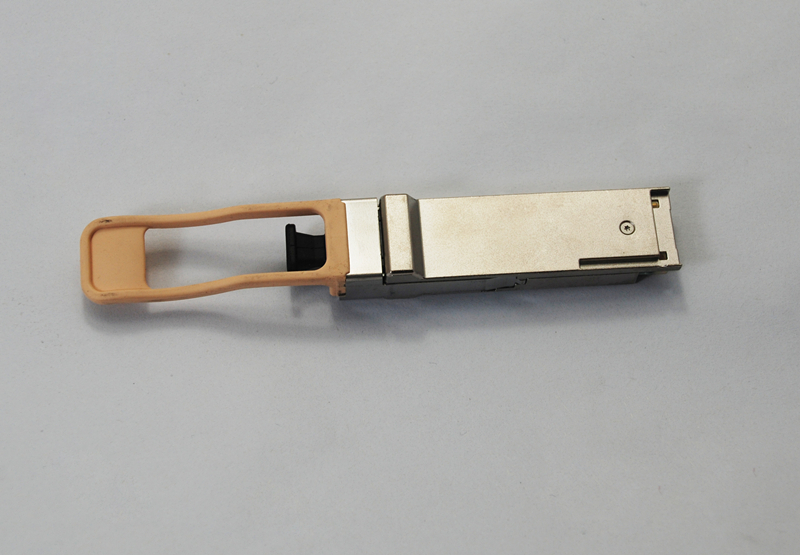

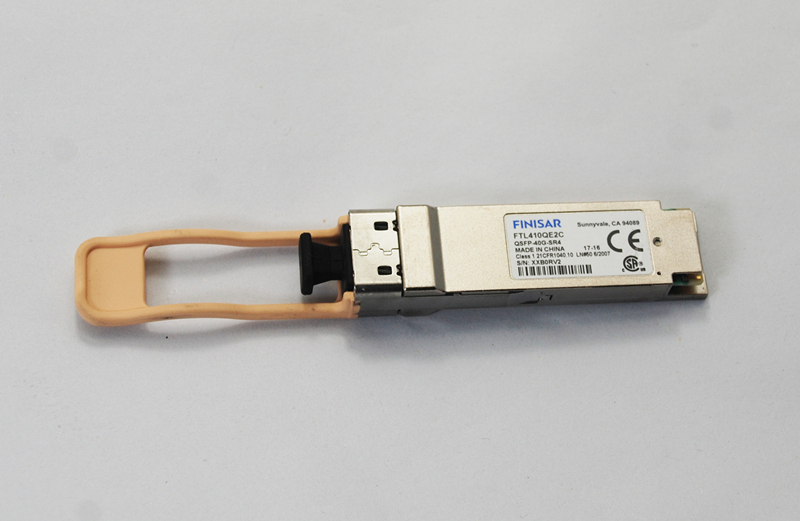

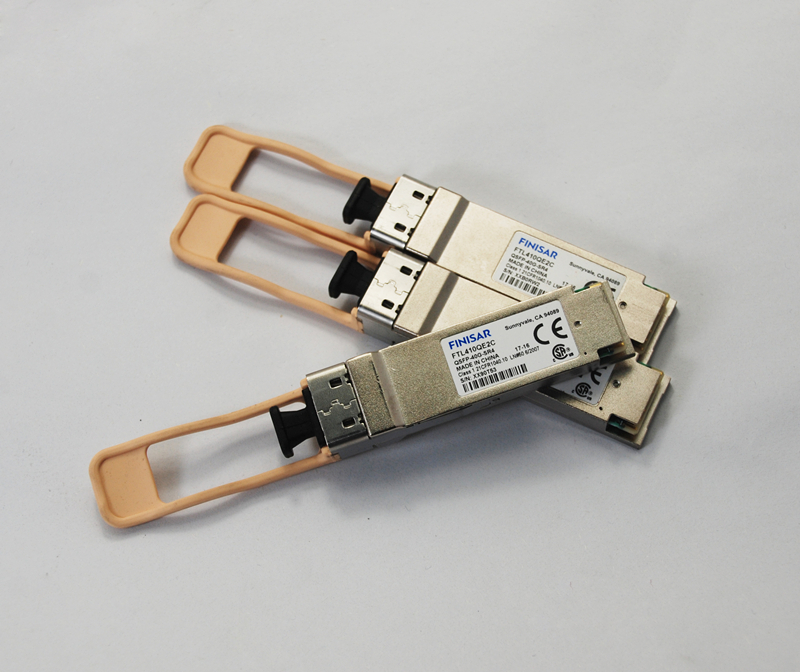

Finisar FTL410QE2C 40BASE-SR4 100m QSFP+ Gen2 Optical Transceiver Module
Finisar’s FTL410QE2C QSFP+ transceiver modules are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA1,2 and IEEE 802.3ba 40GBASE-SR43. Module-level digital diagnostic functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU4. See Finisar Application Note AN-2038 for more details5.
- Distance150m
- Data Rate40G
- Temperature0℃~70℃
- Warranty1 Year
- Wavelength850nm
- ConnectorMPO
Finisar FTL410QE2C 40BASE-SR4 100m QSFP+ Gen2 Optical Transceiver Module
Features
Four-channel full-duplex transceiver module
Hot Pluggable QSFP+ form factor
Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
Unretimed XLPPI electrical interface
Maximum power dissipation<1.5W
Reliable VCSEL array technology
Commercial operating case temperature range: 0ºC to 70ºC
Single 1x12 MPO receptacle
RoHS-6 Compliant
Applications
40GBASE-SR4 40G Ethernet
Breakout to 10GBASE-SR Ethernet
Proprietary interconnections
