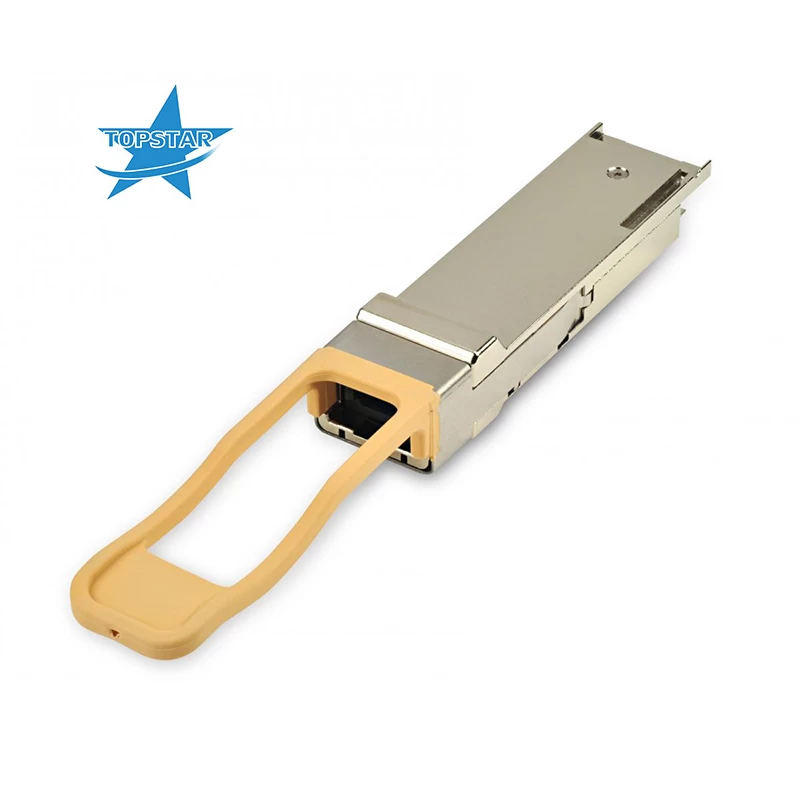

Finisar FTL410QE2N 40GBASE-SR4 100m Extended Temperature QSFP+ Optical Transceiver

Form Factor:
QSFP+

Finisar's FTL410QE2N QSFP+ transceiver modules are designed for use in 40 Gigabit per second links over multimode fiber.  They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4.  Module-level digital diagnostic functions are available via I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

  • Warranty3 Years
  • ConditionNew
  • Temperature-5-85
  • Data Rate41.2 Gb/s
  • Distance100m
  • Wavelength850nm
  • ConnectorMPO
Facebook Twitter Pinterest LinkedIn 分享

Product Description:


Distance:100 m
Data Rate (max):41.2 Gb/s
Protocol:10x Fibre Channel Compliant 40G Ethernet Compliant IB QDR Compatible
Low End Case Temperature (°C):-5
High End Case Temperature (°C):85
Diagnostics:N/A
Transmitter:4x VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO
Wavelength:850nm Band

Product Feature:


Four-channel full-duplex transceiver module
Hot-pluggable QSFP+ form factor
Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
Unretimed XLPPI electrical interface
Maximum power dissipation < 1.5W
Reliable VCSEL array technology
Extended operating case temperature range -5°C to 85°C
Single 1x12 MPO receptacle
RoHS-6 compliant
