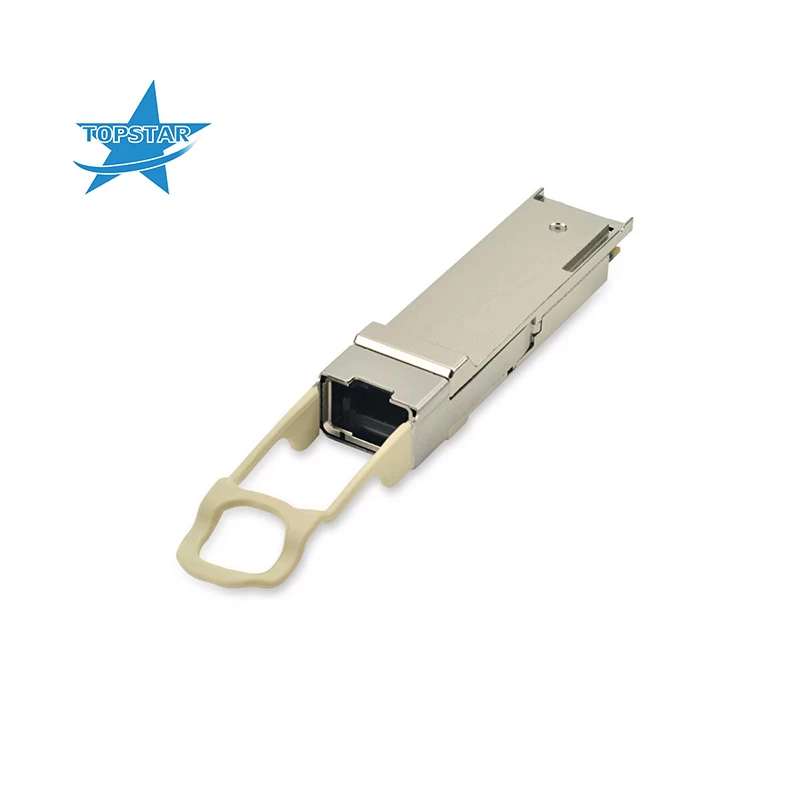

Finisar FTL414QB2C 56G InfiniBand FDR/SAS 3.0/40G Ethernet 60m QSFP+ Optical Transceiver


Form Factor:
QSFP+

Finisar's FTL414QB2C QSFP+ transceiver modules are designed for use in Ethernet, SAS, and Infiniband links over multimode fiber. They are compliant with the QSFP+ MSA and the Ethernet, SAS and Infiniband architecture specifications. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

  • Warranty3 Years
  • ConditionNew
  • Temperature0-70
  • Data Rate56 Gb/s
  • Distance60 m
  • WavelengthMPO
  • Connector850nm
Facebook Twitter Pinterest LinkedIn 分享

Product Description:


Distance:60 m
Data Rate (max):56 Gb/s
Protocol:10x Fibre Channel Compliant 40G Ethernet Compliant IB QDR Compatible
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:N/A
Transmitter:4x VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO
Wavelength:850nm Band


Product Feature:


Four-channel full-duplex transceiver module
Hot-pluggable QSFP+ form factor
Maximum link length of 60m on OM3 Multimode Fiber (MMF) and 100m on OM4 MMF
Up to 14.025Gb/s per channel
Unretimed XLPPI electrical interface
Maximum power dissipation < 1.5W
Reliable VCSEL array technology
Extended operating case temperature range 0°C to 70°C
Single 1x12 MPO receptacle
RoHS-6 compliant
