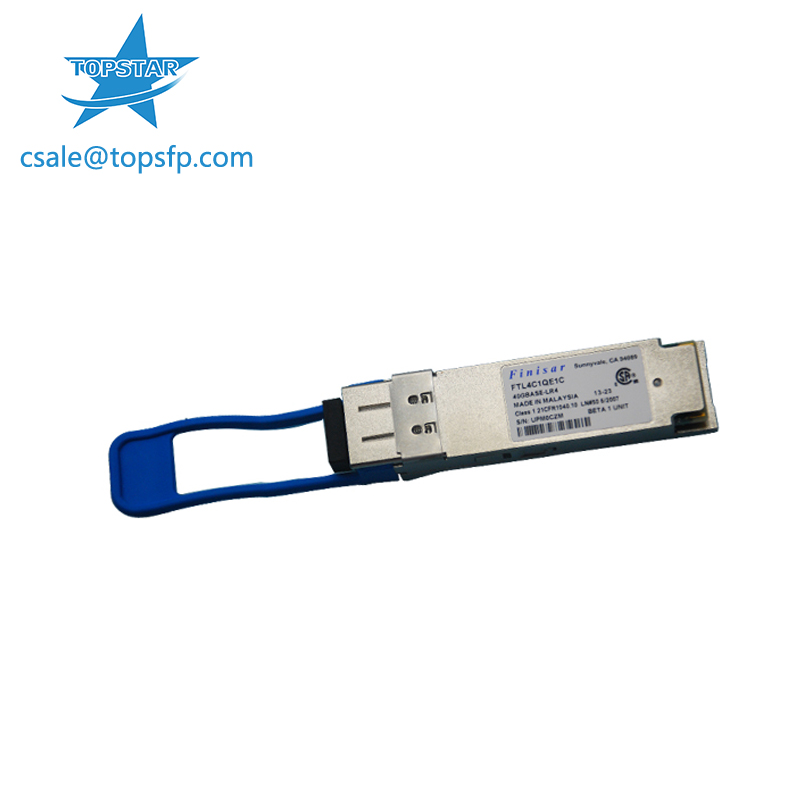

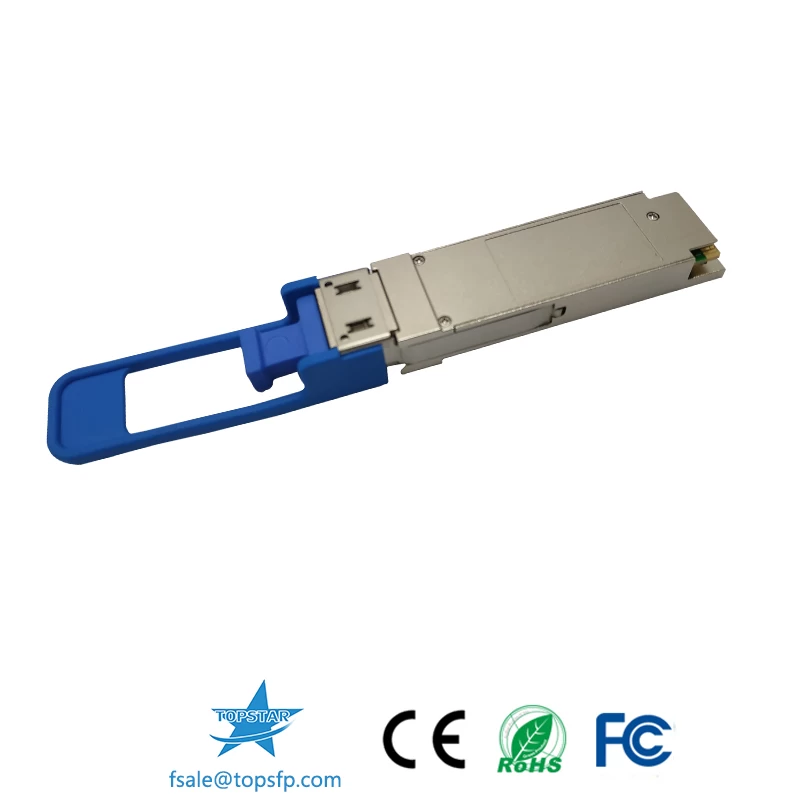

Finisar FTL4C1QL2C 40GBASE-LR4 40G 1310nm 2km Lite QSFP+
Finisar FTL4C1QL2C 40G Ethernet LM4 2km Universal Duplex SMF/MMF Gen2 QSFP+ Optical Transceiver Product Specification.
Features
|
Part number
|
Finisar FTL4C1QL2C
|
|
Data Rate
|
40G
|
|
Wavelength
|
1310nm
|
|
Distance
|
2KM
|
|
Fiber Type
|
Single-mode Fiber
|
|
Connector
|
LC
|
|
Warranty
|
1-year
|
|
Form Factor
|
QSFP+
|
Temperature
|
0-70℃
|
|
Power Supply
|
3.3V
|
|
Package
|
1 pc/CT
|
Details
Finisar’s FTL4C1QL2C QSFP+ optical transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the QSFP+ MSA and are compatible with IEEE 802.3ba 40GBASE-LR4 up to 2km. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.
Application
