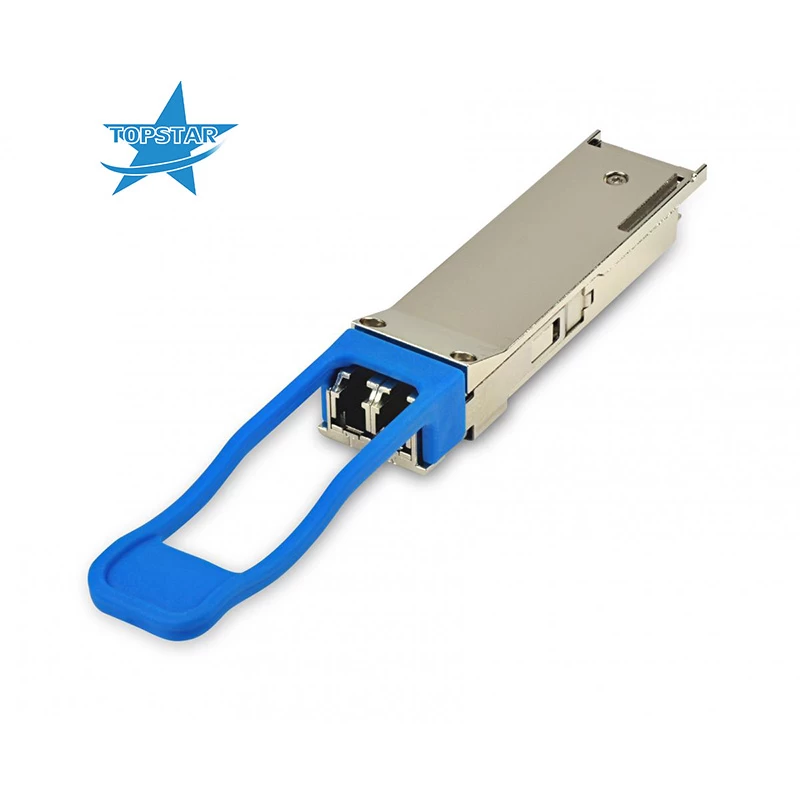

Finisar FTL4C1QM1C 40GBASE-LR4 and OTU3 Multirate 10km QSFP+ Optical Transceiver

Form Factor:
QSFP+

Finisar's FTL4C1QM1C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links and 4x10G OTN client interfaces over single mode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 requirements specified in ITU-T Recommendation G.695. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The transceiver is RoHS-6 compliant and lead-free per Directive 2011/65/EU,

  • Warranty1 Year
  • ConditionNew
  • Temperature0-70
  • Data Rate44.6 Gb/s
  • Distance10km
  • Wavelength1310nm
  • ConnectorLC
Facebook Twitter Pinterest LinkedIn 分享

Product Description:


Distance:10 km
Data Rate (max):44.6 Gb/s
Protocol:OTN OTU3 Compliant 40G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:N/A
Transmitter:4x DFB Laser
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:1310nm Band

Product Feature:


Hot-pluggable QSFP+ form factor
Supports 44.6 Gb/s aggregate bit rates
Power dissipation < 3.5W
RoHS-6 compliant (lead-free)
Commercial temperature range 0°C to 70°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
Uncooled 4x10Gb/s CWDM transmitter
XLPPI electrical interface
Duplex LC receptacles
Built-in digital diagnostic functions
