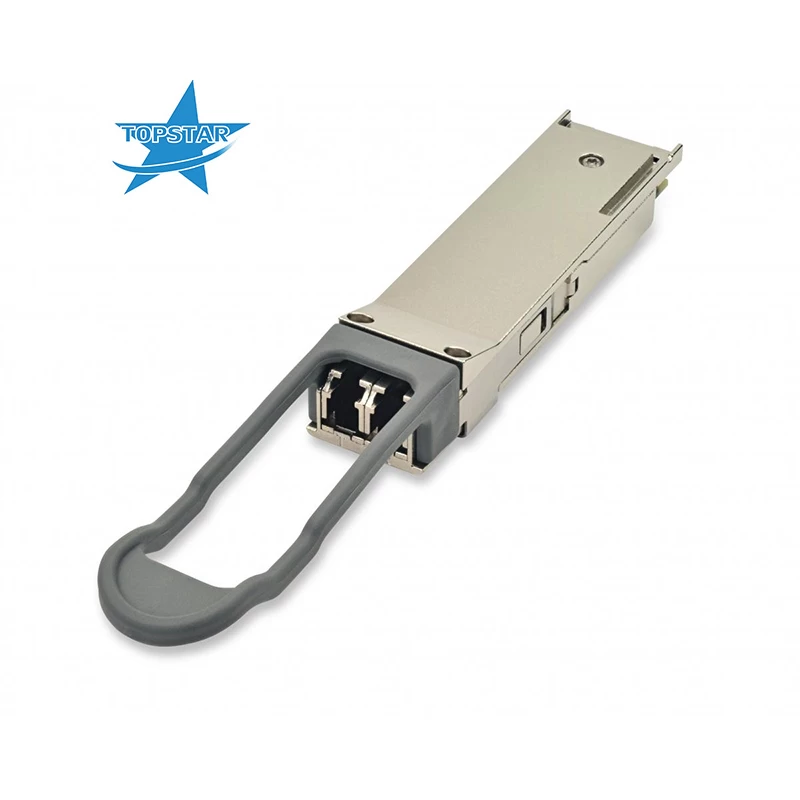

Finisar FTL4S1QE2C 40GE 300m SWDM4 Gen2 QSFP Optical Transceiver

Form Factor:
QSFP+

Finisar’s FTL4S1QE2C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over duplex multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba XLPPI electrical interface. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

  • Warranty3 Years
  • ConditionNew
  • Temperature0-70
  • Data Rate41.2 Gb/s
  • Distance300m
  • Wavelength850nm
  • ConnectorLC
Facebook Twitter Pinterest LinkedIn 分享


Product Description:


Distance:300 m
Data Rate (max):41.2 Gb/s
Protocol:40G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:4x SWDM VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:850nm Band

Product Feature:


Hot-pluggable QSFP+ form factor
300m operation over duplex OM3 MMF and 400m over duplex OM4 MMF
Supports 41.2 Gb/s aggregate bit rates
Uncooled 4x10 Gb/s SWDM transmitter
Built-in SWDM mux and demux
Power dissipation < 3.5W
Commercial case temperature range: 0°C to 70°C
XLPPI electrical interface
Duplex LC receptacles
Built-in digital diagnostic functions, including Tx/Rx power monitoring
