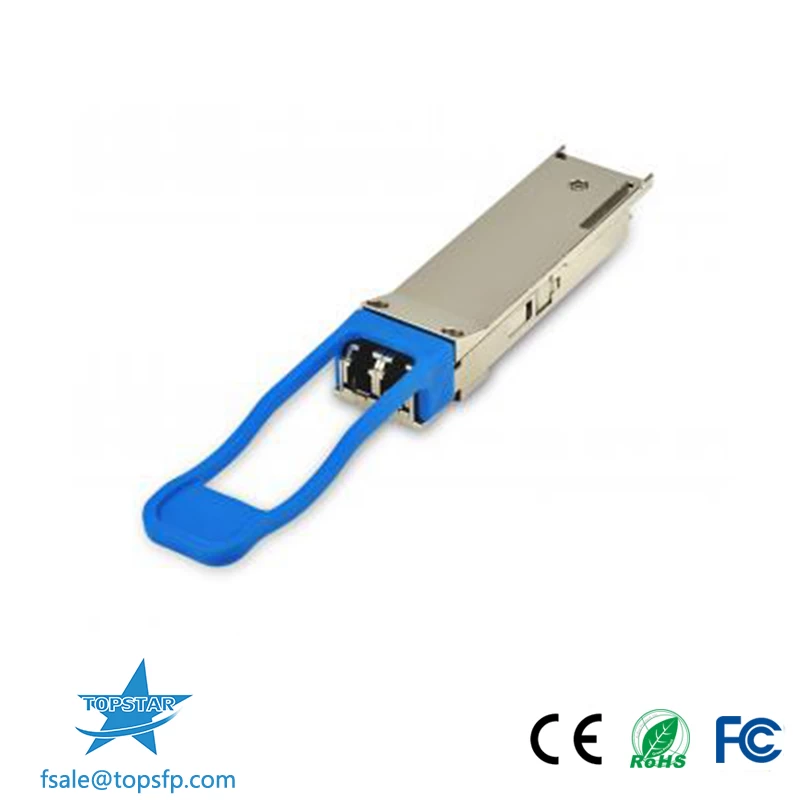

Finisar FTLC1151SDPL 100GBASE-LR4 and OTU4 10km QSFP28 OTN OTU4 Compliant 100G Ethernet Compliant
Finisar’s FTLC1151SDPL QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 10 km of single mode fiber, based on the LR4 wavelength grid.
Features
|
Part number
|
Finisar FTLC1151SDPL
|
|
Data Rate
|
100GBase
|
|
Wavelength
|
1310nm
|
|
Distance
|
10KM
|
|
Fiber Type
|
Single-mode Fiber
|
|
Connector
|
MPO
|
|
Warranty
|
1-year
|
|
Form Factor
|
QSFP28
|
Temperature
|
0-70℃
|
|
Power Supply
|
3.3V
|
|
Package
|
1 pc/CT
|
Feature
-
Hot-pluggable QSFP28 form factor
-
Supports 103.1Gb/s aggregate bit rate
-
3.5W maximum power dissipation
-
RoHS-6 compliant
-
Single 3.3V power supply
-
Maximum link length of 10km on Single Mode Fiber (SMF)
-
4x25Gb/s 1310nm DFB-based transmitter
-
4x25G electrical interface
-
Full digital diagnostics functions
-
Integrated 4-channel WDM mux/demux for duplex LC operation
-
Duplex LC receptacles
Application
-
100GBASE-LR4 100G Ethernet
-
OTN OTU4 4I1-9D1F
