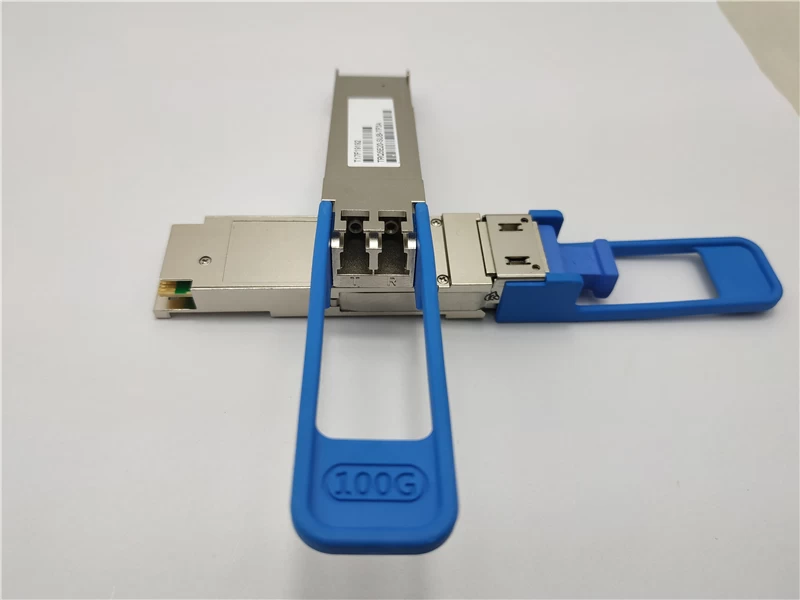

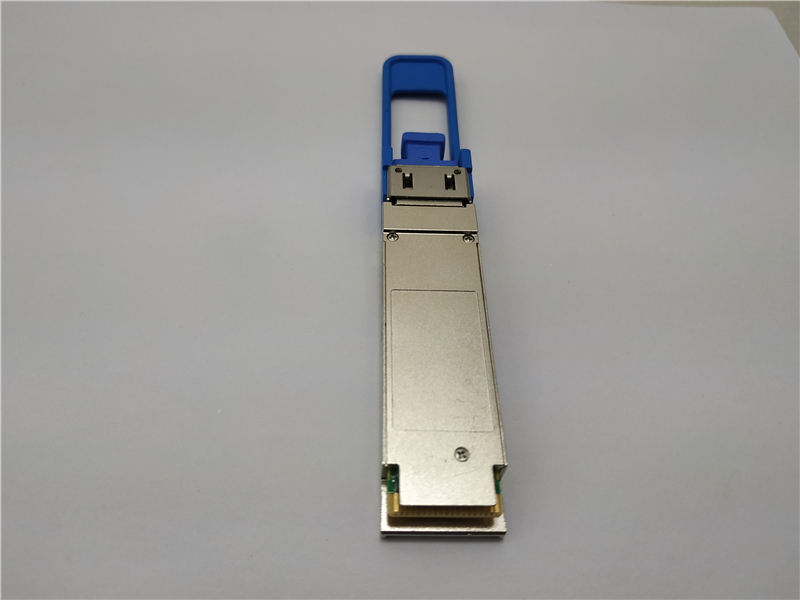

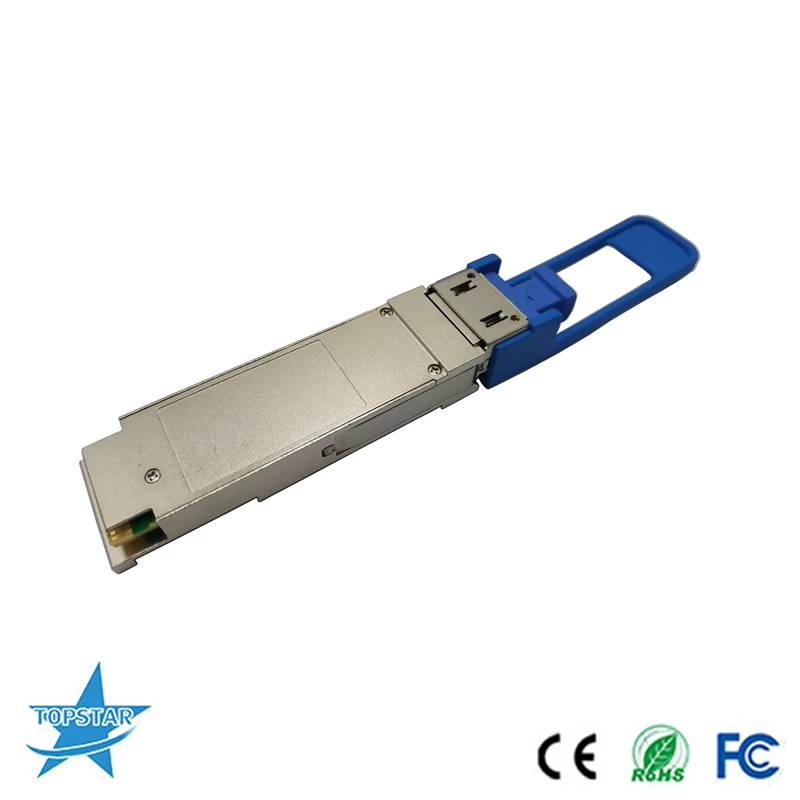

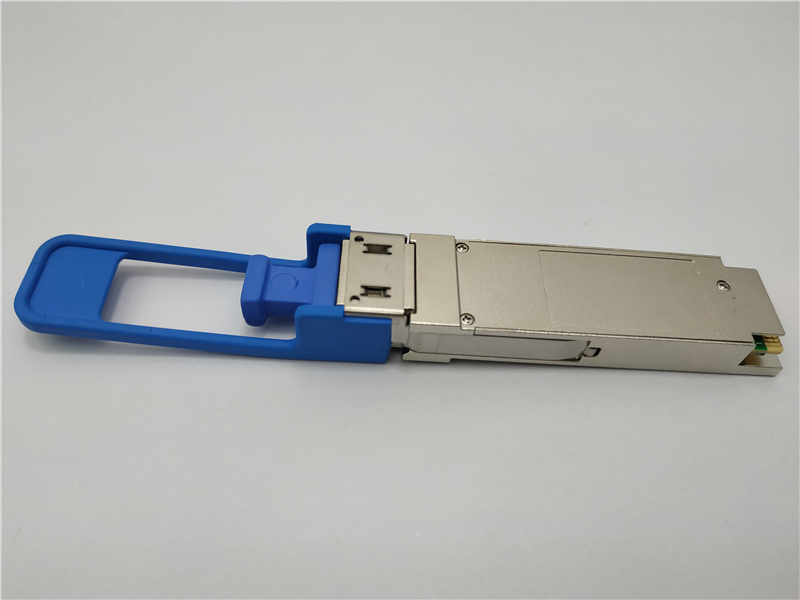

Finisar FTLC1152SGPL compatible 100GBASE-IR4 CWDM QSFP 2KM QSFP28 module
This product is a 100Gb/s transceiver module designed for optical communication applications compliant with the QSFP MSA,CWDM4 MSA and portions of IEEE P802.3bm standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of CWDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of CWDM optical signals and then converts them to 4 output channels of electrical data.
- WavelengthCWDM
- Distance2km
- Data Rate100G
- Temperature0℃~70℃
- Warranty3 Years
- ConnectorLC
Finisar FTLC1152SGPL compatible 100GBASE-IR4 CWDM QSFP 2KM QSFP28 module
Features
4 channels full-duplex transceiver modules
Transmission data rate up to 26Gbps per channel
4 x 26Gb/s DFB-based CWDM uncooled transmitter
4 channels PIN ROSA
Internal CDR circuits on both receiver and transmitter channels
Low power consumption <3.5W
Hot Pluggable QSFP form factor
Up to reach 2km for G.652 SMF[with KR4 FEC]
Duplex LC receptacles
Built- in digital diagnostic functions
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant(lead free)
Applications
Data Center Interconnect.
100G CWDM4 applications.
Infiniband EDR interconnects.
Enterprise networking
Professional Service
Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.
Compatibility:
Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.
OEM& ODM:
Customized label and package , OEM and ODM service offered.
