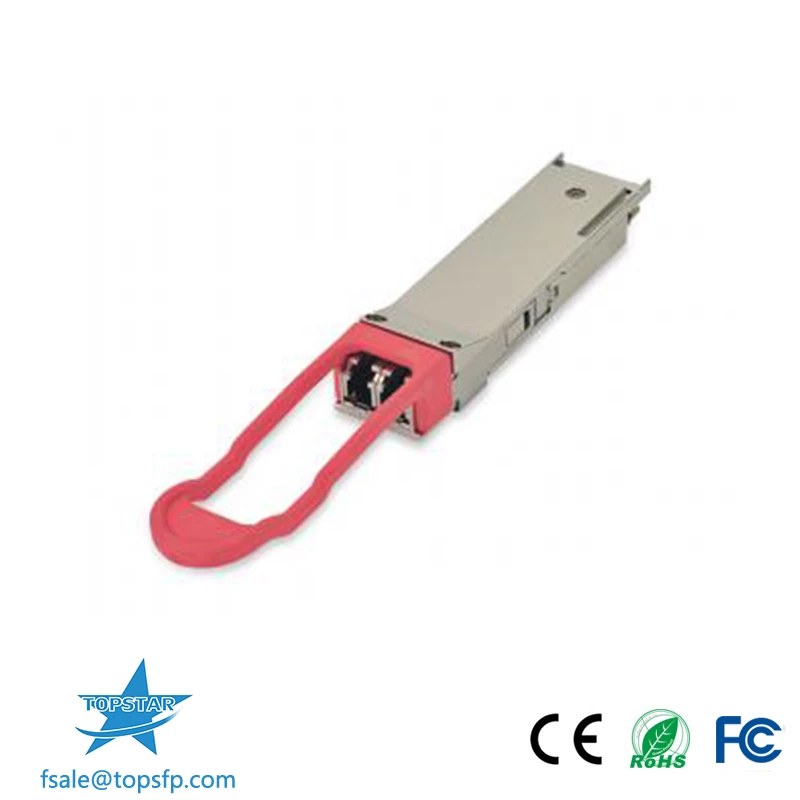

Finisar FTLC2151SDPL 100G 4WDM Multi-Rate 1310nm 40km QSFP28 OTN OTU4 100G Ethernet
Finisar’s FTLC2151SDPL QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 40 km of single mode fiber, based on the LR4 wavelength grid.
Features
|
Part number
|
Finisar FTLC2151SDPL
|
|
Data Rate
|
100GBase
|
|
Wavelength
|
1310nm
|
|
Distance
|
40KM
|
|
Fiber Type
|
Single-mode Fiber
|
|
Connector
|
MPO
|
|
Warranty
|
1-year
|
|
Form Factor
|
QSFP28 40KM
|
Temperature
|
0-70℃
|
|
Power Supply
|
3.3V
|
|
Package
|
1 pc/CT
|
Feature
-
Hot-pluggable QSFP28 form factor
-
Supports 103.1Gb/s and 112 Gb/s aggregate bit rate
-
Power dissipation <4.5W
-
RoHS-6 compliant
-
Commercial case temperature range 0°C to 70°C
-
Single 3.3V power supply
-
Maximum link length of 40km on Single Mode Fiber (SMF) with FEC
-
Maximum link length of 30km on Single Mode Fiber (SMF) without FEC
-
4x28Gb/s DFB-based LAN-WDM transmitter
-
4x28G retimed electrical interface
-
Duplex LC receptacles
-
I2C management interface
Application
-
OTN OTU4 4L1-9D1F
-
100G 4WDM applications with FEC
