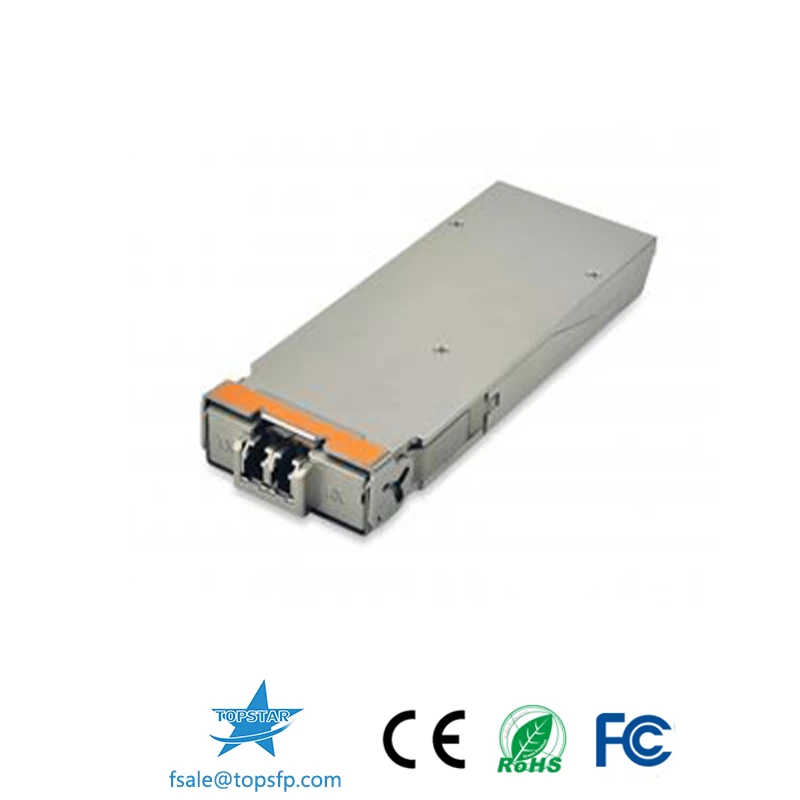

Finisar FTLC3321x3NL FTLC3322U3NL CFP2 200G/100G Tunable C-Band CFP2-ACO Coherent Optical Transceiver
Finisar FTLC3321x3NL FTLC3322U3NL CFP2 transceiver modules are designed for use in 100 Gigabit Ethernet links on single mode fiber, based on the C-band wavelength grid.
Features
|
Part number
|
Finisar FTLC3321x3NL
|
|
Data Rate
|
100/200 GBase CFP2
|
|
Wavelength
|
C-Bnad
|
|
Distance
|
2000KM
|
|
Fiber Type
|
Single-mode Fiber
|
|
Connector
|
MPO
|
|
Warranty
|
1-year
|
|
Form Factor
|
CFP2-ACO
|
Temperature
|
0-70℃
|
|
Power Supply
|
3.3V
|
|
Package
|
1 pc/CT
|
Details
Finisar's FTLC3322x3NL CFP2 Analog Coherent Optics (ACO) transceiver module is designed to support high density line card applications with the coherent Digital Signal Processor (DSP) on the host board. The Class 2 FTLC3322U3NL module with a linear RF interface can support spectral shaping as well as multiple modulation formats to achieve optimized balancing of transmission reach and data rate requirements. The module can be tuned across the full C-band, with optional Flexgrid® support. The FTLC3322U3NL transceiver conforms to the OIF-CFP2-ACO-01.0 implementation agreement. The optical transceiver is compliant per RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.
