Product Description:
Distance:100 m
Data Rate (max):103.1 Gb/s
Protocol:100G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:4x SWDM VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:850nm Band
Product Feature:

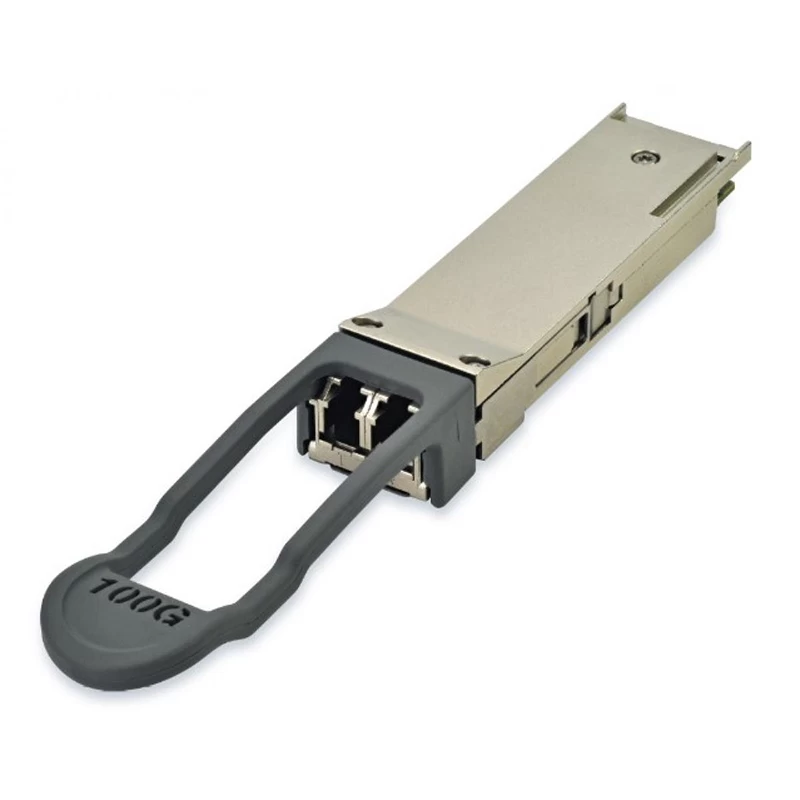

Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rate
Power dissipation <3.5W
RoHS compliant
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 75m/100m/150m on OM3/OM4/OM5 Duplex Multimode Fiber (MMF)
4x25Gb/s 850nm VCSEL-based transmitter
4x25G CAUI-4 electrical interface
Duplex LC receptacles
I2C management interface
