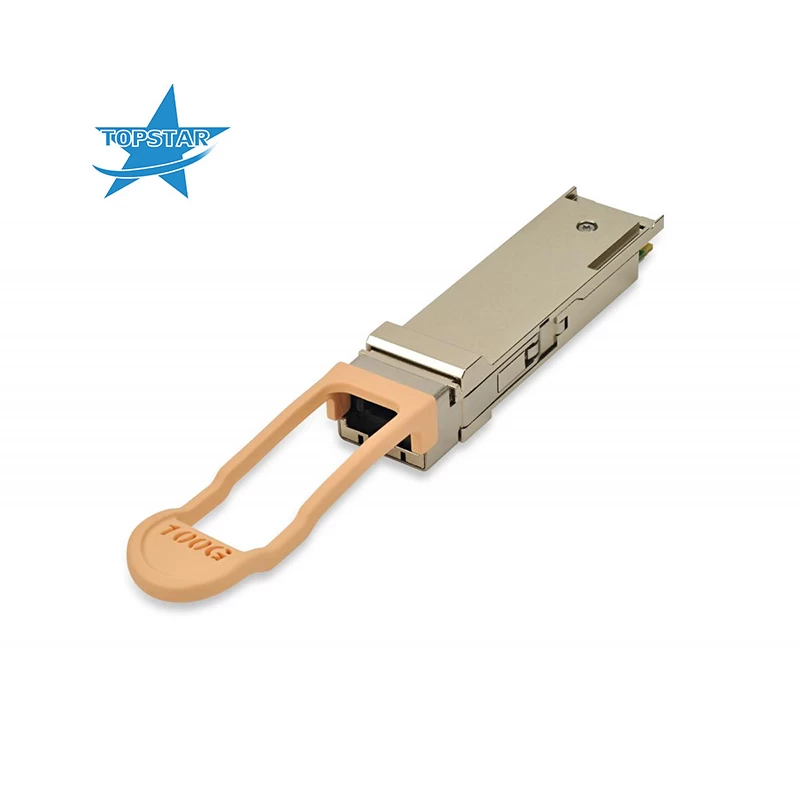

Product Description:
Distance:40 m
Data Rate (max):103.1 Gb/s
Protocol:25G Ethernet Compliant 100G Ethernet Compliant IB EDR Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:4x VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO (MTP12)
Wavelength:850nm Band
Product Feature:
Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rate
Supports operation without host FEC for lowest latency and minimal host power dissipation
Maximum link length of 30m on OM3 and 40m on OM4 without host FEC
Maximum link length of 50m on OM3 and 70m on OM4 with host Clause 74 (Firecode) FEC
Maximum link length of 70m on OM3 and 100m on OM4 with host Clause 91 (RS) FEC
Power dissipation <3.5W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
4x25Gb/s 850nm VCSEL-based transmitter
4x25G electrical interface
Single MPO12 receptacle
RoHS-6 compliant
I2C management interface
