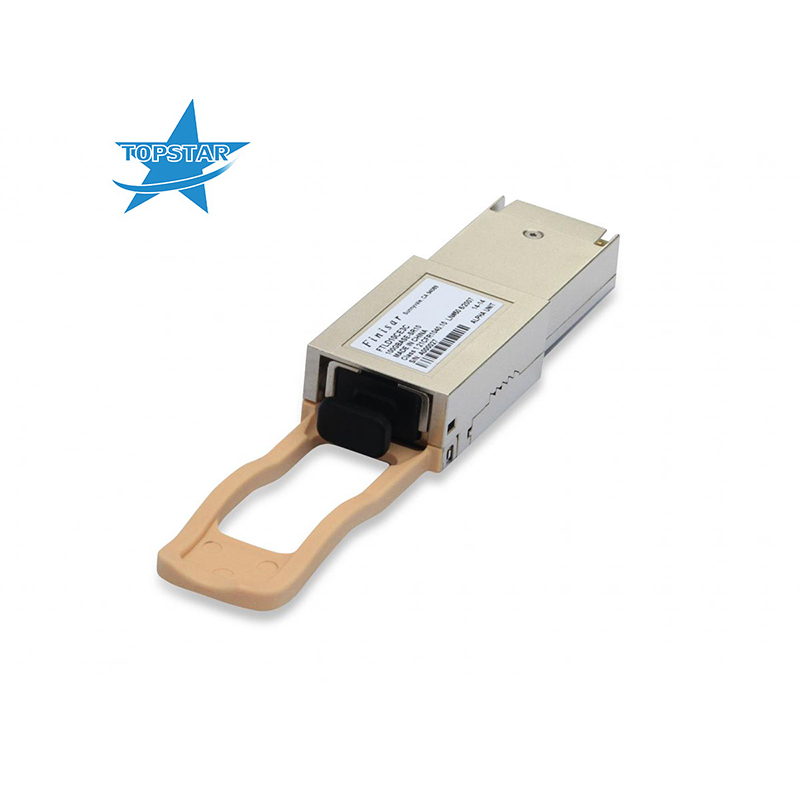

Finisar FTLD10CE3C 12x11.3G (120G) 100m Gen3 CXP Optical Transceiver

Form Factor:
CXP

Finisar's FTLD10CE3C third-generation CXP optical transceiver modules are designed for use in data center, core-routing, and high-performance computing applications up to 120 Gigabit per second links over multimode fiber.  They are compliant with the InfiniBand Trade Association (IBTA) CXP Specification, IEEE 802.ba 100GBASE-SR10 and CPPI interfaces supporting 12 parallel, bi-directional data channels at rates from 1G/bs to 11.3Gb/s per channel.  The optical transceiver is compliant per the RoHS Directive 2011/65/EU.




  • Warranty1 Year
  • ConditionNew
  • Temperature0-70
  • Data Rate150 Gb/s
  • Distance100m
  • Wavelength850nm
  • ConnectorMPO

Product Description:


Distance:100 m
Data Rate (max):150 Gb/s
Protocol:10x Fibre Channel Compatible 10 Gigabit Ethernet Compatible 40G Ethernet Compatible 100G Ethernet Compliant IB QDR Compliant IB SDR Compatible
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO
Wavelength:850nm Band


Product Feature:


12-channel full-duplex transceiver module
Hot Pluggable CXP footprint
Maximum link length of 100m on OM3 Multimode Fiber (MMF)
Multirate capability: 1.06Gb/s to 11.3b/s per channel
Unretimed CPPI electrical interface
Requires 3.3V power supply only
Low power dissipation: <3.5W
Reliable VCSEL array technology
Digital Diagnostics including Tx and Rx optical power monitoring
RoHS-6 Compliant (lead-free)
Commercial operating case temperature range: 0°C to 70°C
