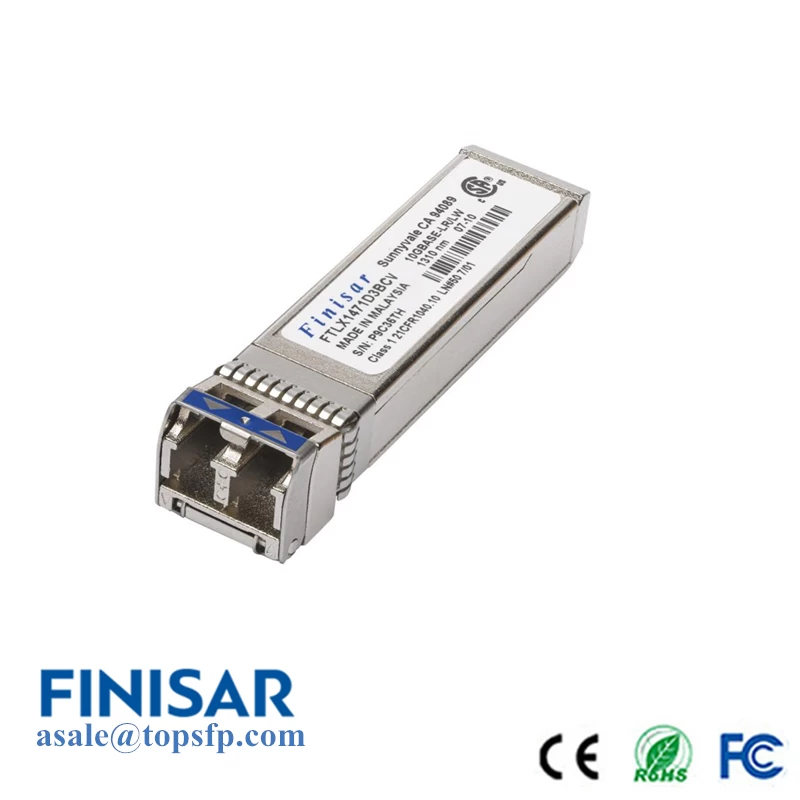

Finisar FTLX1471D3BCV 1G/10G Dual Rate SFP 1310nm Optical Module 10km
Finisar’s FTLX1471D3BCV 1G/10G Dual-Rate SFP+ transceivers are designed for use in 1-Gigabit and 10-Gigabit Ethernet links up to 10km over singlemode fiber. They are compliant with SFF-84311 , IEEE 802.3-2005 10GBASE-LR/LW2 and 1000BASE-LX3 .
- Wavelength1310nm
- Distance10km
- Data Rate10G
- Temperature-5℃~70℃
- Warranty1 Year
- ConnectorDual LC
Finisar FTLX1471D3BCV 1G/10G Dual Rate SFP 1310nm Optical Module 10km
Features
Hot-pluggable SFP+ footprint
Supports rate selectable 1.25 Gb/s or 9.95 to 10.3 Gb/s bit rates
Power dissipation < 1W
RoHS-6 compliant (lead-free)
Commercial temperature range -5°C to 70°C
Single 3.3V power supply
Maximum link length of 10km
Uncooled 1310nm DFB laser
Receiver limiting electrical interface
Duplex LC connector
Built-in digital diagnostic functions
Applications
1000BASE-LX 1G Ethernet
10GBASE-LR/LW 10G Ethernet
