Finisar FWLF FTL4E1QE1C 40GBASE-ER4 1310nm Multirate 40km QSFP+ SFP QSFP XFP Module

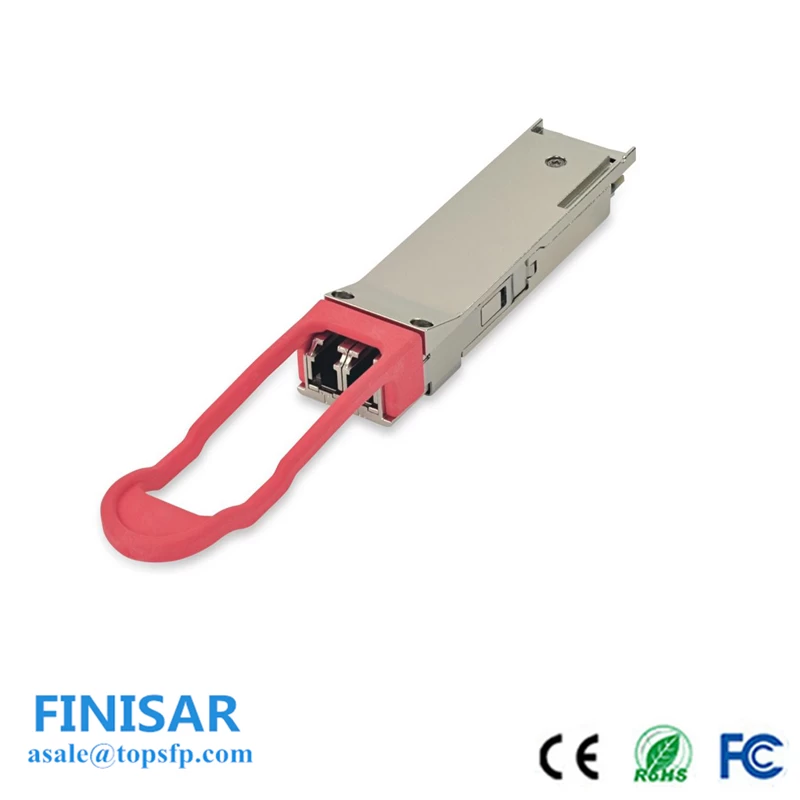

Finisar’s FTL4E1QE1C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the QSFP+ MSA1 and IEEE 802.3bm 40GBASE-ER42. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The transceiver is RoHS compliant per Directive 2011/65/EU3 and Finisar Application Note AN-20384.

  • WavelengthCWDM
  • Distance40km
  • Data Rate40G
  • Temperature0℃~70℃
  • Warranty1 Year
  • ConnectorDual LC
Facebook Twitter Pinterest LinkedIn 分享

Finisar FWLF FTL4E1QE1C 40GBASE-ER4 1310nm Multirate 40km QSFP+ SFP QSFP XFP Module


Features

Hot-pluggable QSFP+ form factor

Supports 39.8 Gb/s to 41.3 Gb/s aggregate bit rates

Power dissipation < 3.5W

18.5 dB link insertion loss budget

RoHS-6 compliant

Commercial case temperature range 0°C to 70°C

Single 3.3V power supply

Maximum link length of 40km on Single Mode Fiber (SMF)

Uncooled 4x10Gb/s CWDM transmitter

XLPPI electrical interface

Duplex LC receptacles

Built-in digital diagnostic functions, including Tx/Rx power monitoring


Applications

40GBASE-ER4 40G Ethernet
