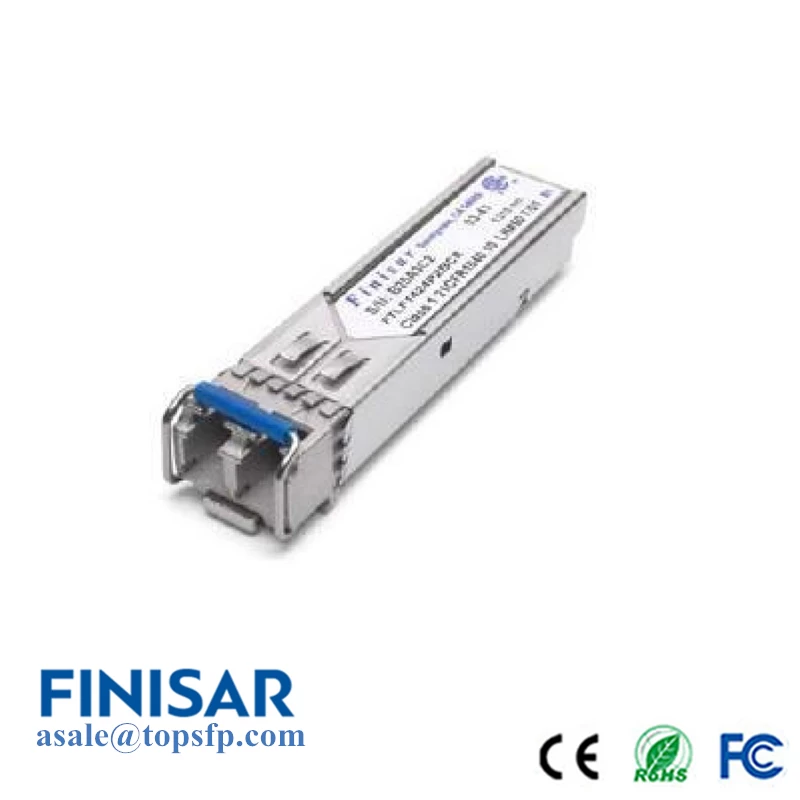

Finisar FWLF1523P1x51 FWLF1523P1C51 FWLF1523P1N51 125/155Mbps 1511nm CWDM Optical Supervisory Channel
Features
125/155 Mbps bi-directional data links
35dB Link Budget over the commercial temperature range
1511nm uncooled DFB laser
Two versions for commercial and extended operating temperature ranges
Hot-pluggable SFP footprint
Built-in digital diagnostic functions
Duplex LC connector
Very low jitter
Metal enclosure, for lower EMI
Single 3.3V power supply
Low power dissipation <1W typical, over the extended temperature range
Applications
Optical Supervisory Channel for SONET OC-3 and Fast Ethernet
