Exterior Aluminum Composite Panel Wooden Cladding ACP
1. Production Description:
Characteristics:
1) Excellent fireproof property
2) Super peeling strength
3) Perfect cold resistance performance
4) Excellent surface flatness and smoothness
5) Superior weather, corrosion, pollutant resistance
6) Even coating, various colors
7) Superior impact resistance
8) Lightweight and easy to process
9) Easy to maintain
Application;
1) Gas piping, cables, building materials, etc (this product fills a gap in the domestic construction materials field, with performance indexes superior to panels manufactured overseas)
2) Curtain wall decoration for buildings where security is important, such as airports, hospitals and research centers
3) Curtain wallboards for outside walls of normal buildings
4) Renovations of old buildings and movable houses
5) Reformation and decoration for indoor walls, ceilings, bathrooms, kitchens and balconies
6) Facades
7) Billboards, exhibition desks and notice boards
8) Wallboards and ceilings for tunnels
9) Materials for industrial application, car and ship bodies
|
Product Item
|
Aluminum Composite Panel
|
|
Panel Thickness
|
2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 18mm
|
|
Aluminum Skin Thickness
|
0.08/0.10/0.15/0.20/0.21/0.25/0.30/0.35/0.40/0.45/0.50mm, as per request
|
|
Width
|
2440mm, 3200mm,4000mm, 5000mm, 6000mm, as per request
|
|
Standard Size
|
1220*2440mm
|
|

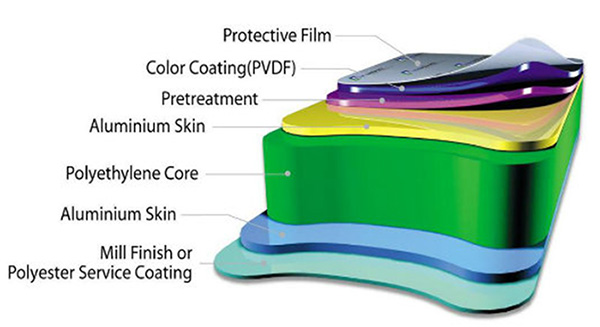

Inner Core
|
Nontoxic PE core, Half unbreakable, Unbreakable, Virgin LDPE, FR Core
|
|
Top Coating Type
|
PE, PVDF, FEVE, NANO, Anti-scratch, Fireproof
|
|
Back Coating Type
|
Mill finish , Color coated (PE, Epoxy), as per request
|
|
Color Range
|

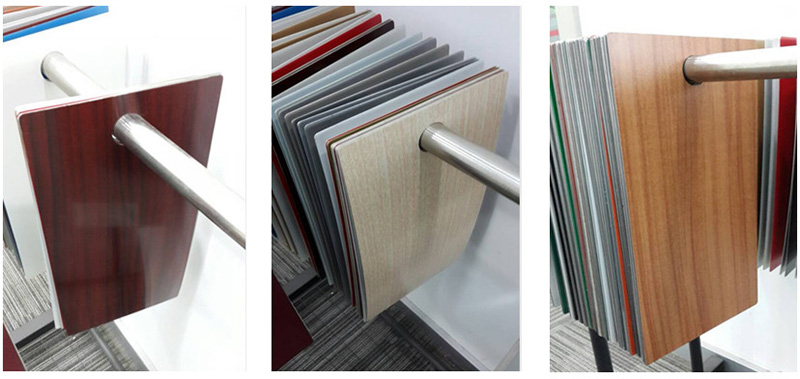

RAL color (solid, metallic, high gloss), Wooden grain, Marble grain, Embossed(stucco&diamond), Brushed, Mirror, etc
|
|
Top Coating Thickness
|
PE ≥18μm, PVDF ≥25μm, as per request
|
|
Back Coating Thickness
|
≥7μm, as per request
|
|
Paint Company
|
PPG Valspar Becker KCC Nippon
|

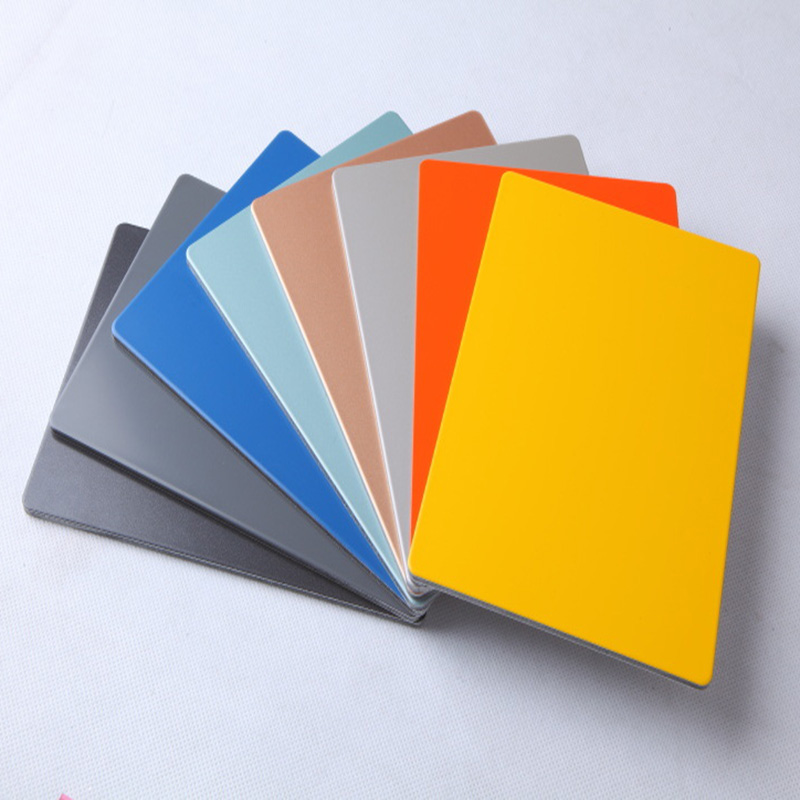

2.Product&Color Chart:
3.Company Profile:
"Alucosuper" is our brand. We are JINGGONG STEEL BUILDING GROUP - WONDERFUL-WALL BUSINESS DIVISION.

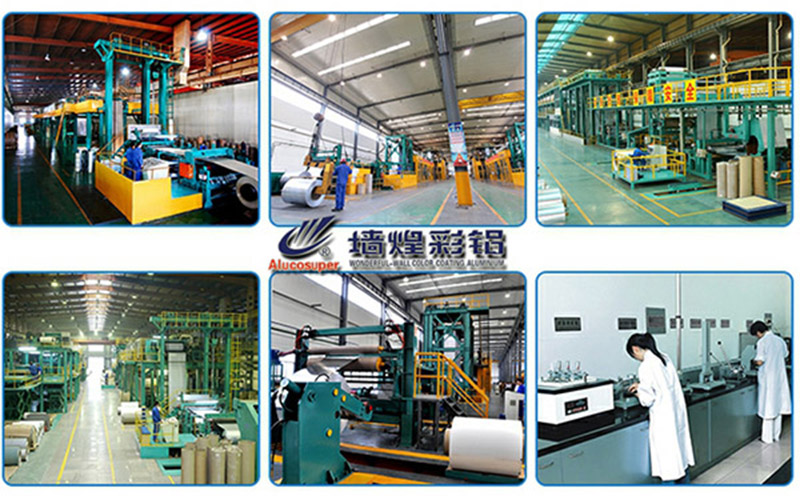

We possess:

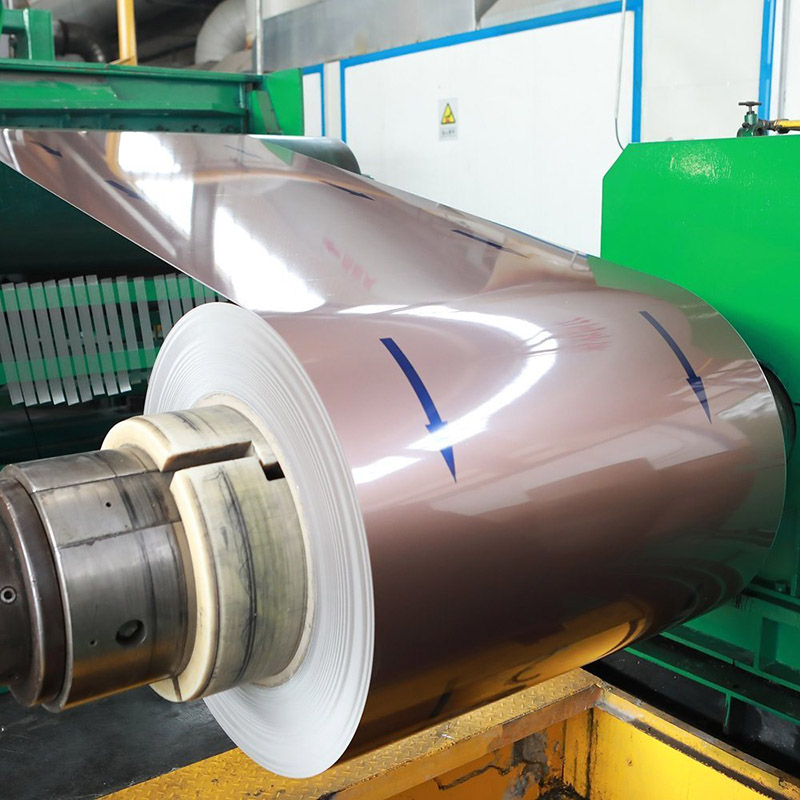

8 sets of production lines for Color coated aluminum sheet,aluminum coil, Color coated steel sheet , steel coil.
1 set of production lines for embossed aluminum sheet/coil (2 style: stucco, diamond) .

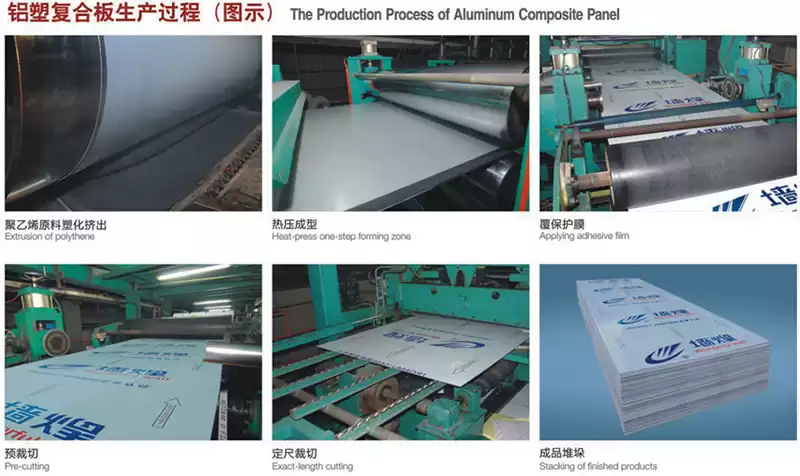

2 sets of production lines for Aluminum composite panel, Steel composite panel.
2 sets of production lines for Solid aluminum sheet
