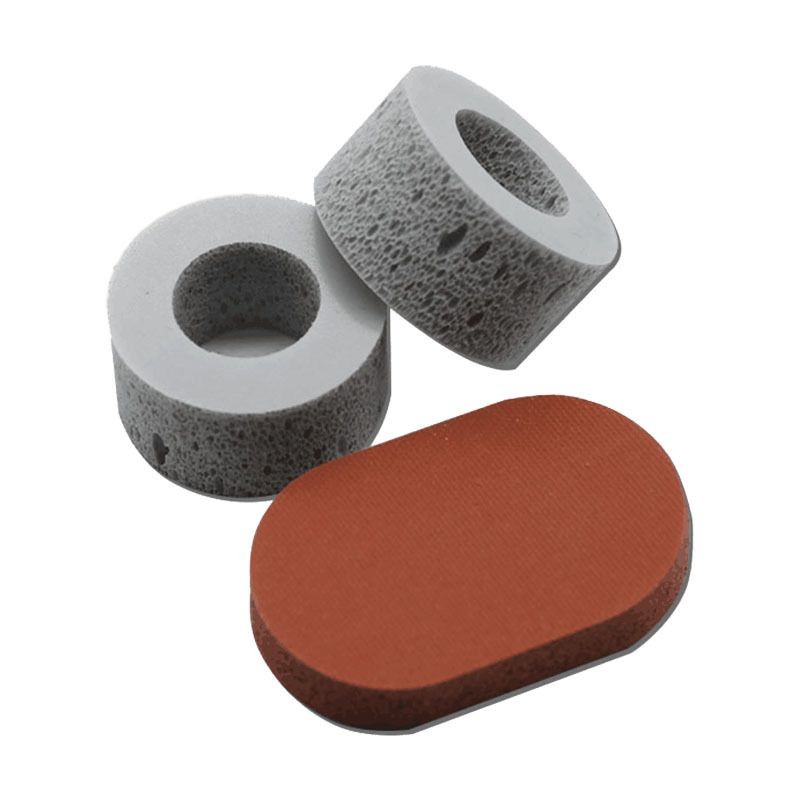

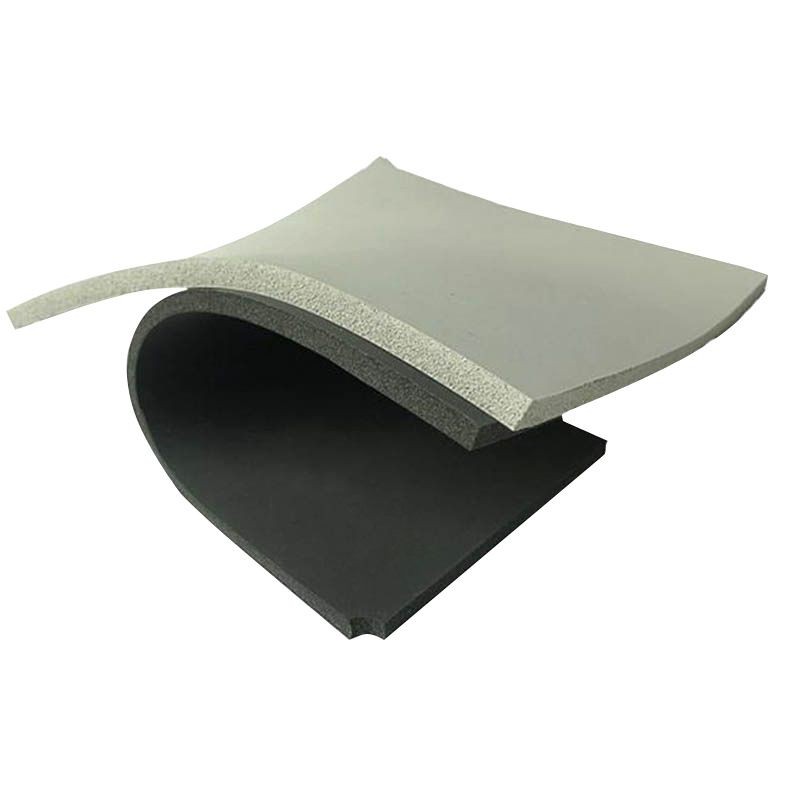

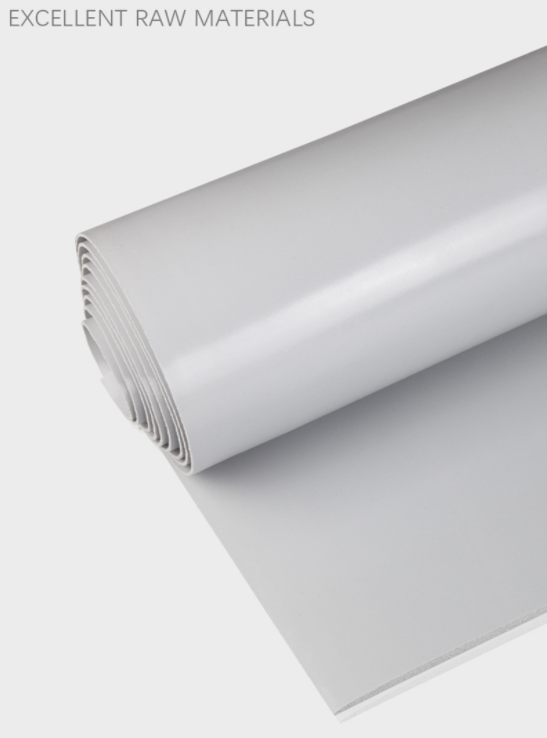

Fireproof High Temperature Battery Insulation Sealing HT800 Silicone Foam
- GMARK manufactures the broadest and deepest selection of sealing solutions on the market. Within these categories, we have thousands of sizes, styles and formulations to choose from.
Product Description

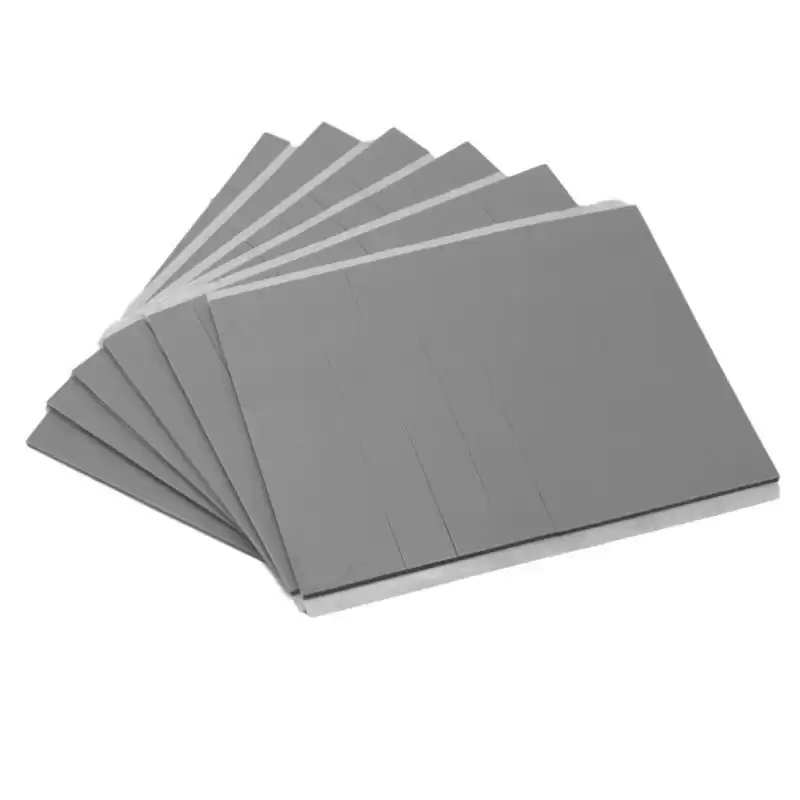

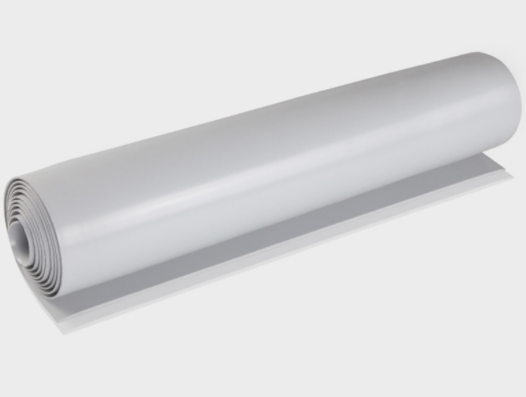

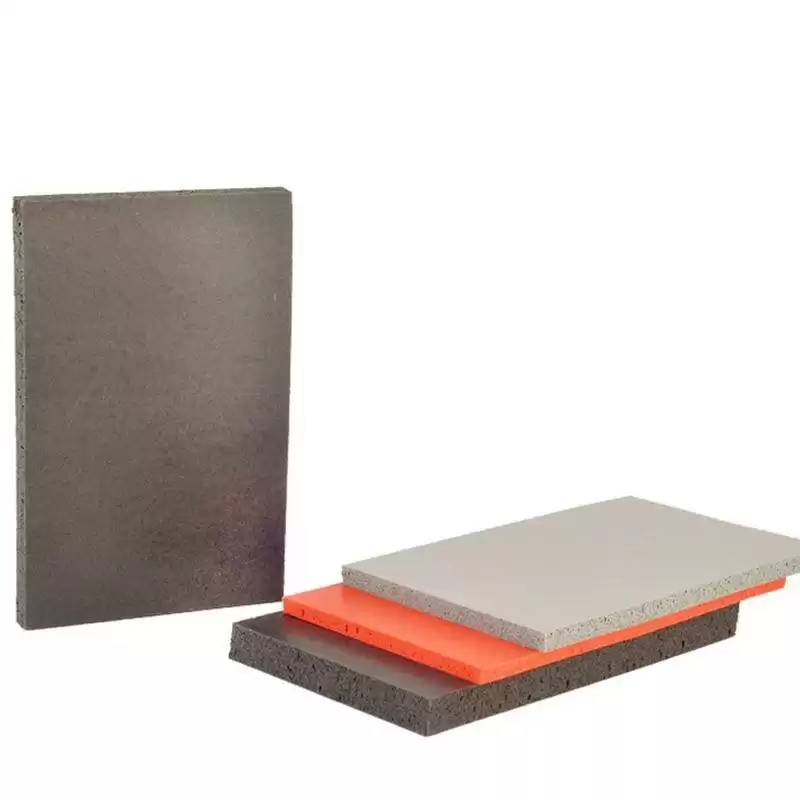

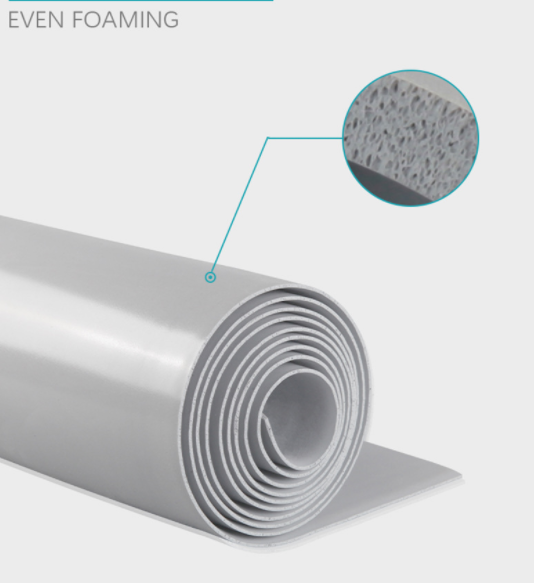

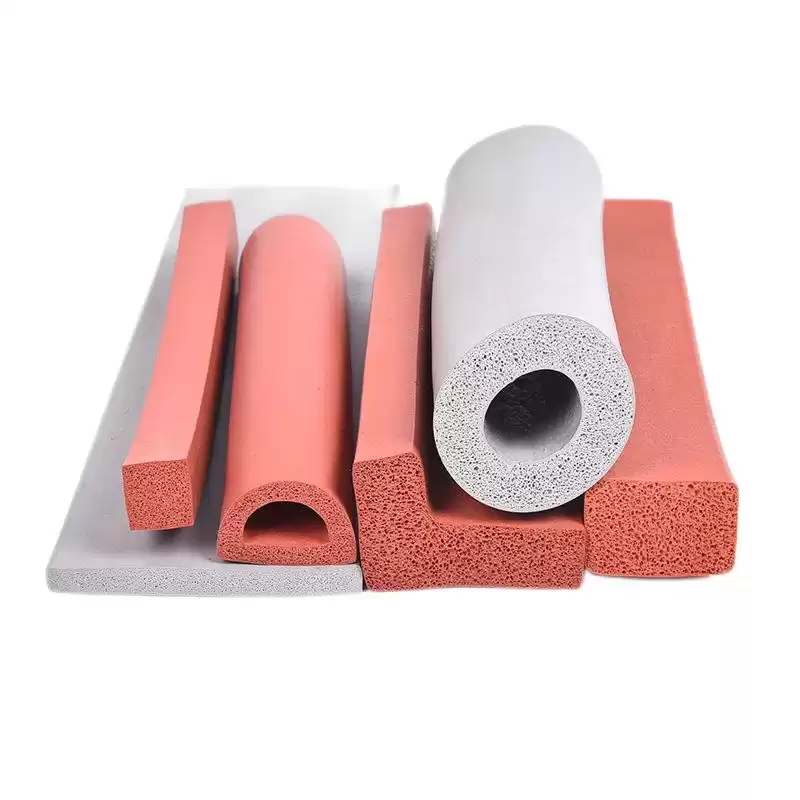

- We specialize in premium materials and grades designed for industrial applications. We stock coils, sheets, rods, strips, films, ropes, rods, tubes and balls in all sizes. We can manufacture custom sizes and shapes, add adhesive and deliver finished products within days.
Product Use
- 1. Pressure resistance, high temperature resistance, wear resistance, fall resistance
- 2. Used for the isolation of electronic equipment and vehicles
- 3. Can Be used to produce a variety of sealing gasket and gasket with strict requirements
- 4. the silicon dioxide produced by short circuit combustion is still an insulator that keeps the electrical equipment working, so it is suitable for making wires, cables, and leads.
Physical Properties
| NO. |
Test Item |
Test Method |
Result |
Conclusion |
| 1 |
Compression Deflection |
ASTM D1056-14Section 17~23 |
12.7psi |
/ |
| 2 |
Compression Set |
With reference to ASTMD1056-14 Section50~56 and client's requirement |
4% |
/ |
| 3 |
Density |
With reference to ASTM D792-13 Method Band client's requirement |
0.385g/cm3 |
/ |
| 4 |
Dielectric Strength |
GB/T 1695-2005 |
5.51kV/mm |
/ |
| 5 |
Low TemperatureResistance Test |
Provided by client |
No damage |
/ |
| 6 |
Tensile Test |
With reference to ASTM D412-16 Method A and client's requirement |
| Tensile Test |
0.651MPa |
| Elongation at Break |
230% |
|
/ |
| 7 |
Volume Resistivity |
GB/T1692-2008 |
4.23x1016Ω·cm |
/ |
| 8 |
Water Absorption |
ASTMD570-98(2018) |
0.68% |
/ |
