Model
|
I2DBC042
|
Wireless dual modes, large capacity of memory
I2DBC042 is able to store barcodes with aggressive capacity of 2MB memory. Adopting 2.4G+BLE two modes ( BLE represents the low power consumption way of Bluetooth), the ultra-low wireless power and radiance will not do harm to human body.
|
Connection with high efficiency, supporting 1D/2D screen scanning.
All the common systems are able to be paired with high efficiency. In addition, featured with pair and scan (2.4G) and connection without password (BT4.0), CT80 supports plug and play to laptop or desktop computer through 2.4G. In terms of mobile phones and tablets, CT80 can pair with them with one-click and without password, supporting scanning 1D/2D barcodes on the screens, mobile phones and computers.
|
Durable and rugged, direct transmission of Chinese characters.
Ten millions of mechanical life of the key enables CT80 to be more durable and rugged.
It can also realize the direct transmission of Chinese characters in word document. (The Chinese characters in 2D barcodes can be directly scanned and transmitted to the document)
|
|
Connection
|
２.４G＋Single pattern BLE
|
|
Light source
|
CCD + white light ( illuminate usage)
|
|
Scan mode
|
CMOS
|
|
Bluetooth/2.4g cover range
|
10m visual range
|
|
Bluetooth
|
Single pattern low consumption Bluetooth
|
|
Flash
|
2MB
|
|

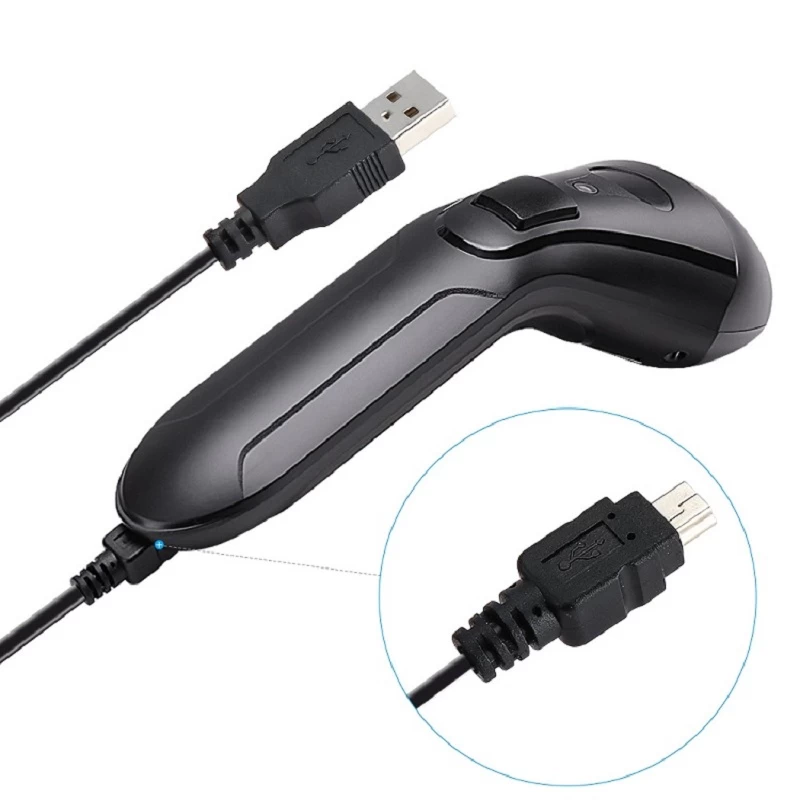

Interface
|
Mini USB
|
|
Communication Transmission
|
2.4G+BLE+Wired
|
|
Auto-scanning
|
None
|
|
Decode Frequency/Speed
|
30 frames/s
|
|
Resolution/Range of scan distance/Print contrast ratio
|
4mil/4~30cm/30%，
|
|
Cylinder Horizontal scan
|
Diameter 35mm
|
|
Decode Angle
|
Roll 30°, Pitch 75°, Yaw 65°
|
|
Support System
|
Windows, Mac OS, Android, iOS
|
|
Physical Parameters
|
|
Size
|
185mm*70mm*58mm
|
|
Color
|
Black
|
|
Power Supply/ Accessory
|
Built-in chargeable Li-ion battery
|
|
Battery Capacity
|
1800mAh
|
|
Weight
|
128±5g(including battery)
|
|
<style type="text/css">.wpb_animate_when_almost_visible{opacity:1}</style>
|
|
|
Features
|
|
Drop specification
|
Free fall of 1.2M
|
|
Dust resistance
|
Sealed, prevent the dust from entering
|
|
Screen-scanning Ability
|
Support to scan LCD
|
|
1D Barcode
|
UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5,
|
|
Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
|
|
2D Barcode
|
PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin,etc.
|
|
Environmental Parameters
|
|
Operating Temperature:
|
0°C to 50°C
|
|
Storage Temperature:
|
-20°C to 60°C
|
|
Humidity:
|
0% to 95% relative humidity ,non-condensing
|
|
Ambient Light Immunity
|
10.000 Lux.
|
