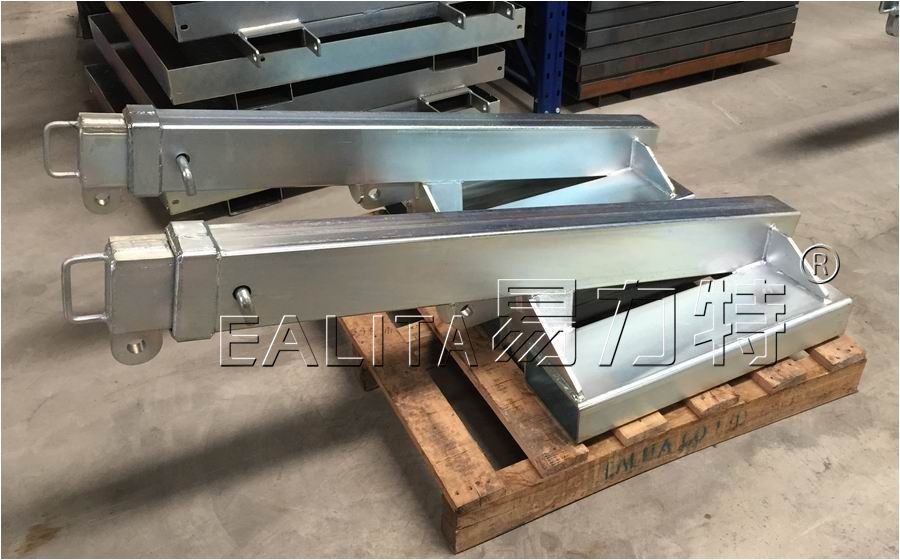

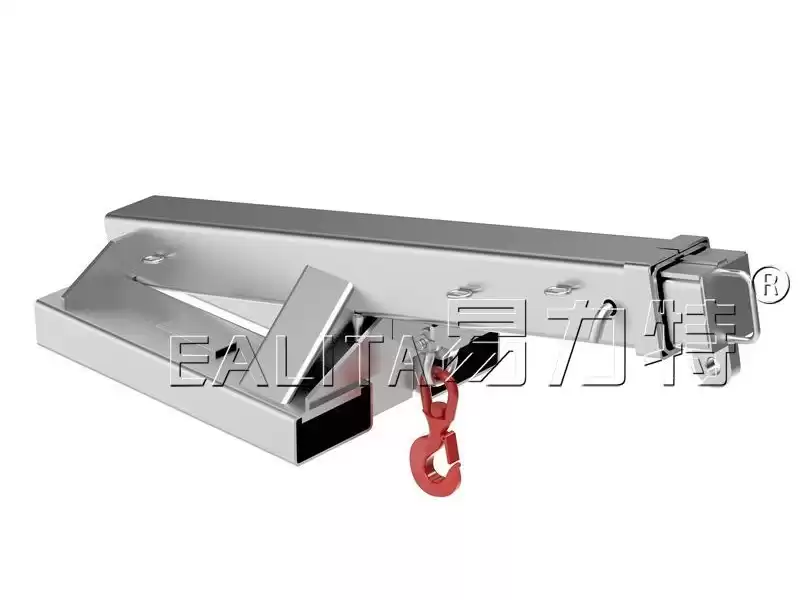

The type F-FJA470 4700kg Telescopic Extension Jib attachment is designed as an affordable general purpose Jib able to manoeuvre in confined spaces, with a 2.365 metre reach when fully extended.
- This slip-on Forklift attachment is held to the Forklift by a safety chain.
- The Jibs overall length when closed is 1.5 metres. The standard finish on the type FJA-470 Extension Jib is Zinc Plated.
Specifications
• Code: 03.01.04.0042
• Working Load Limit (WLL): 4700kg Max.
• Unit Weight: 140kg
• Load Centre: 790mm
• Pocket Size: 185 x 65
• Pocket Centres: 350 mm
• Horizontal C of G: 600mm
• Vertical C of G: 120mm
