Fixed solar panel tilt mount kit
Fixed triangle frame system adapts to concrete flat rooftop, which can use expansion bolt on concrete bolck, and then install on concrete flat roof without damage the roof.

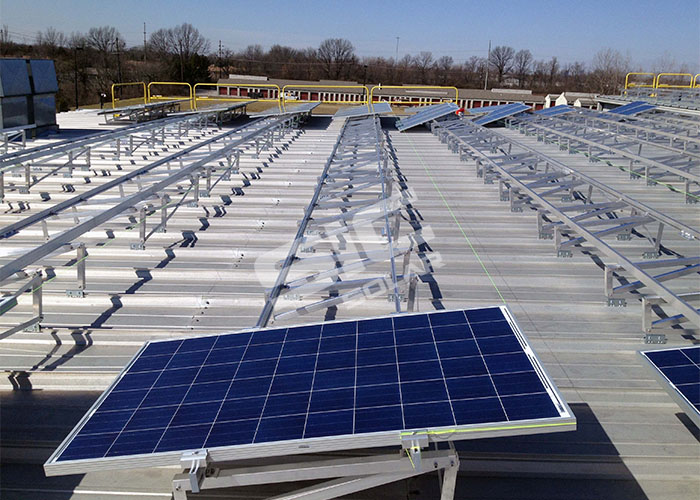

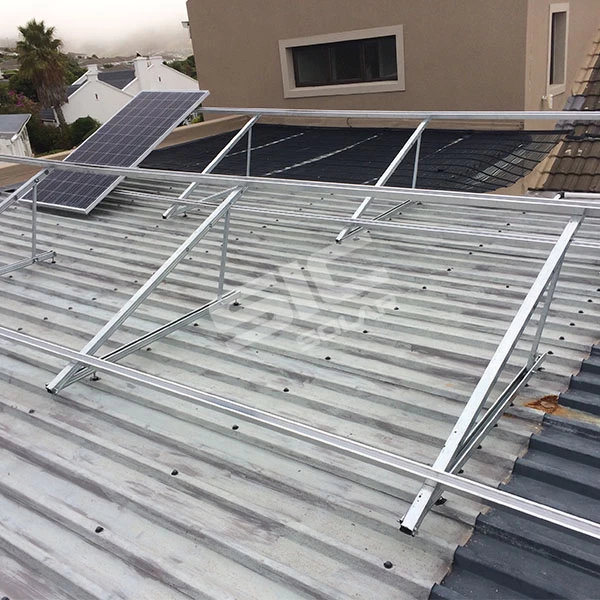

It also can used on metal rooftop, useing metal clamp to connect triangle frame to the roof.

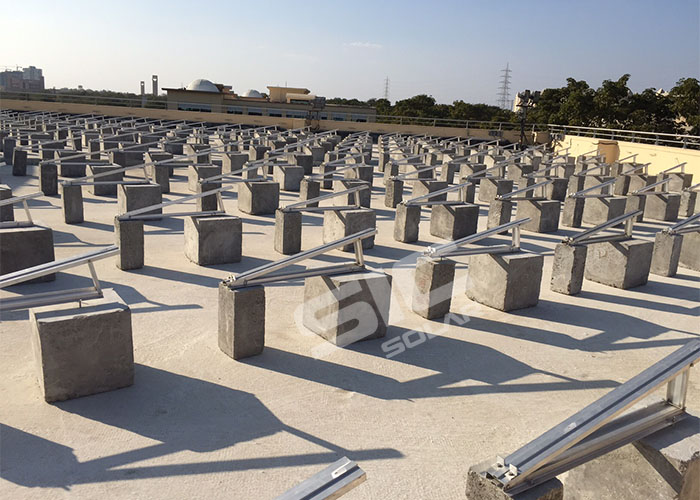

Expansion bolt with concrete bolck solution
Metal clamp solution
Category: Flat roof mounting
|
Installation Site
|
Roof or Ground
|
|
Wind Load
|
<60M/S
|
|
Snow Load
|
<1.4KN/M2
|
|
Material
|
Aluminum 6005-T5 & Stainless Steel 304
|
|
Color
|
Natural or Customized
|
|
Anticorrosive
|
Anodized aluminum & stainless steel
|
|
Warranty
|
10 years and 25 years service time
|

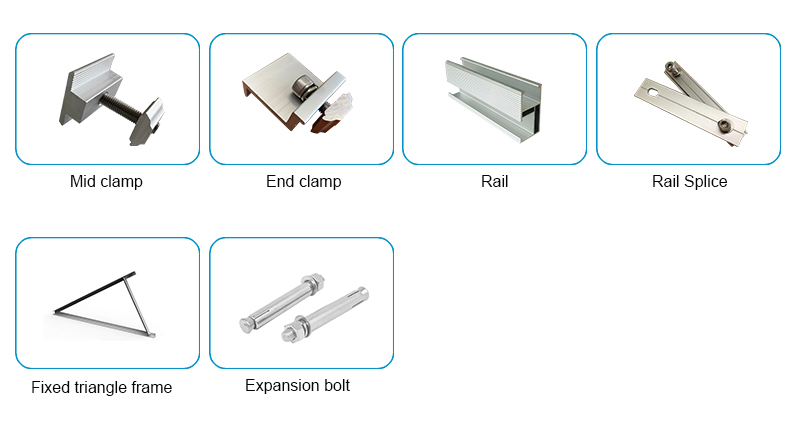

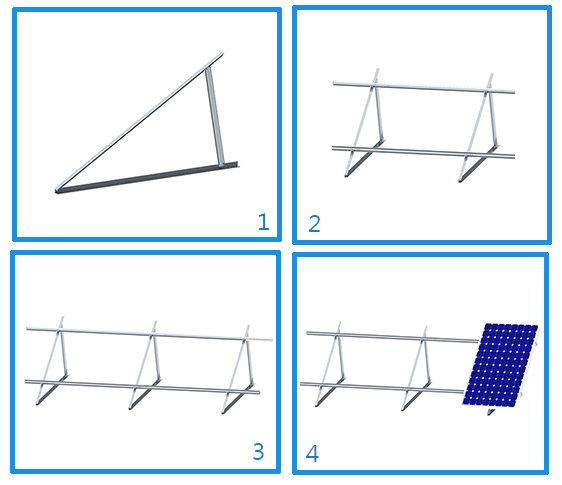

1. Put fixed triangle frame on the flat surface.
2. Fix the rail on the fixed triangle frame.
3. Fix the mid clamp between panels, end clamp on the panel edge.
4. Finished.
☆ Easy to use - Highly pre-assembled components make the installation more quickly and easily.
☆ Safety - The whole structure have been strictly tested to stand up to the extreme weather
☆ High Quality - Structure have been strictly controlled to ensure 10 years warranty & 25 Years lifetime.
Related certificate
Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.Aluminum quality certificate -- AL6005-T5 composition list
Triangle frames could be packed into cartons with plywood pallet. Steel pallet could be offered if needed.
