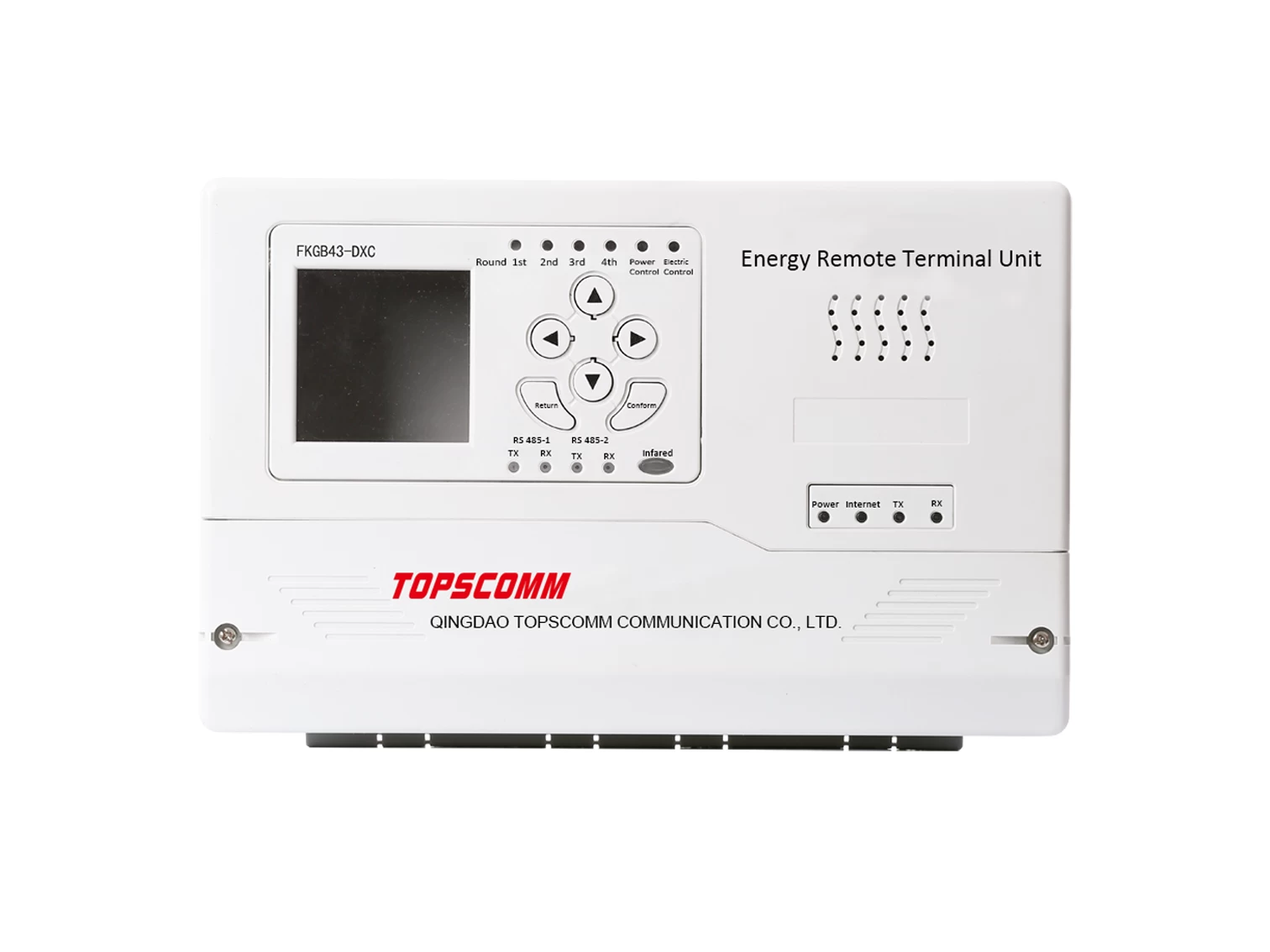

FKGB43-DXC Private Transformer Type Energy Remote Terminal Unit

FKGB43-DXC Energy Remote Terminal Unit is a private transformer type intelligent data acquisition terminal, it is integrated with telemetering, telesignalization, data statistics, load management and wireless communication functions etc., is widely used in smart AMR/AMI and power grid projects.



FKGB43-DXC Energy Remote Terminal Unit is embedded with Topscomm self-owned micro-operation system, it is featured with massive memory capacity, high reliability & stability, and real-time online properties. Combing with its load monitoring/controlling/ management function, the device has realized orderly power consumption and off-peak power consumption purpose, has greatly helped the utilities to settle the energy demand management problems, and relieved the power emergency situations. This product has been widely used in the urban, rural and large enterprises owned  power projects.

Installation Location: Connection cabinet or distribution cabinet for private transformer owned power users.


Power supply
220V±20%
Accuracy
Active: 0.5   Reactive 1.0
Power consumption
≤10W, 15VA
Communication

GPRS/3G/4G/CDMA, PLC etc. replaceable communication modules;

Ethernet, RS232/RS 485, Infrared etc. communication port

Communication protocol
Q/GDW 1376.1-2013, Q/GDW 1376.3-2013; DLMS/COSEM
Startng time
<5s
Service life
>10 years
Operation temperature
-40℃~+85℃
Humidity
≤100%
Dimension
305mm*195mm*90mm
