Product Features
This is a special-purpose tape. It is anti-abrasion and flame retardant. In case of fire, it can isolate the rest of the airplane and prevent the fire from spreading. It meets the requirements of flame retardant standards for aircraft cabins. It can be quickly and evenly bonded to the surface of cabin panels.
TDS
|
Physical Properties
|
Standard
|
Metric
|
Test Method
|
|
Reinforcement
|
Fiberglass Cloth
|
|
Adhesive
|
Acrylic Pressure-Sensitive Adhesive
|
|
Backing
|
Fiberglass Cloth
|
|
Color
|
White and Blue
|
|
Total Thickness
|
7.8 mils
|
0.20 mm
|
ASTM D-3652
|
GB/T7125
|
|
Peel Adhesion 90°
|
50 oz/in
|
14 N/25mm
|
ASTM D-3330
|
GB/T2792
|
|
Holding Power
|
≥10 h
|
≥10 h
|
ASTM D-3654
|
GB/T4851
|
|
Tensile strength
|
90 lbs/in
|
400 N/25mm
|
ASTM D-3759
|
GB/T7753
|
|
Elongation at break
|
5-7%
|
5-7%
|
ASTM D-3759
|
GB/T7753
|
|
Service Tem. - Mini
|
23℉
|
-5℃
|
BC/BD-220SE
|
BC/BD-220SE
|
|
Service Tem. - Max
|
212℉
|
100℃
|
DHG-9055A
|
DHG-9055A
|
Product Application
It is mainly designed for the application of flame retardant liquid cabin of cargo aircraft and in sealing aircraft cargo panels and its relavant maintenance, repair and operating (MRO) in aviation.

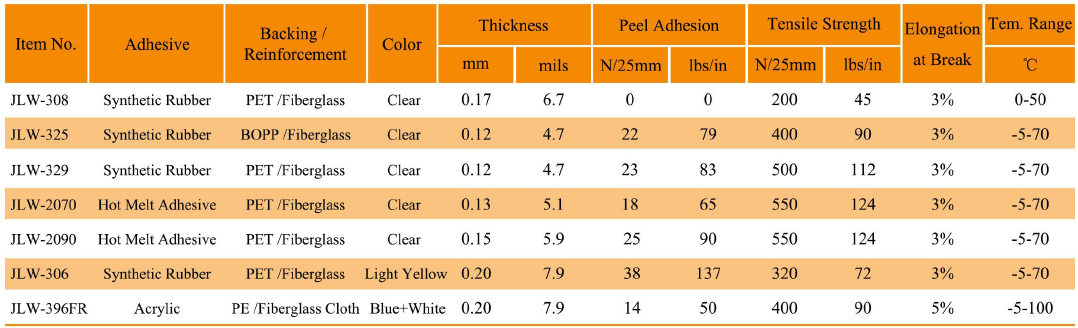

Other Related Products
· JLW-308: Will be sticky when it is heated; Good wear resistance, applied in the internal fastening of high voltage cable etc.
· JLW-325, JLW-329, JLW-306: Heavy box closure, splicing, general bundling and reinforcing, sealing edge of special woven bag sealing edge, metal coil closure, pipeline bundling etc.
· JLW-2070: Heavy box closure, palletizing, strapping, bundling and reinforcing etc.
· JLW-396FR: Fiberglass cloth tape, is made of flame retardant acrylic adhesive, which provide excellent flame retardant properties ; Mainly designed for the application of aircraft cargo and other maintenance, repair and operating (MRO); It is normally applied in sealing aircraft cargo panels.
