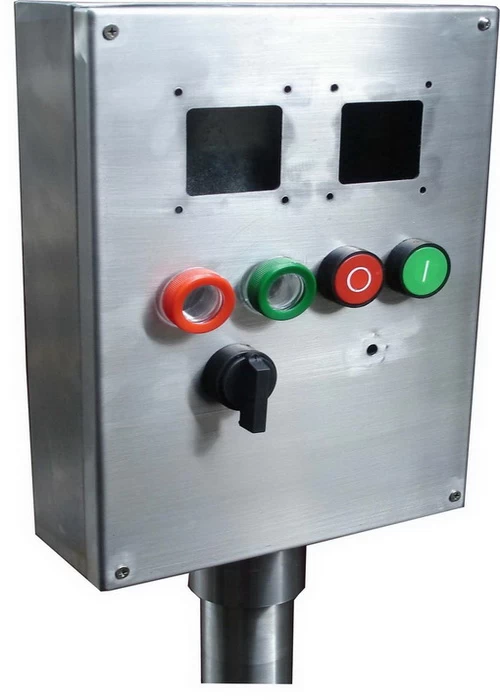

Flameproof Structure Sheet Metal Electrical Cabinets Custom
The scope of application
1 suitable for explosive gas environment in zone 1 and zone 2 dangerous places;
2 applies to IIA, IIB, IIC level in explosive gas environment;
3 suitable for combustible dust environment 20 zone and 21 zone and 22 zone;
4 apply to the temperature required for T1 T6 environment;
5 applied in the petrochemical, chemical, brewing, pharmaceutical, textile, printing and dyeing, paint, military facilities and other explosive dangerous environment;
Technical parameters
Explosion proof mark: ExedIIBT4/T5/T6, ExedIICT4/T5/T6, DIP A20 TA, T4/T5/T6;
Rated voltage: AC220/380V, non standard voltage: 12V/24V/36V/127V/660V;
Button number: A, signal lamp: D, switch: K, instrument: B,
Protection grade: IP54/IP55/IP65;
Thread specification: DN15-DN100/G1/2-G4 "
The introduction of line specifications: diameter 6mm-80mm; pinout specifications: diameter 6mm-80mm;
Introduce derivative direction: on the mobility, lower in and out (not restricted according to customer requirements)
