Applications:
Flammable Fuel Tanker Truck 35000 L, also called flammable oil tanker trailer, flammable diesel tanker trailer, flammable gasoline tanker trailer . As premium china fuel tanker semitrailer manufacturer, we aim at supply reliable oil tanker semitrailer for all africa customers.
** 30 years experiences on manufacturing fuel tanker semitrailer and competitive price.
** Customized fuel tanker semitrailer on customer's requirement.
** Strict quality assurance on oil tanker semitrailer production.
** 12 months guarantee for all fuel tanker semitrailer
** SGS, CONTECNA, BV inspection for all our fuel tanker semitrailer
** 12 months spare parts free of charge , for all the petrol tanker semitrailer.
Key Features:
---- 30 years on semitrailer manufacturing, germany benz technology assurance.
---- All genuine spare parts , 20,000 km maintenance
---- 12 months after sale service guarantee
---- Service for more than 100 countries.
---- Patented design on semitrailer, reliable and
Specifications:
Specifications:

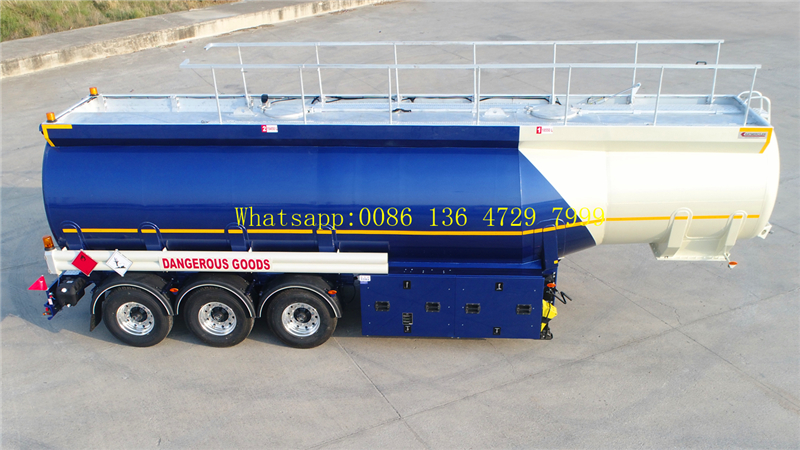

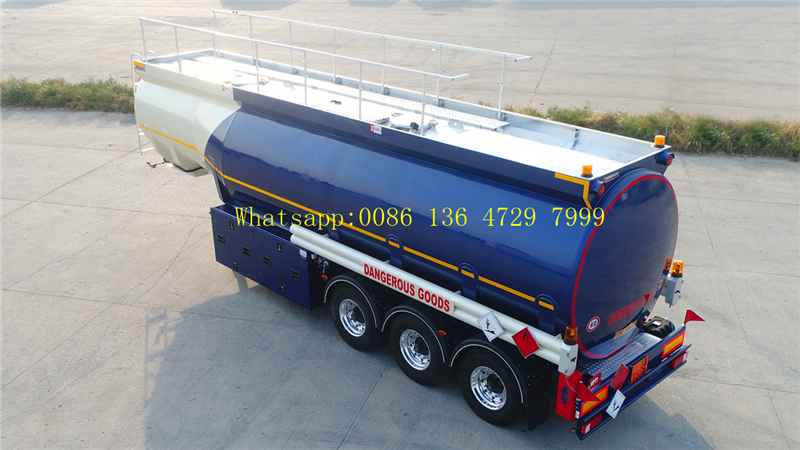

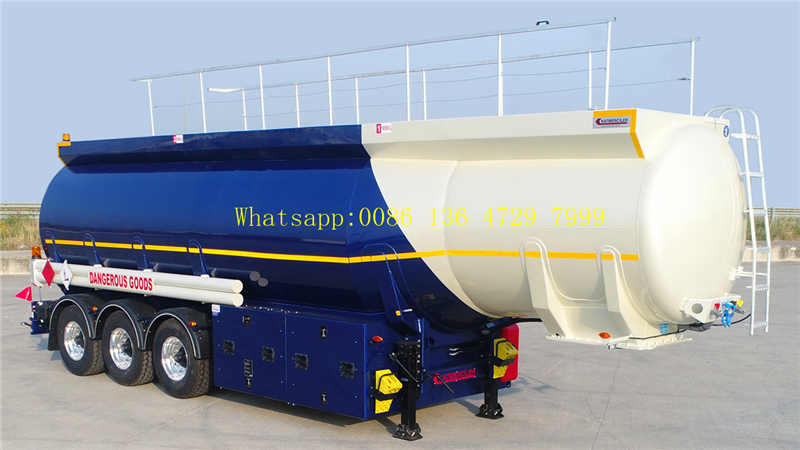

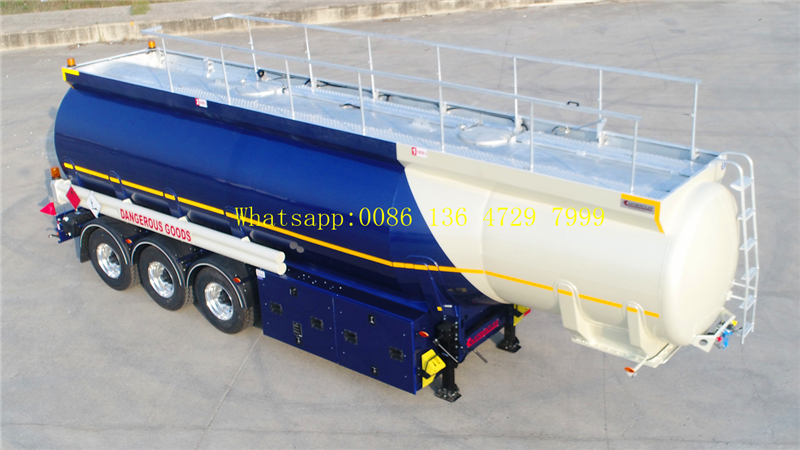

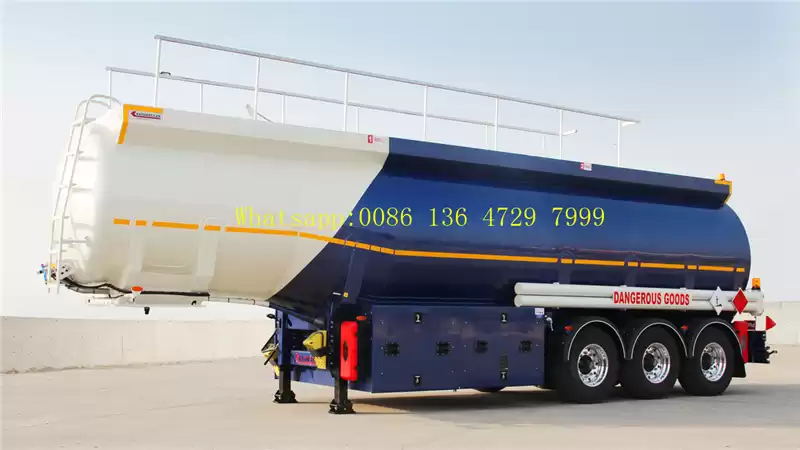

5 Compartments Aluminum Tank Semi Trailer , Petroleum Tank Trailers 50000 Liters
| Shape |
Round Or Customized |
| Dimension |
12500mm*2490mm*3990mm or customized |
| Tanker Body thickness |
5mm |
| Wave plate |
4mm |
| Volume(m3) |
50M3 |
| Tare weight |
About 11T |
| Material |
Carbon steel |
| Compartment |
5 |
| Manhole |
Carbon steel manhole cover, 500mm |
| Bottom Valve |
5 |
| Ball valve |
5 |
| Main Beams |
Welding design or Special design I beam, connected by bolts and nuts
Q345 carbon steel material
|
| Axle |
3 axles, 13Tons FUWA brand |
| Landing Gear |
JOST (D200T) 28T |
| King Pin |
JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension |
Mechanical suspension |
| Leaf Spring |
90mm(W)*16mm(T)*10 pcs |
| Pneumatic Braking System |
6 air chamber, 3 axles synchronization valve (Chinese brand) |
| Tire |
12.00R22.5*12Pcs |
| Accessories |
One standard tool box/one valve box |
| Fender material |
Carbon steel |
| Voltage |
24V |
We are premium Professional 45000 Liters Fuel Tanker Semi Trailer With 5 Compartments ,we
have the large rolling and welding equipments.Paying attention to the
details of producing, we undertake a variety of carbon steel tanker
trailer, stainless steel tanker trailer, aluminum tanker trailer, mirror
aluminum tanker trailer and all kinds of liquid tank trailers based on
the custom requirements from Africa, South American and South east
country
Premium oil tanker semitrailer manufacturer in china, can customized 2 axle oil tanker semitrailer, 3 axle oil tanker semitrailer, 4 axle fuel tanker semitrailer.
