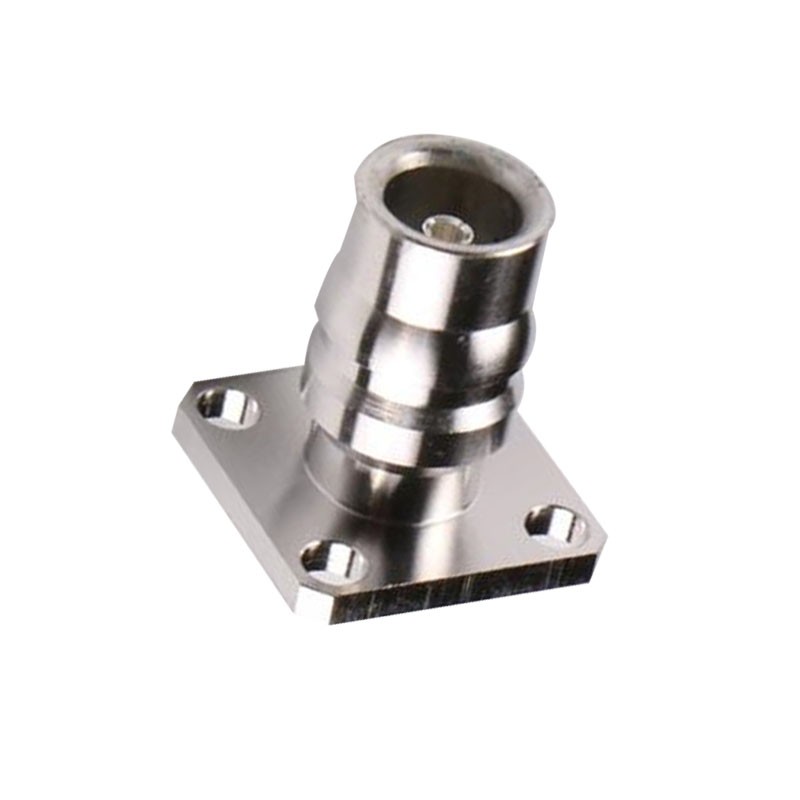

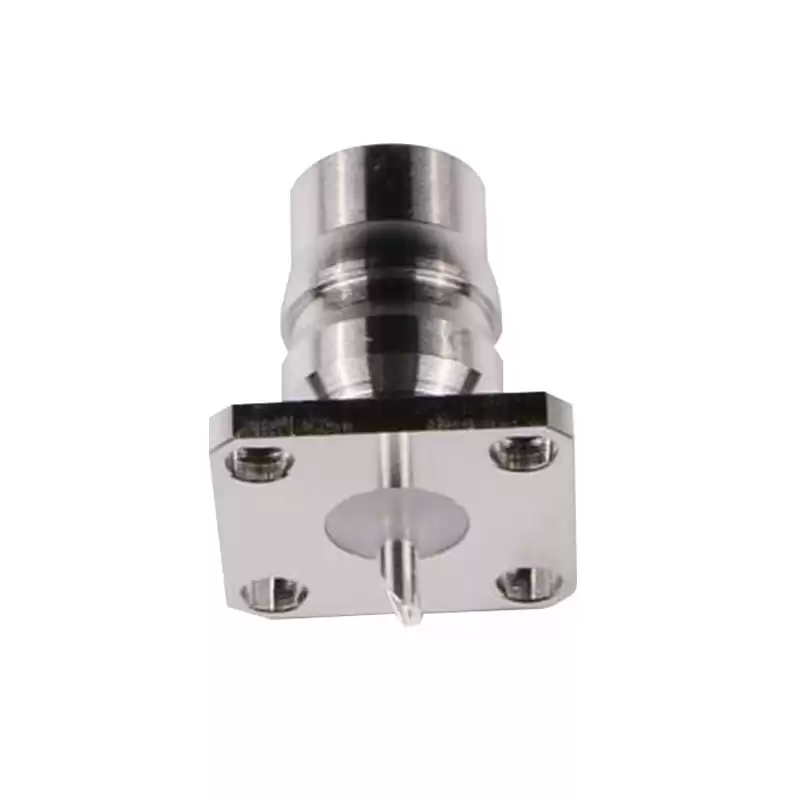

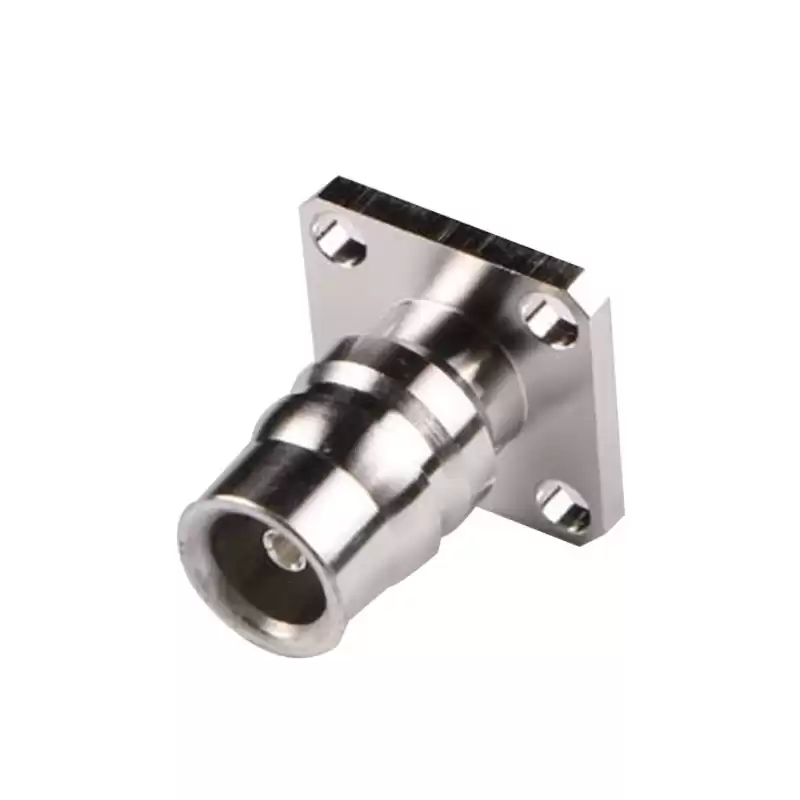

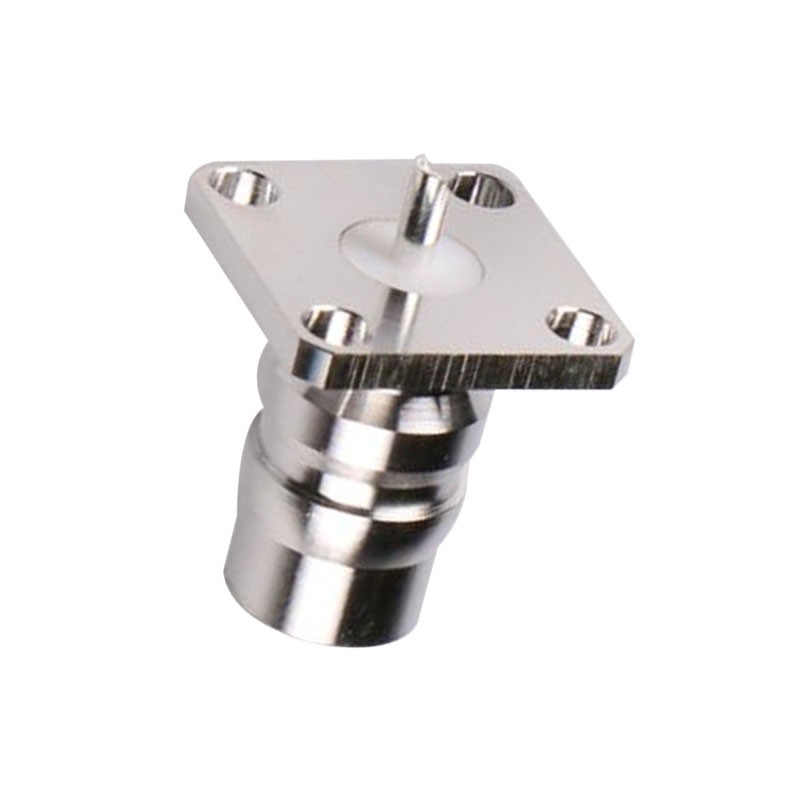

Flange 4 Hole RF Coaxial QN Female Jack Connector for Board and Cable
QN connector is a quick disconnect version of the N-Type connector with similar internal construction, which enables fast and easy matings with minimum space requirements;The innovative alternative to N-Type connectors, the QN line is perfect for indoor and outdoor applications including base stations and cellular installations. These connectors have the same benefits as threaded connectors and can be terminated to larger cables and are designed to handle higher power requirements.
Specifications
| ELECTRICAL DATA |
|
| Impedance |
50 Ohm |
| Frequency Range |
DC - 11 GHz |
| Voltage Rating |
500 Volts RMS Continuous |
| Dielectric Withstanding Voltage |
2500 VRMS Max |
| VSWR (Return Loss) |
|
| DC - 3 GHz |
1.052 (-32 dB) Max |
| 3 - 6 GHz |
1.12 (-25 dB) Max |
| 6 - 11 GHz |
1.22 (-20 dB) Max |
| Insulation Resistance |
5000 MΩ Min |
| Center Contact Resistance |
1.5 mΩ Max |
| Outer Contact Resistance |
1.5 mΩ Max |
| RF Leakage |
-90 dB Max (DC - 3 GHz) |
| Insertion Loss |
.03 √(f(GHz)) dB Max |
| Power Handling |
300 W @ 2.5 GHz @ 25ºC |
| MECHANICAL DATA |
|
| Mating Cycles |
100 Min |
| Coupling Mechanism |
Push-Pull |
| Interface Specification |
Quick Lock Formula - QN |
| Engagement Force |
6.75 lbs (30 N) Typ |
| Disengagement Force |
6.75 lbs (30 N) Type |
| ENVIRONMENTAL DATA |
|
| Temperature Range |
−40°C to +125°C |
| MATERIAL DATA |
|
| Bodies |
Brass--ternary alloy plating |
| Pin contacts |
Brass--Au/Ag plating |
| Socket contacts |
Phosphor bronze / Beryllium copper--Ag plated |
| Crimp ferrules |
Copper--ternary alloy plating |
| Insulator |
PTFE |
| Gaskets |
Silicone rubber |
Applications
- Data Communications
- Base Stations
- Switching Equipment
- Routers
